Home >> Mercury >> 1994 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Master Window Control Switch/Left Front Door Lock Switch

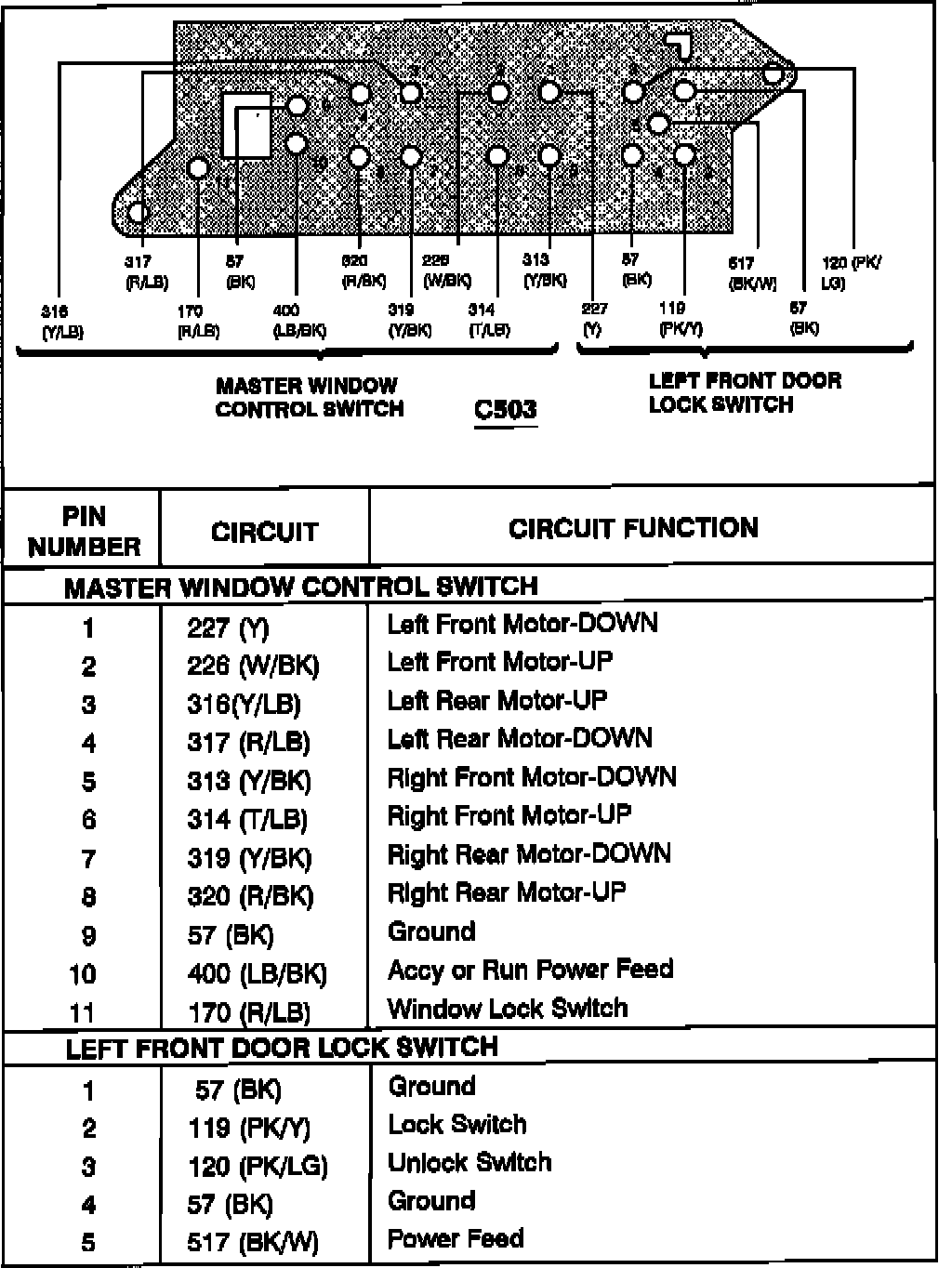

Master Window Control Switch/Left Front Door Lock Switch

Master Window Control/Left Front Door Lock Switch:
