4-Door

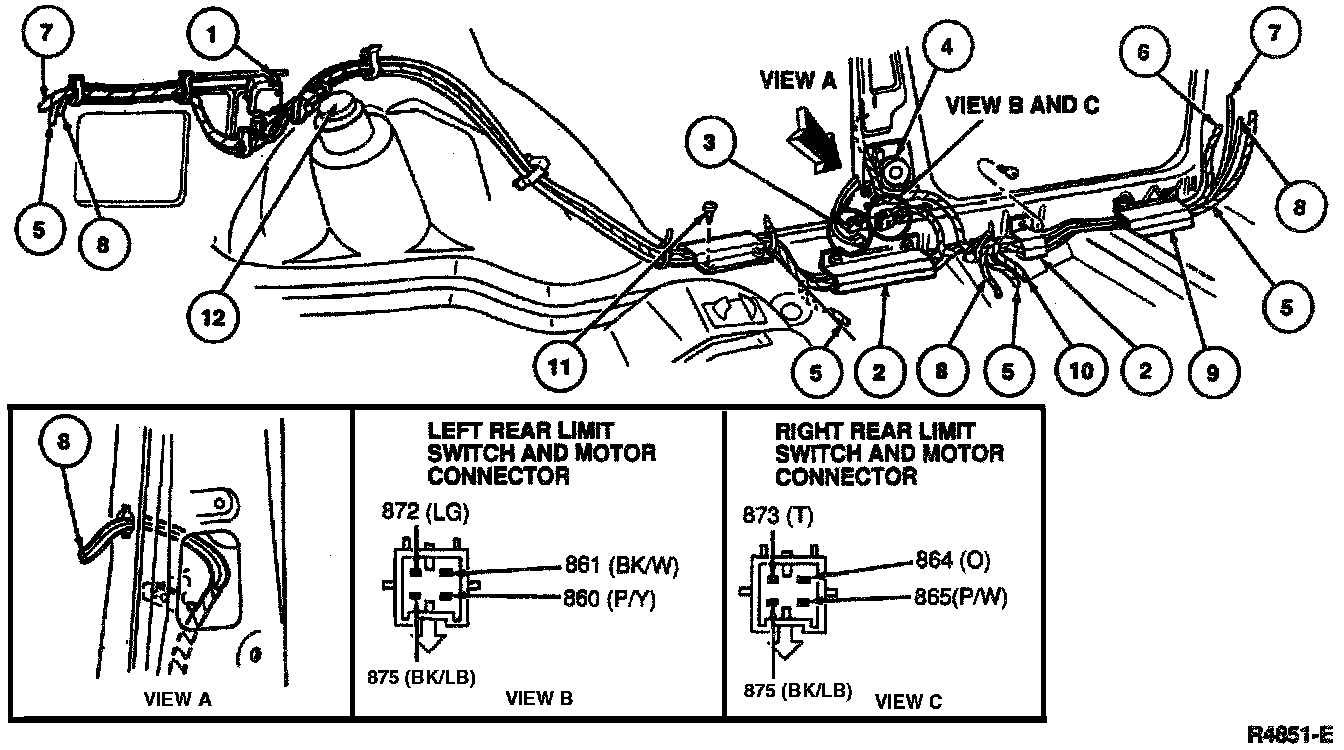

Wiring Harness:

Item Part Number Description

1 Inertia Fuel Shutoff Switch
2 14A099 Wiring Shield
3 Rear Limit Switch and Motor
Connector
4 Front Safety Belt Motor and Track
5 14405 Rear Lamp Wiring
6 14A684 outside Mirror Control Wiring
7 17A409 Rear Window Wiper/Washer Wire
8 14334 Courtesy or Interior Lamp Wiring
9 104A50-B Body Rocker Panel Wire Shield
10 14A464 Repair Connector and Wire
11 381801-S36BX Screw
12 To LH Rear Speaker

1. Disconnect the limit switch wiring connector from the body wiring connector. The A-pillar limit switch connector is in the lower cowl side trim panel area. The B-pillar limit switch connector is in the lower B-pillar area near the motor.
2. Connect a volt-ohmmeter to the connector terminals of the limit switch.
3. Push the switch plunger in slightly and very gently wiggle it side-to-side in a clockwise motion.
4. There should be no break in continuity during this procedure. If there is a break in continuity, re-test and verify break in continuity. If there is a break in continuity again, replace the switch.
