2-Door

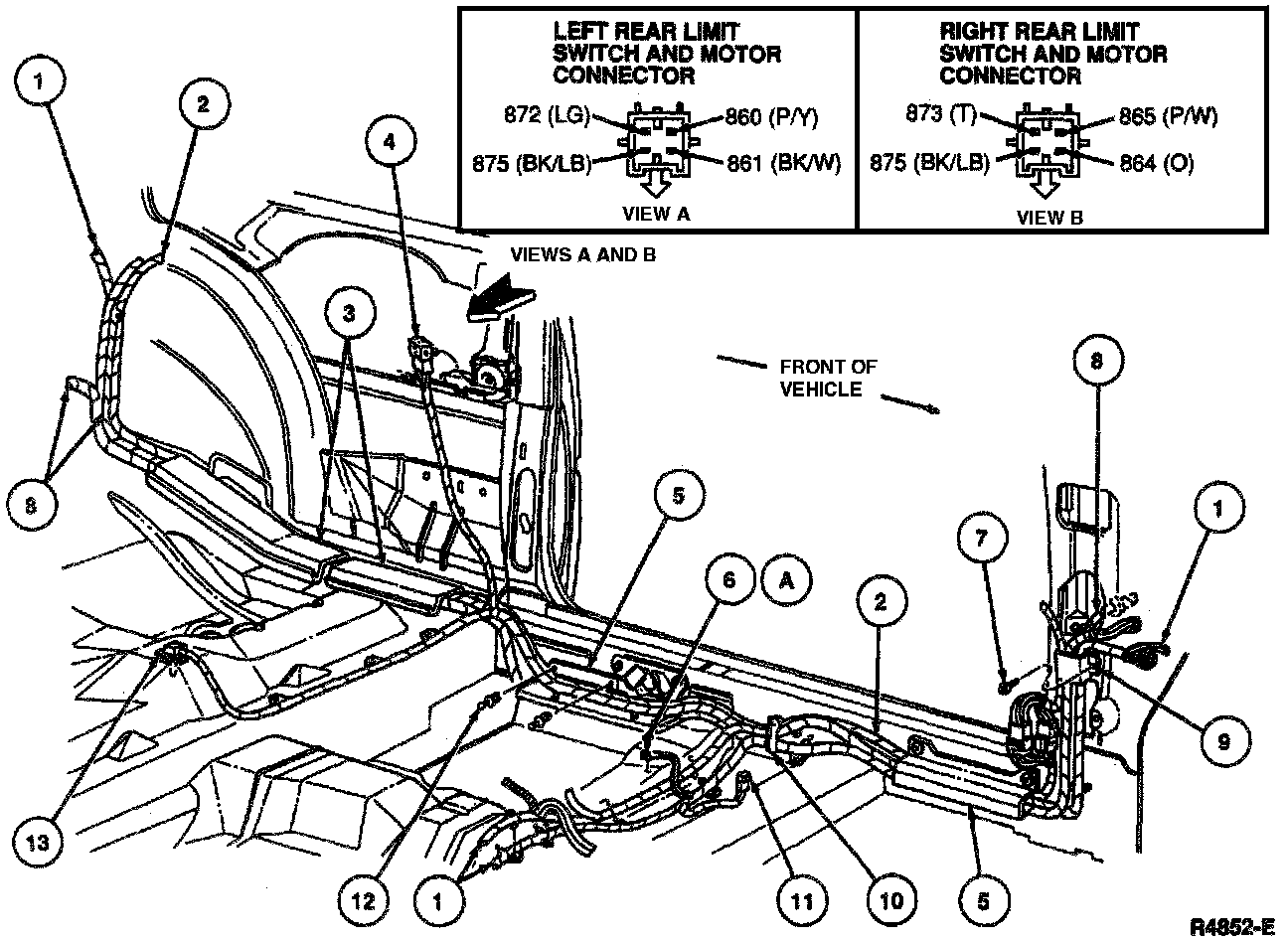

Wiring Harness:

Item Part Number Description

1 14405 Rear Lamp Wiring
2 19B113 Radio Amplifier Wiring
3 Sound Deadener
4 To Motor and Limit Switch
5 104A51 Body Rocker Panel Wire Shield
6A N801846 Screw
7 N802141-S2 Screw
8 14A488 Window Regulator Safety Relay Switch
Wiring
9 14A099 Wiring Shield
10 14A163 Wiring Harness Retainer
11 14A488 Wiring to Safety Belt
12 N803362-S Rivet (2 Req'd)
13 To Fuel Tank
A Tighten to 4.6-6 N-m (3-4 Lb-Ft)

1. Disconnect the limit switch wiring connector from the body wiring connector. The A-pillar limit switch connector is in the lower cowl side trim panel area. The B-pillar limit switch connector is in the lower B-pillar area near the motor.
2. Connect a volt-ohmmeter to the connector terminals of the limit switch.
3. Push the switch plunger in slightly and very gently wiggle it side-to-side in a clockwise motion.
4. There should be no break in continuity during this procedure. If there is a break in continuity, re-test and verify break in continuity. If there is a break in continuity again, replace the switch.
