4-Door

Removal
1. Remove safety belt anchor-to-sill cover.
2. Remove bolt and washer.
3. Slip finger behind D-ring cover and push bottom of cover toward center of vehicle to dislodge it. Lift to remove cover and attaching bolt.
4. Remove B-pillar upper trim panel attaching screw and the panel.
5. Remove front and rear sill retaining screws and one screw from B-pillar lower trim panel. Remove lower trim panel.
6. Remove safety belt retractor bolt and outboard safety belt assembly from vehicle.





Installation

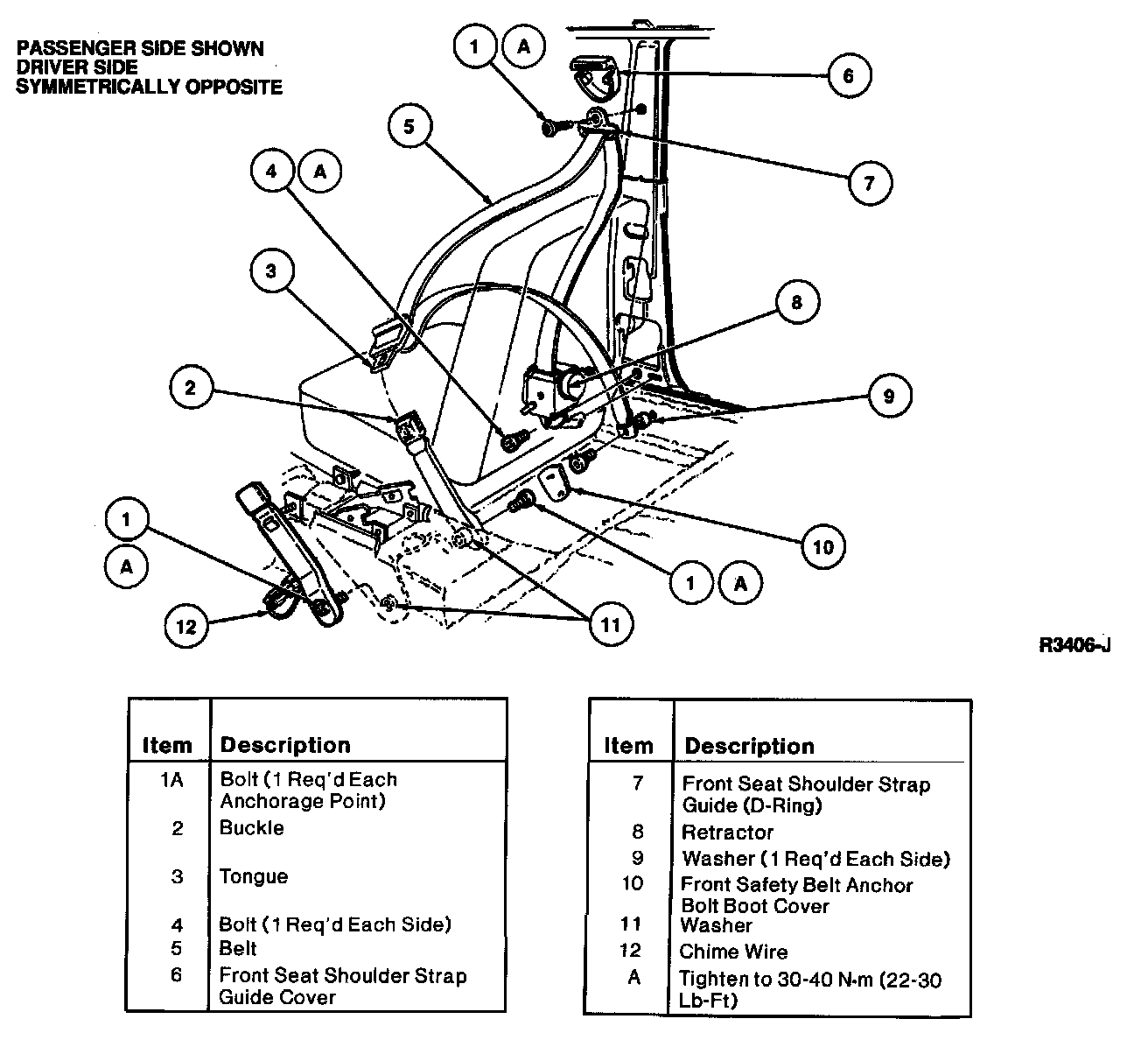

1. To install, reverse Removal procedure. Position belts as shown.
2. Tighten all retaining bolts to 30-40 Nm (22-30 lb-ft). Test safety belt operation several times to ensure proper functioning of retractor. Make sure webbing is not twisted.
3. Check the restraint system for proper operation.
