Electrical Specifications

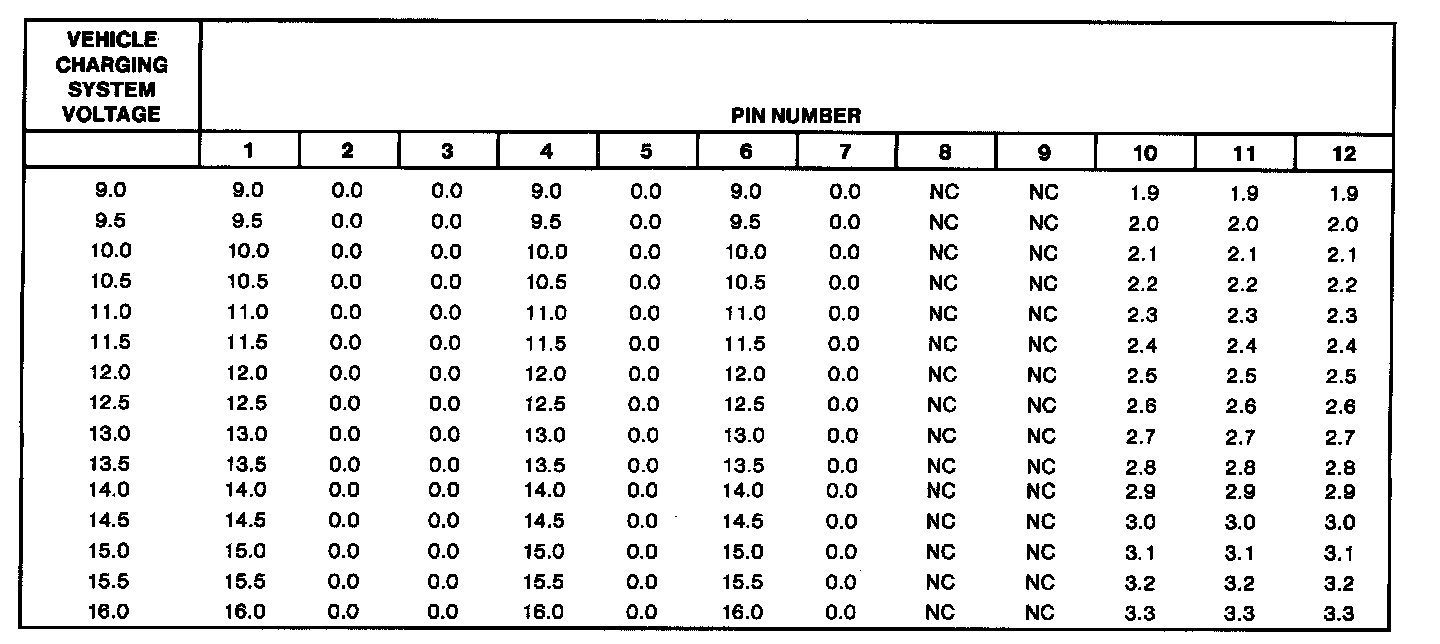

Part 1 Of 2:

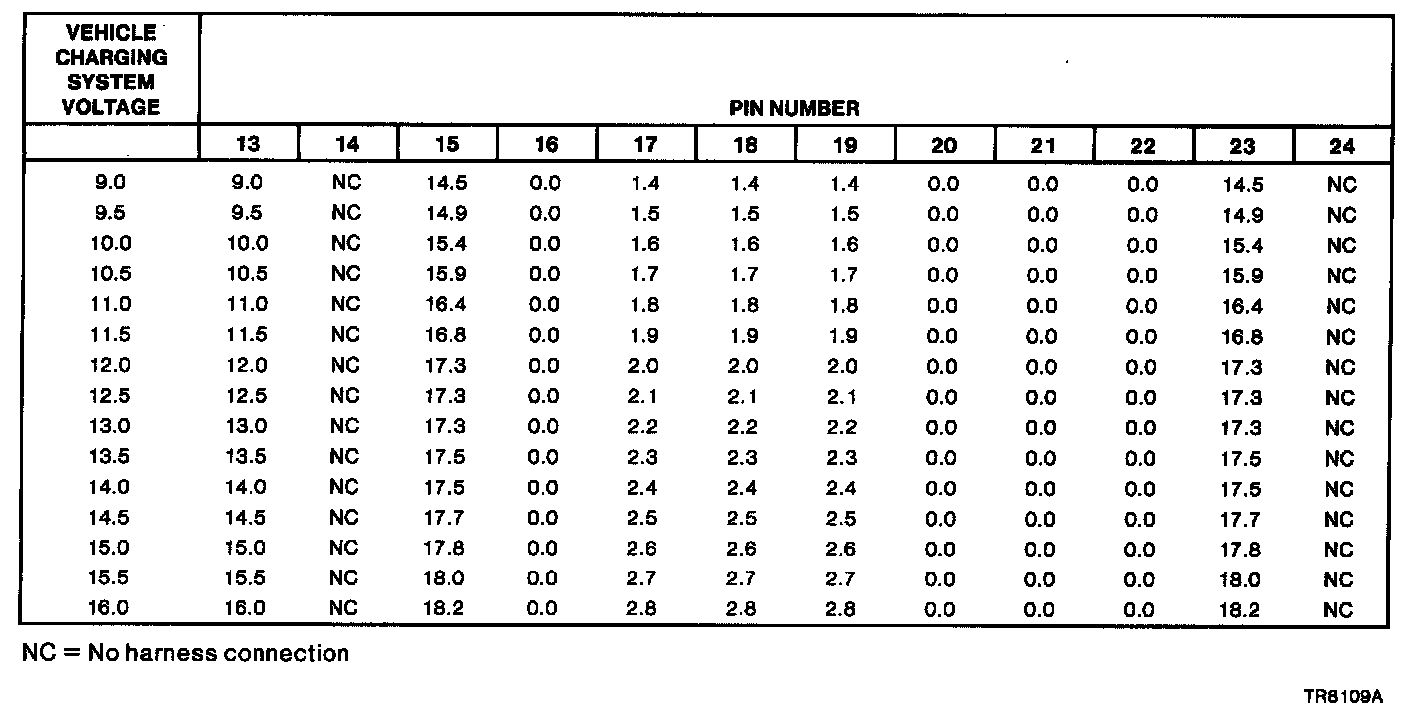

Part 2 Of 2:





Air Bag Diagnostic Monitor Typical Pin Voltages With System Connected And Engine Running
