Speedometer Head: Testing and Inspection

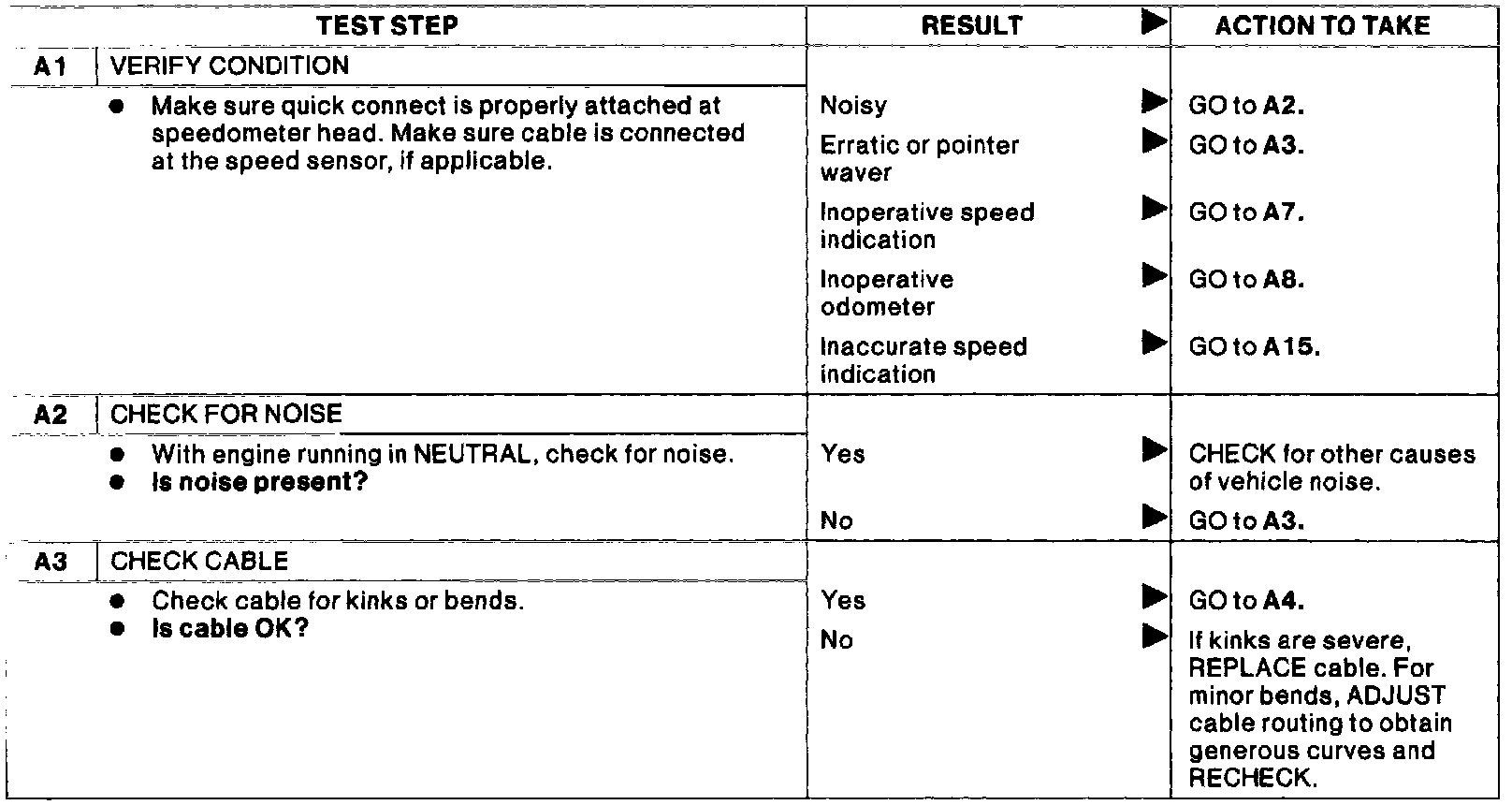

Test A: Speedometer Diagnosis.:
Test A1-A3

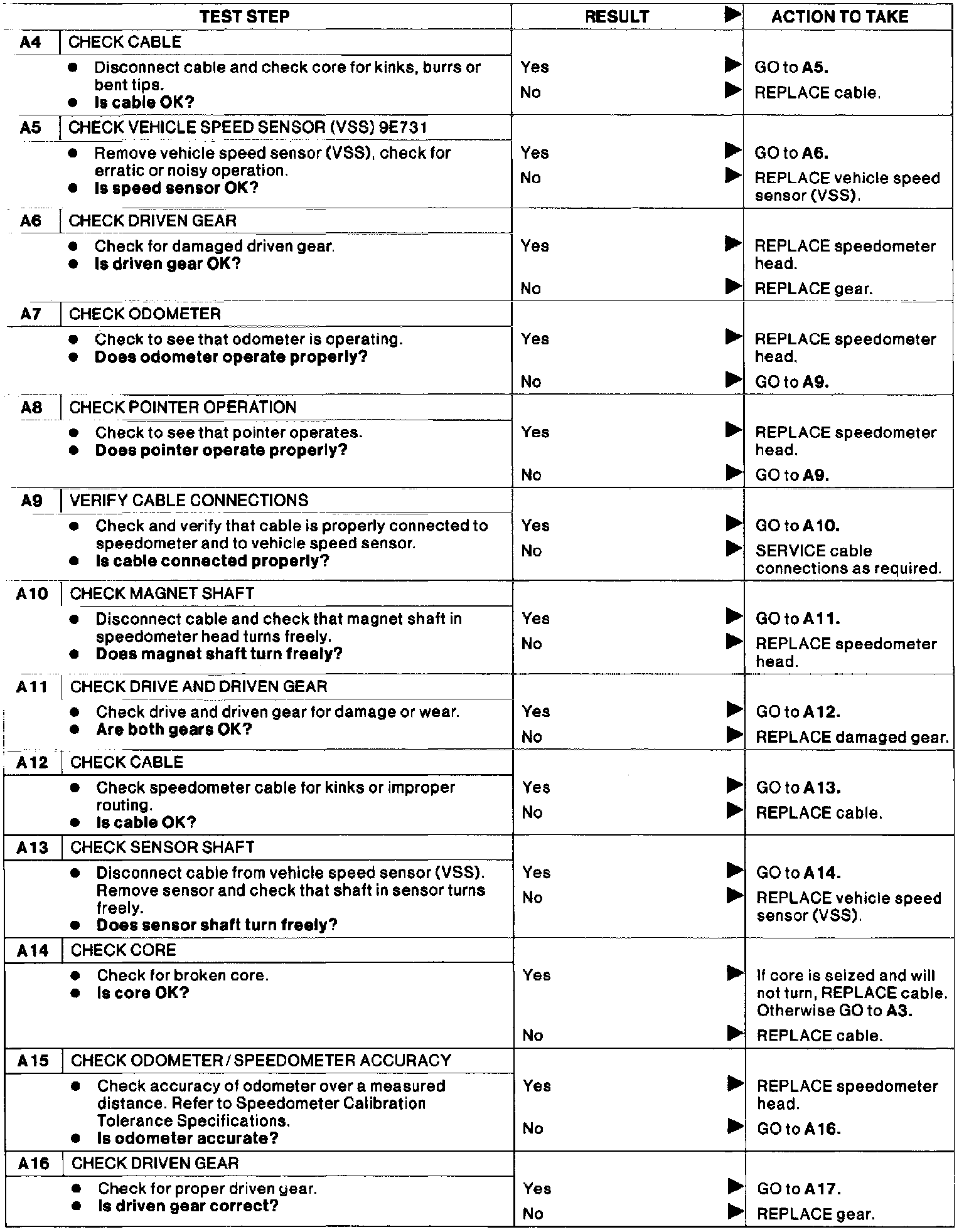

Test A: Speedometer Diagnosis.:
Test A4-A16

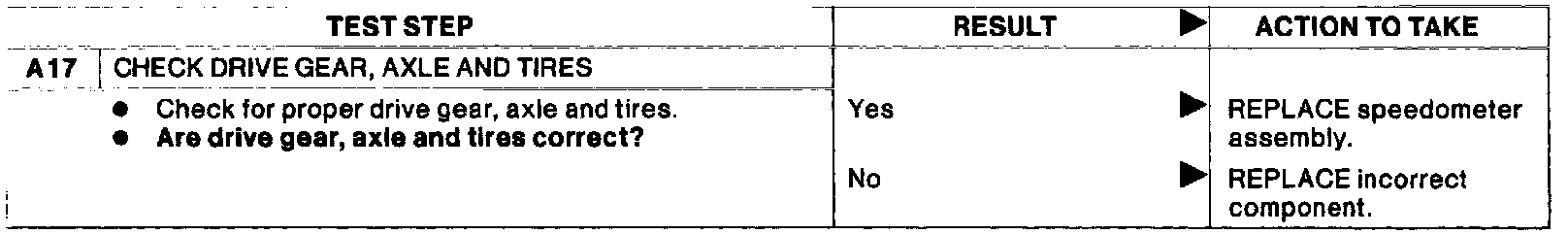

Test A: Speedometer Diagnosis.:
Test A17
