Topaz V6-182 3.0L
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Testing and Inspection
>>
Diagnostic Test Procedures
Diagnostic Test Procedures

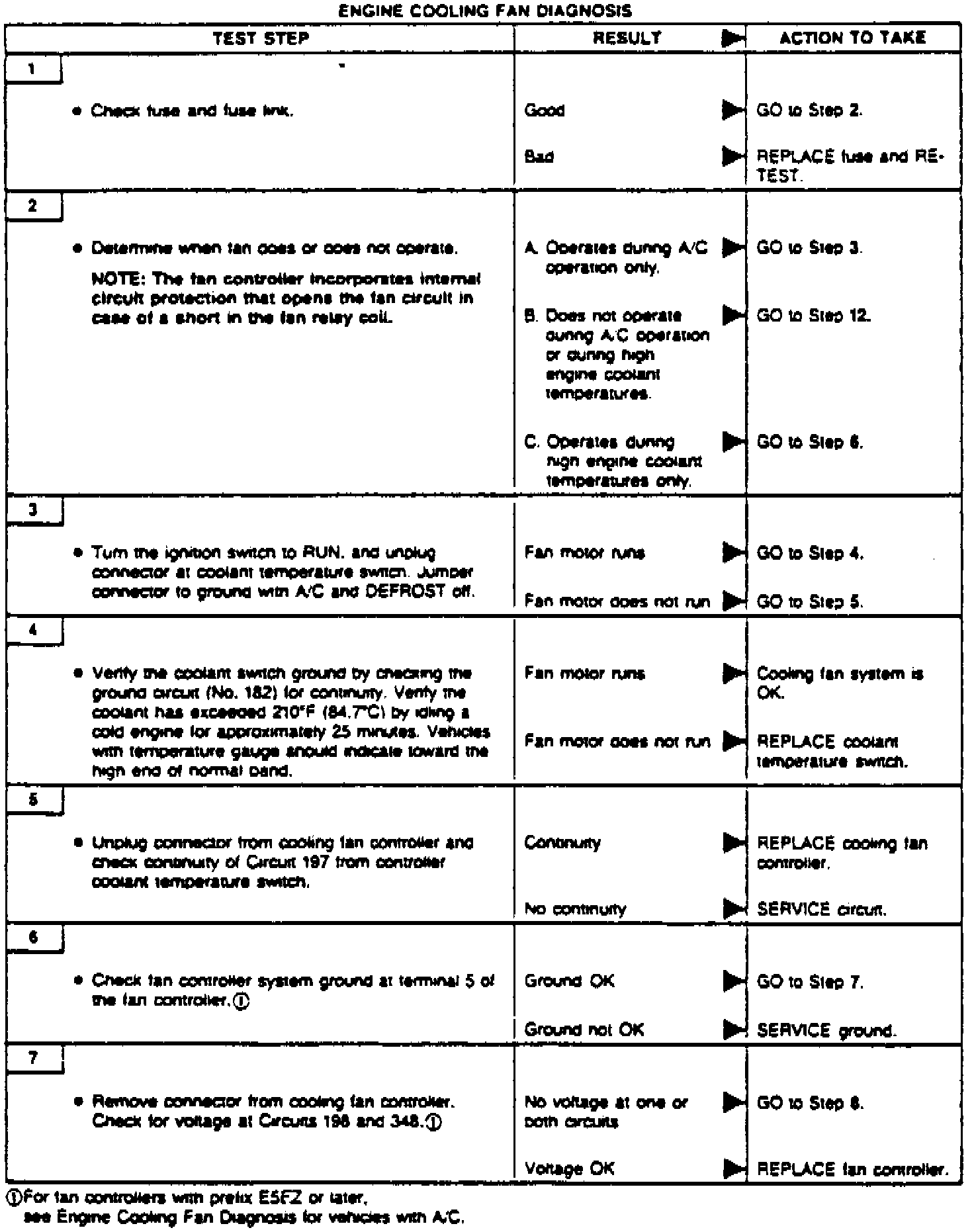

Cooling Fan System Diagnosis (Part 1 Of 3).:
Steps 1-7

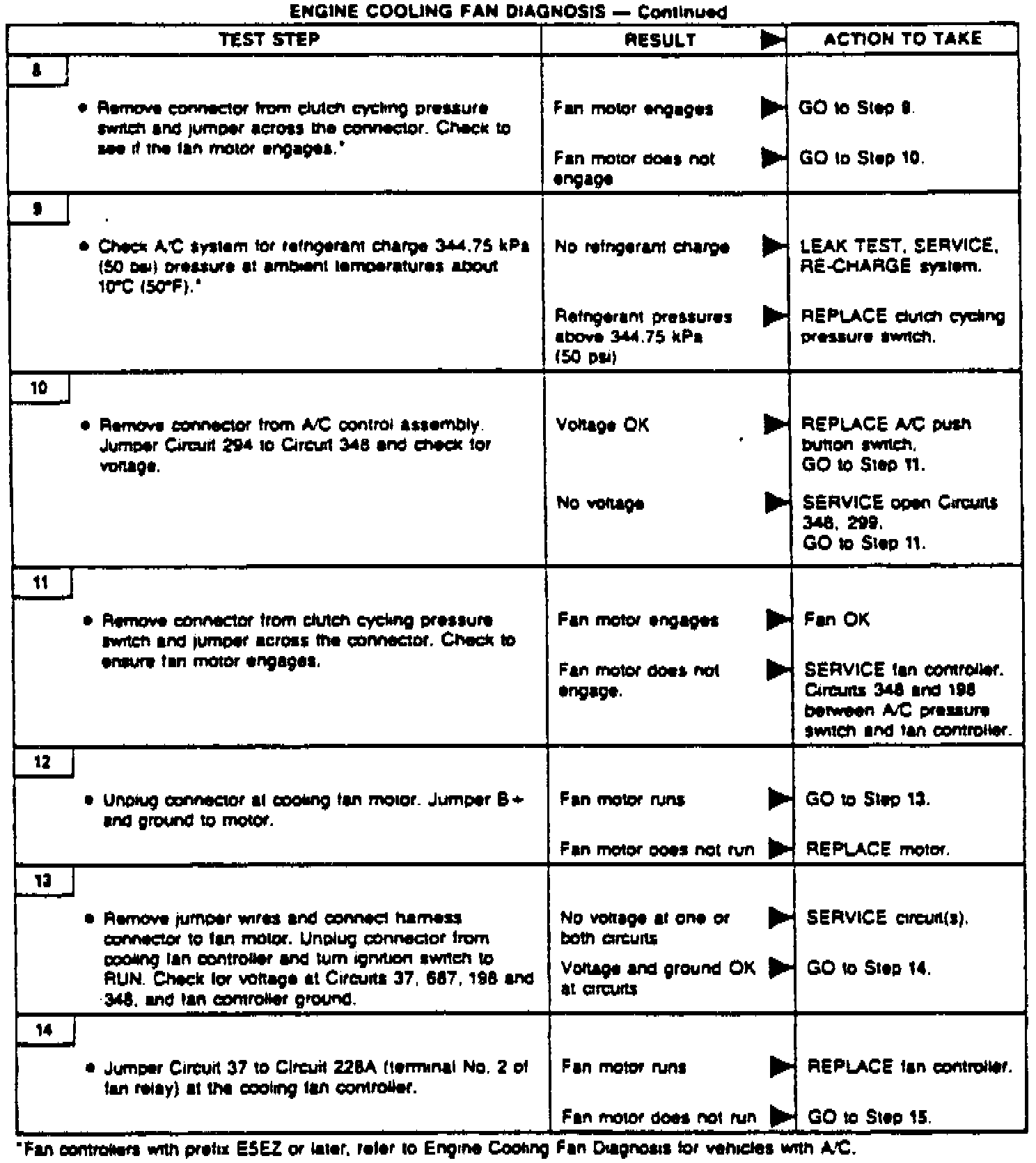

Cooling fan system diagnosis (Part 2 Of 3):
Steps 8-14

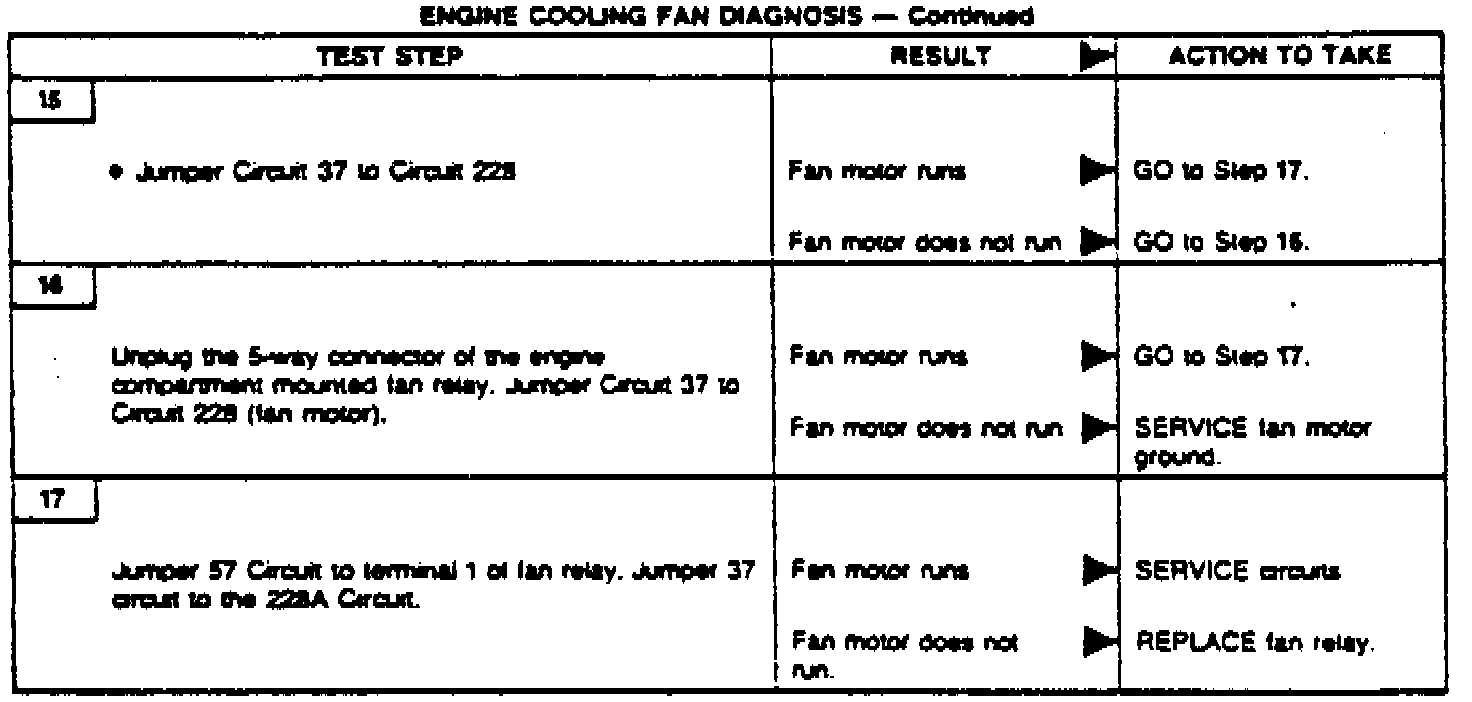

Cooling Fan Diagnosis (Part 3 Of 3):
Steps 15-17
