Home >> Mercury >> 1994 >> Topaz V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> Vehicle Not Equipped With Air Bag >> Fixed Column

Fixed Column

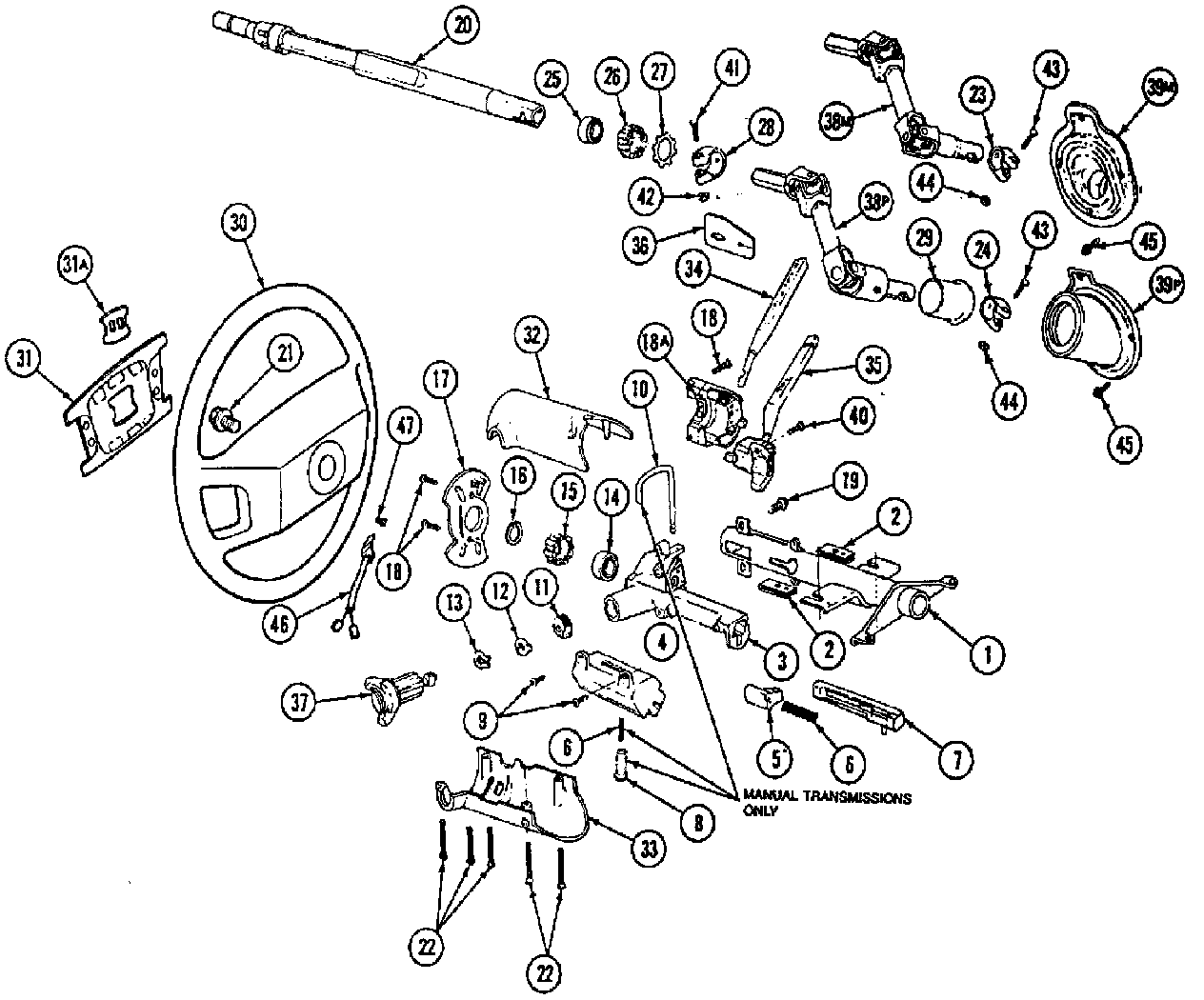

Fixed Steering Column (Part 1 Of 2):




Fixed Steering Column (Part 2 Of 2):
