Headlamp Dimmer Switch: Testing and Inspection

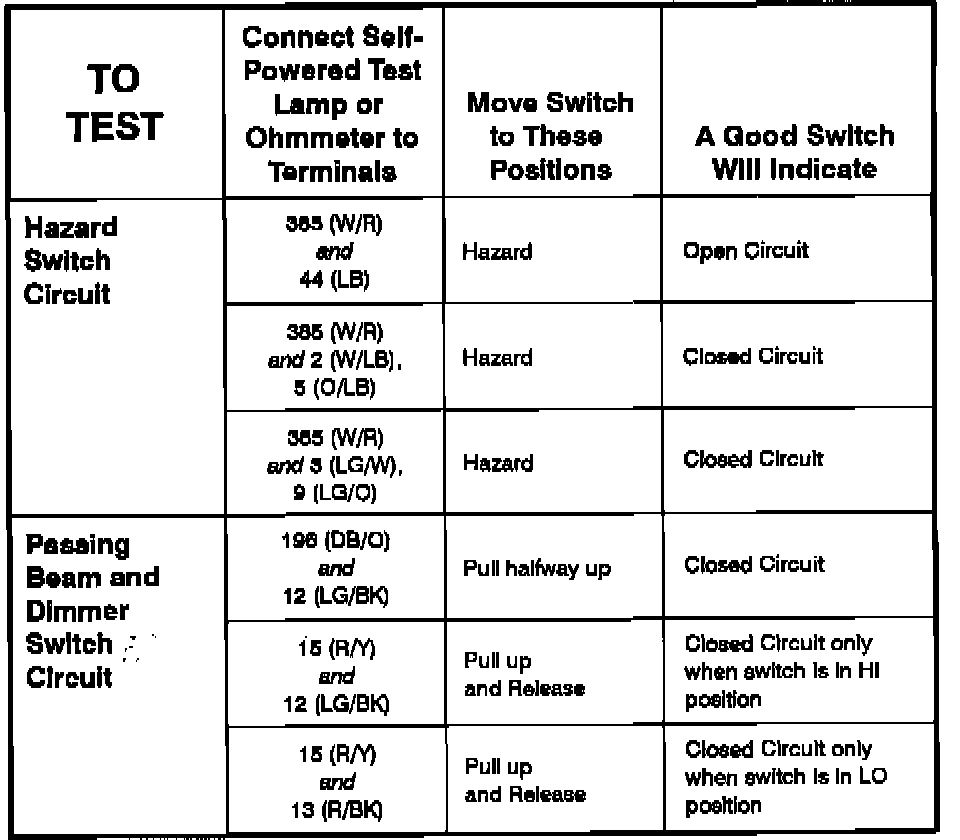

Component Testing Procedure:





Terminal Locations:

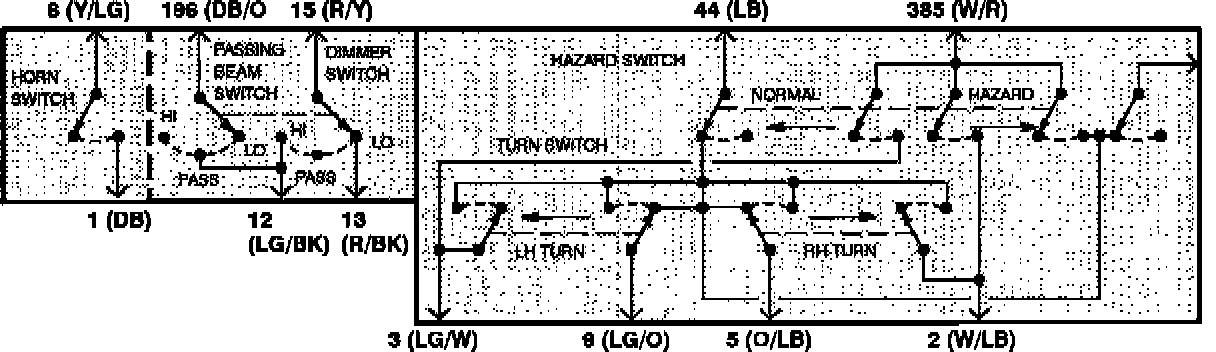

Schematic:
