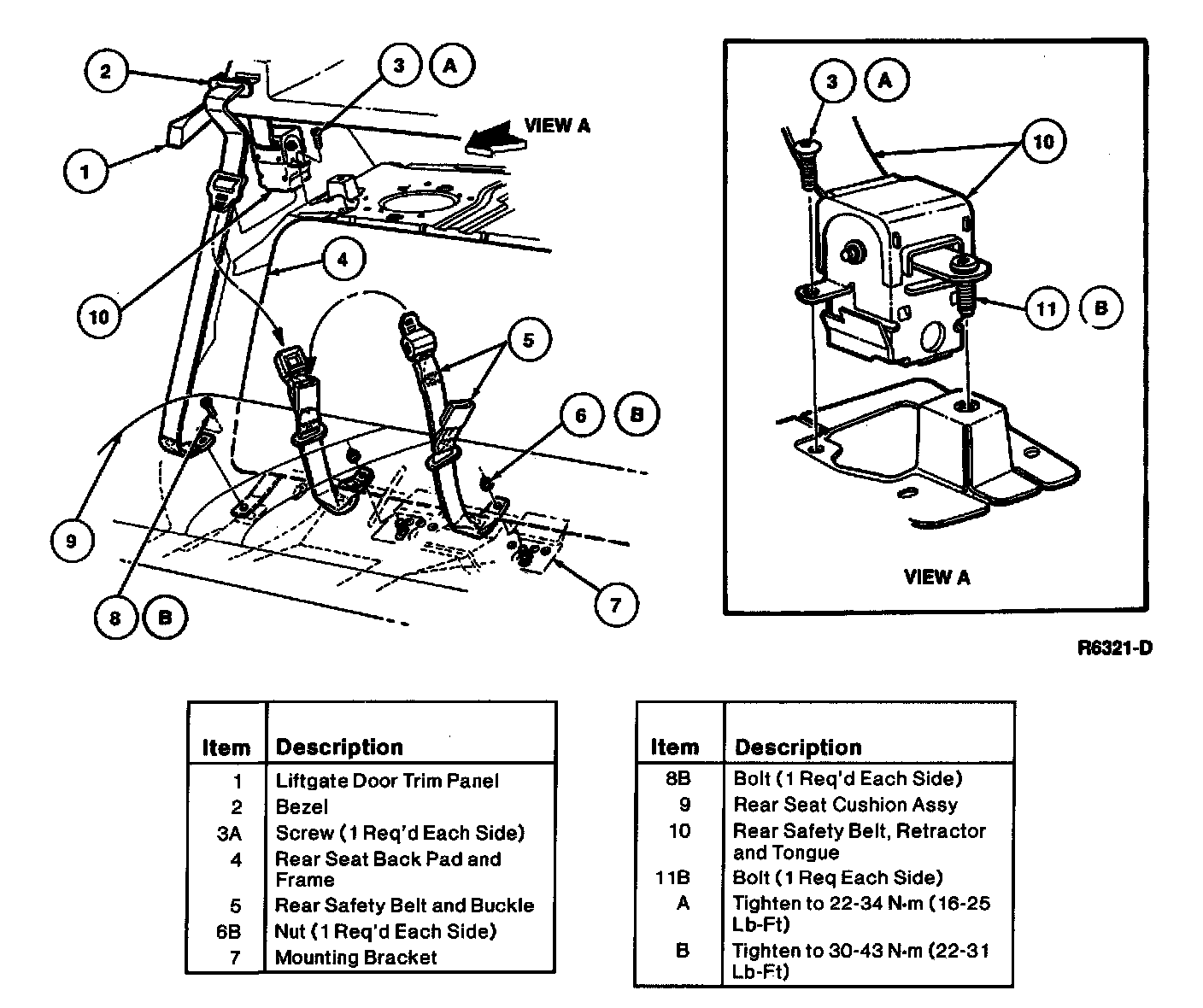

Rear Retractor Assembly

Removal and Installation
1. Disengage lower portion of rear seat cushion from retainer by pushing rearward. Remove safety belt retaining bolts.
2. Remove buckle end anchor nuts and remove buckle end belts.
3. Remove rear seat back.
4. Remove safety belt anchor-to-sill bolt.
5. Snap out bezel in package tray trim panel.
6. Remove rear stoplamp assembly.
7. Remove package tray trim panel.
8. Remove retractor anchor bolts and retractor screw.
9. Remove anchor end of webbing through the opening in the package tray trim panel.
10. Remove outboard safety belt assembly from the vehicle.
11. Repeat procedure on opposite side.
12. To install, reverse Removal procedure.
13. Tighten retaining bolt 3 to 22-34 Nm (18-29 lb-ft).
14. Tighten retaining bolt 11 to 30-43 Nm (25-36 lb-ft).
15. Test safety belt operation several times to ensure proper functioning of retractor. Make sure safety belt is not twisted.
