Constant Control Relay Module (CCRM) Schematic:
ELECTRICAL DIAGRAM

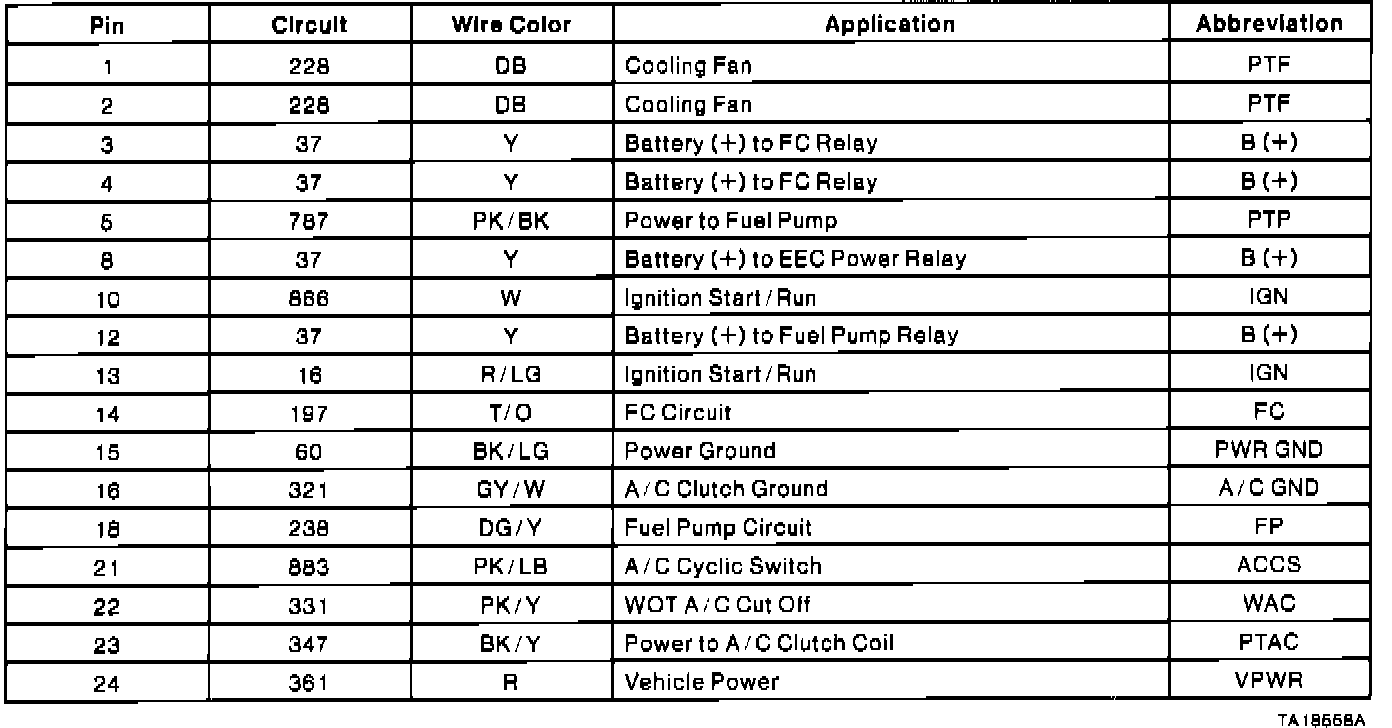

Constant Control Relay Module (CCRM) Pin Usage:
PINOUT IDENTIFICATION
