Fuel Gauge: Testing and Inspection

Test A: Fuel Gauge Inoperative, Point Does Not Move.:

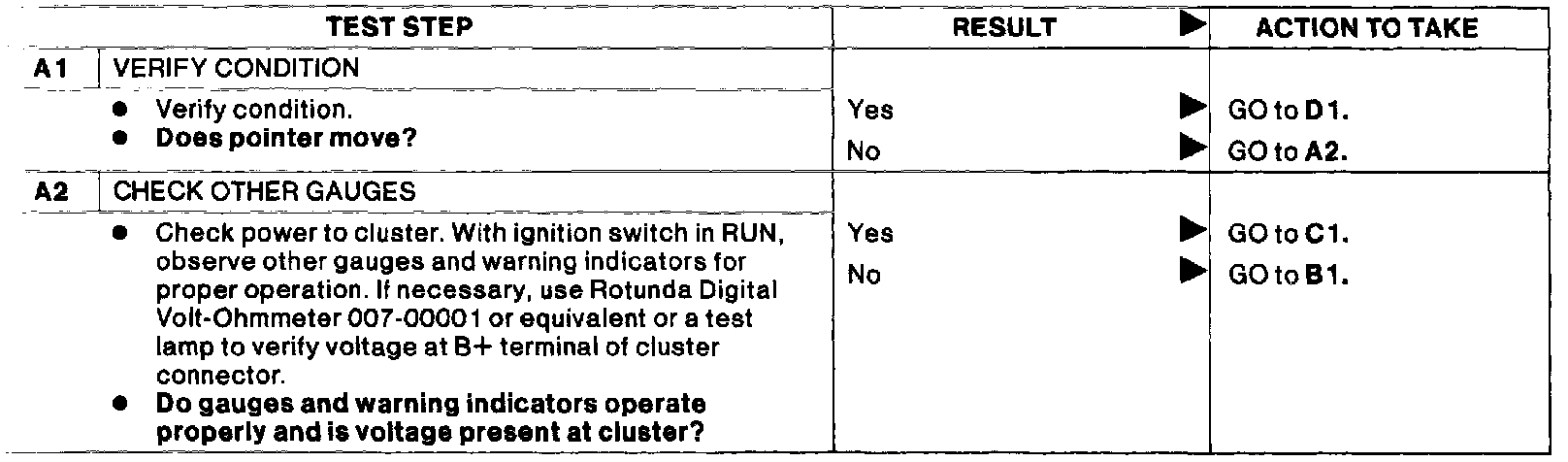

Test A1-A2

Test B: Fuel Gauge Inoperative.:

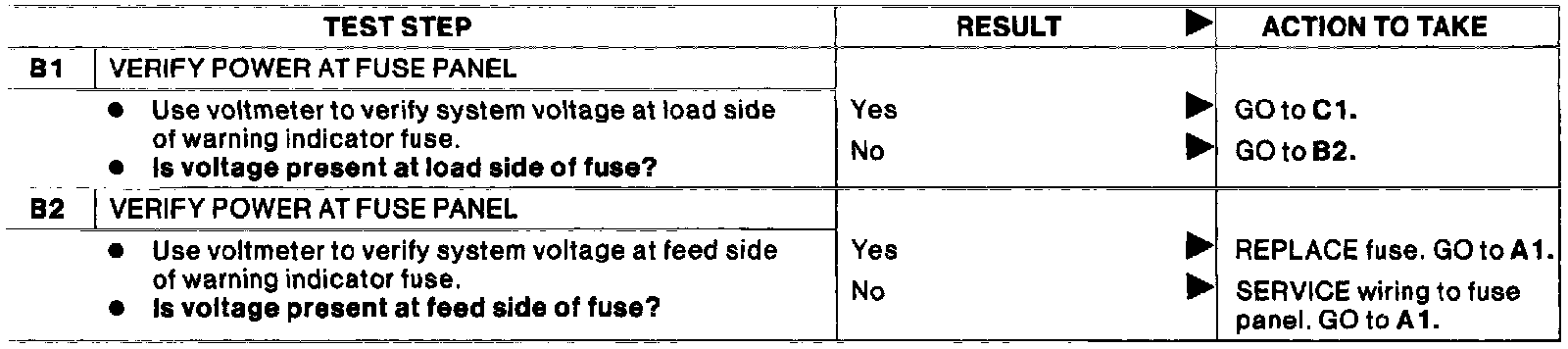

Test B1-B2

Cluster Diagnosis.:

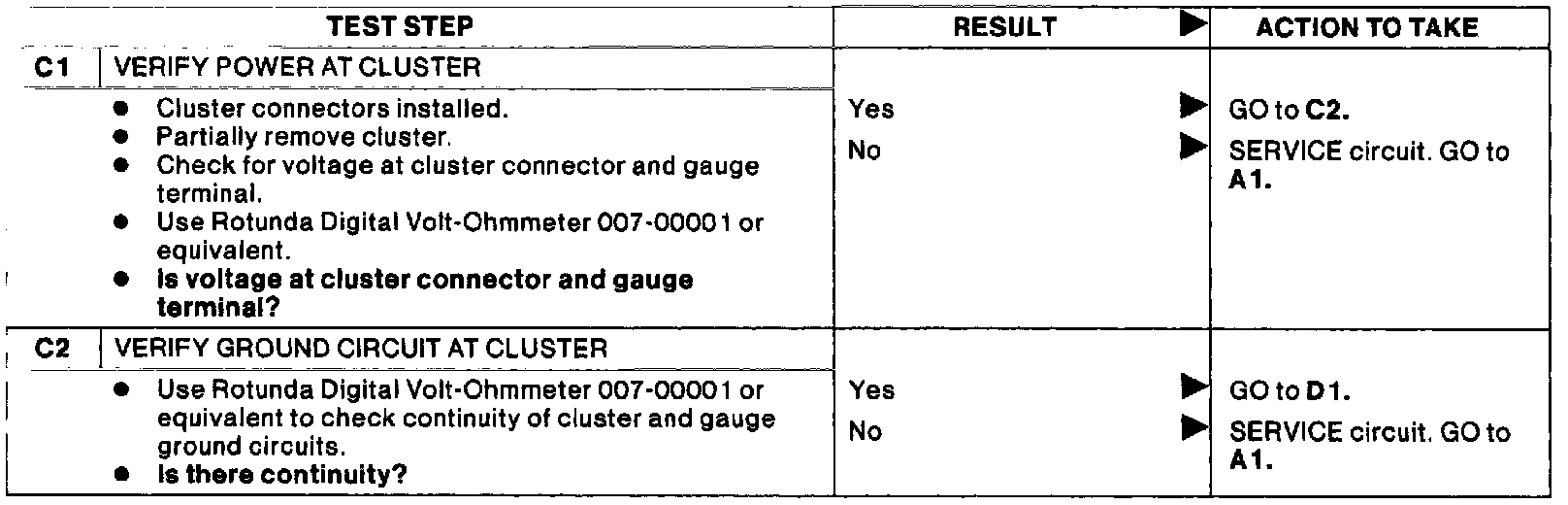

Test C1-C2

Test D: Fuel Gauge Diagnosis.:

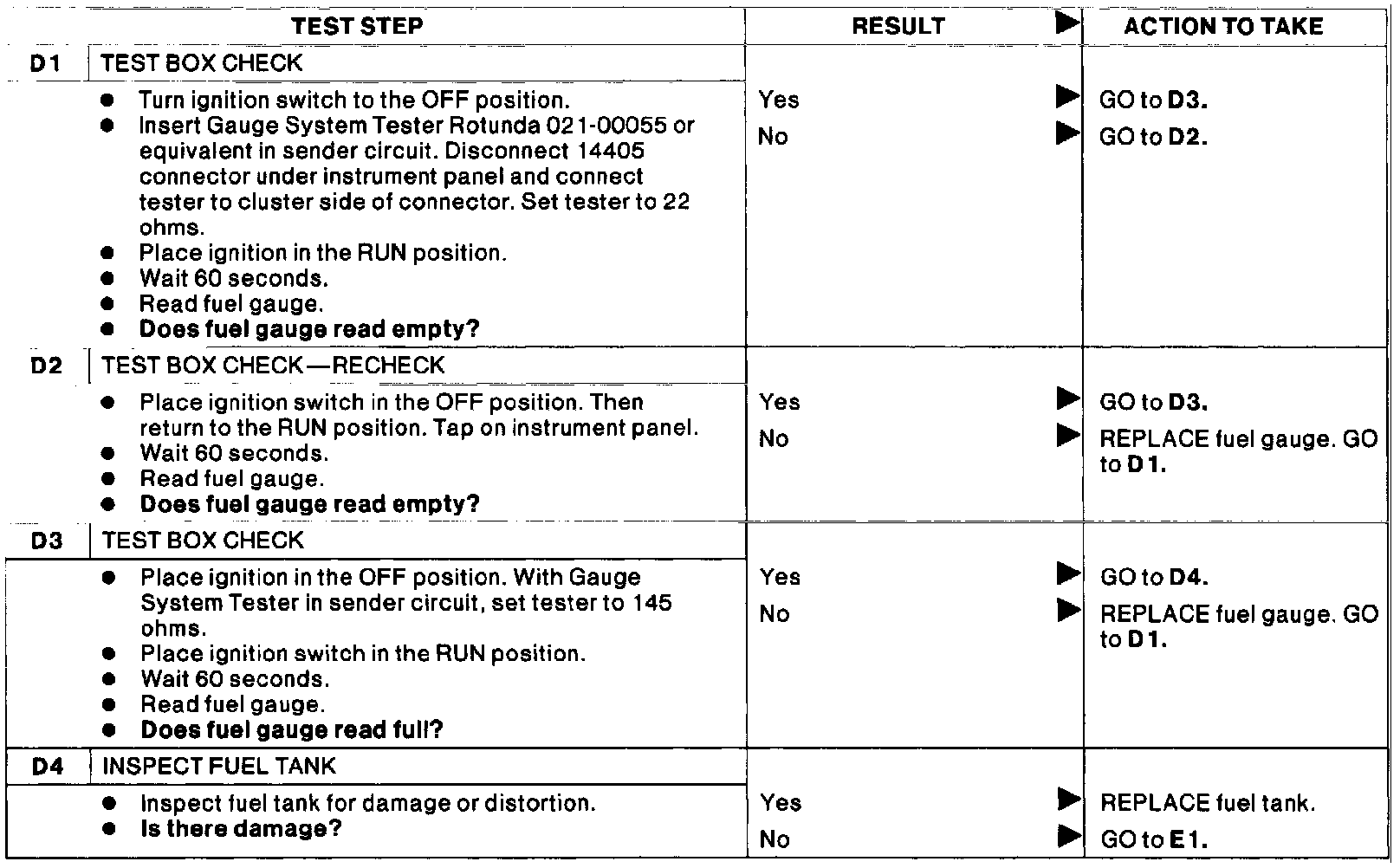

Test D1-D4

Test E: Fuel Sender Diagnosis.:

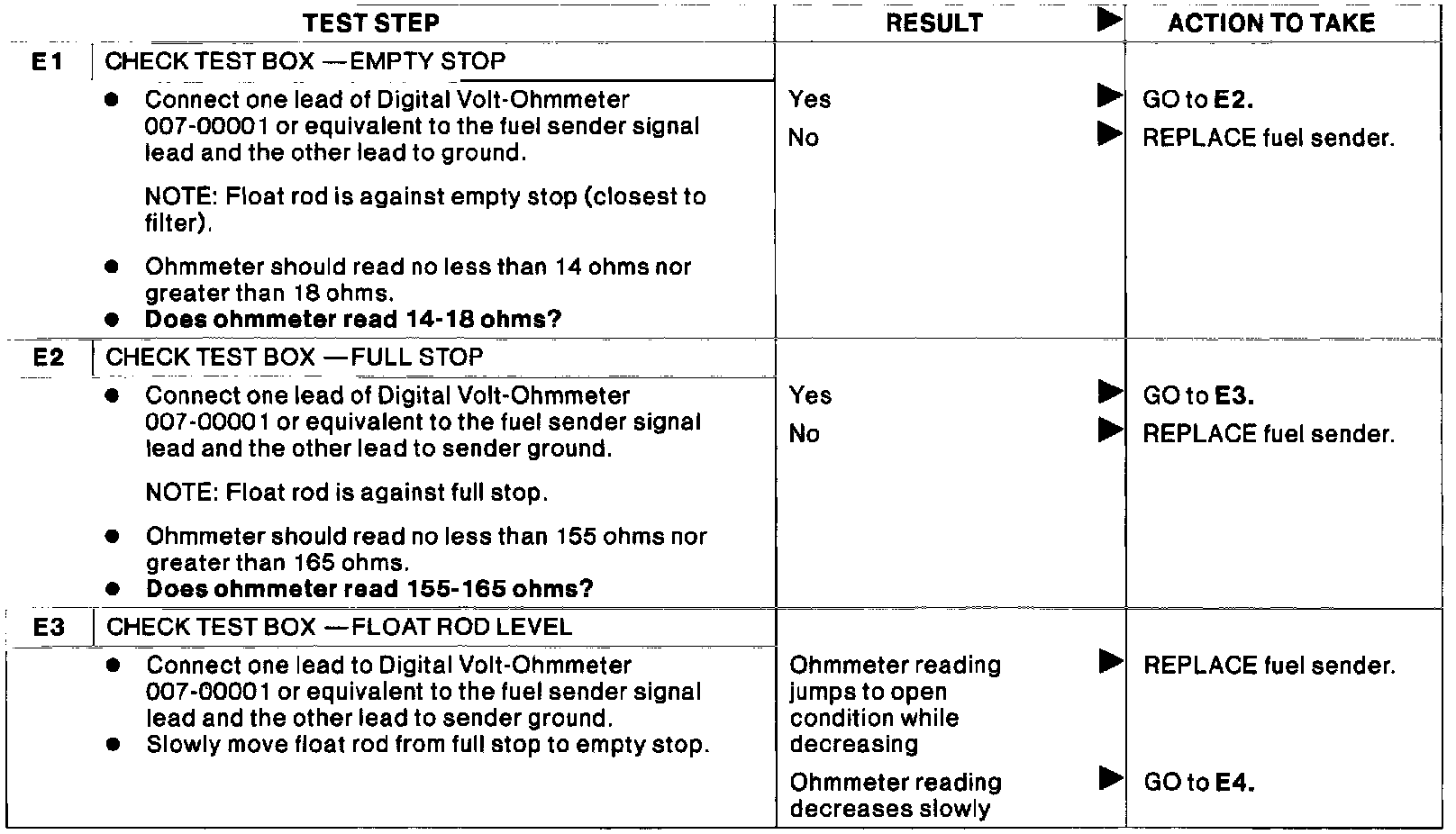

Test E1-E3

Test E: Fuel Sender Diagnosis.:

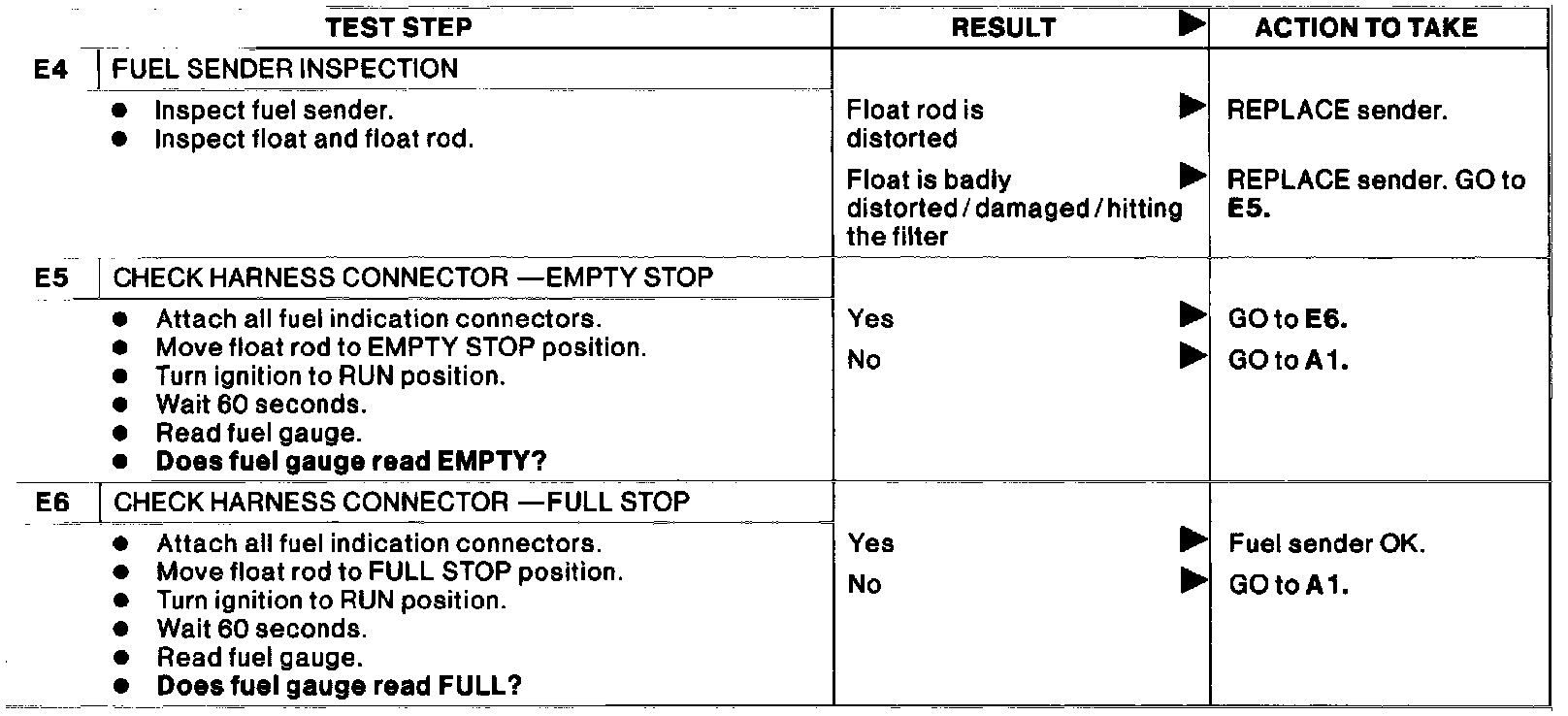

Test E4-E6
