Home >> Mercury >> 1994 >> Topaz L4-140 2.3L HSC >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Lamps and Indicators - Cooling System >> Temperature Gauge >> Testing and Inspection >> Pinpoint Tests

Pinpoint Tests

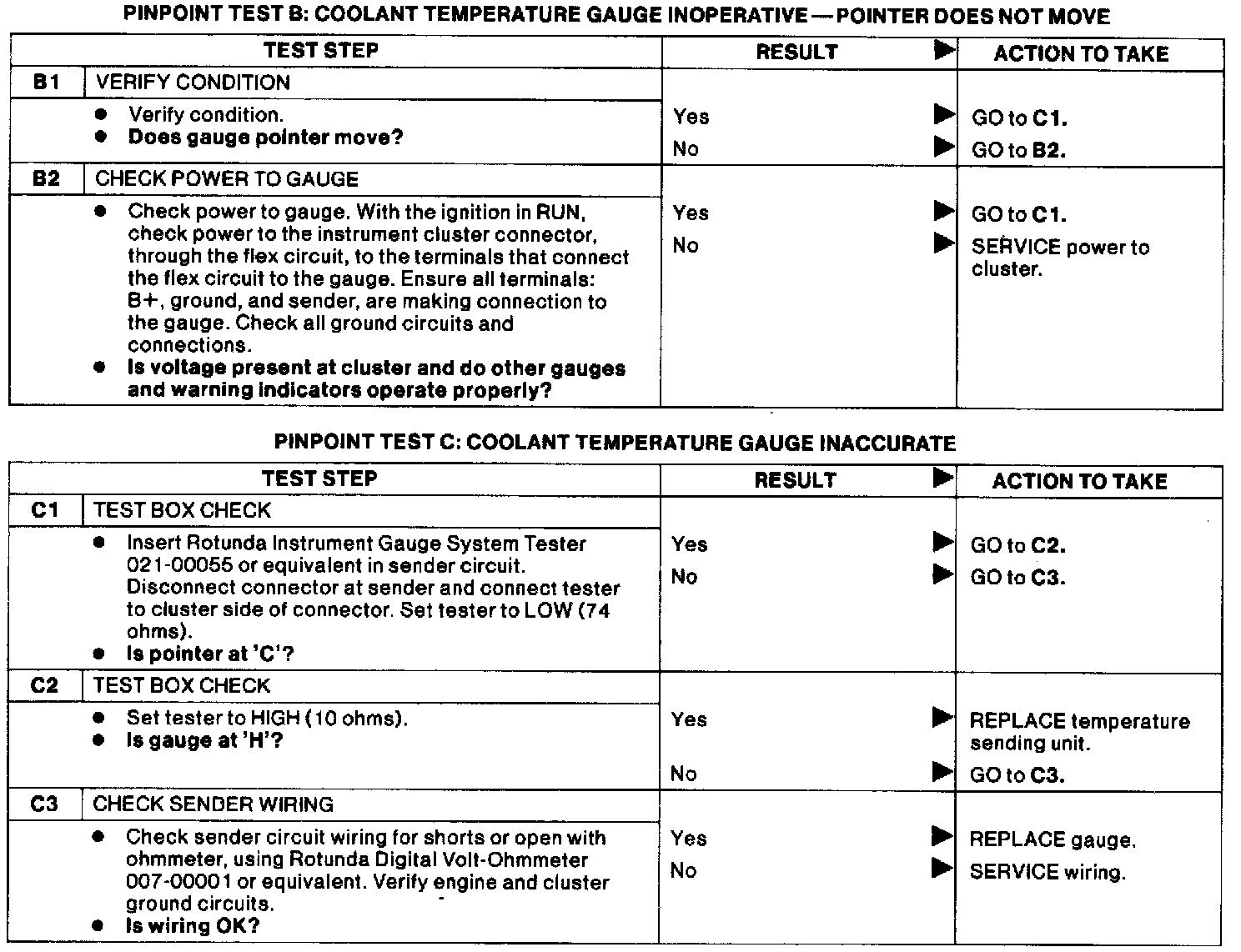

Test B & C: Coolant Temperature Gauge Diagnosis.:





Test B1-C3
