Vacuum Schematics

NOTE: For calibration codes not listed, no vacuum diagrams were available from the manufacturer at time of production.

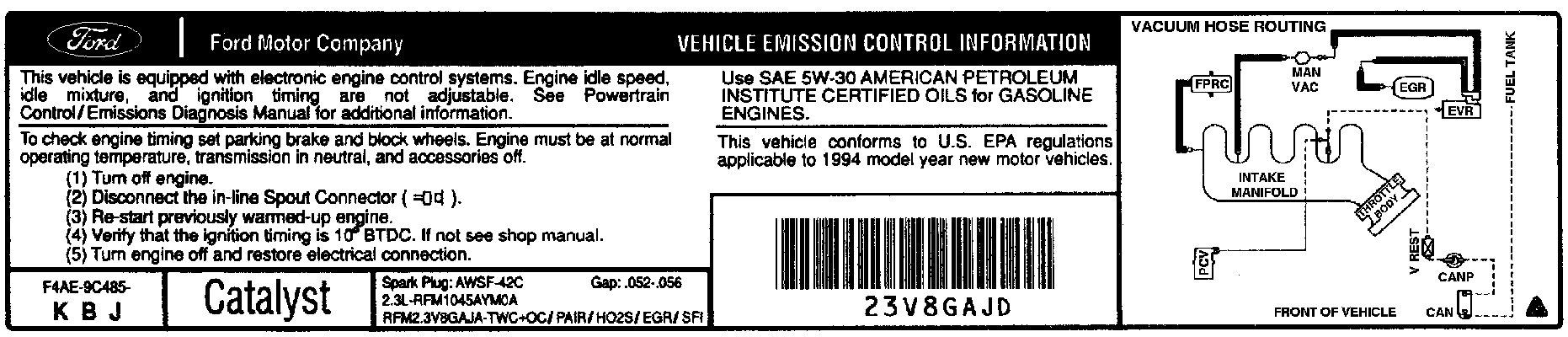

Calibration - 2-25F-R11

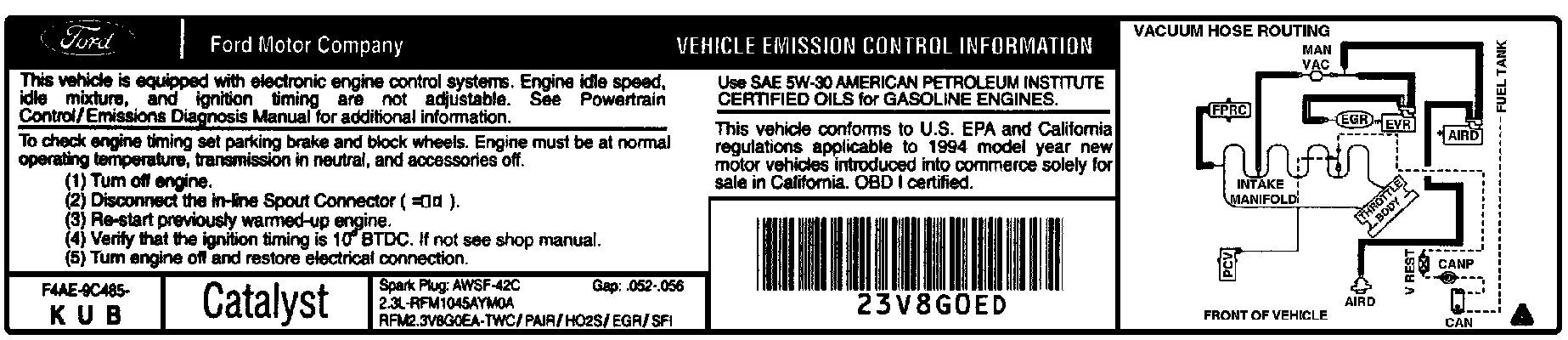

Calibration - 2-25Q-R11

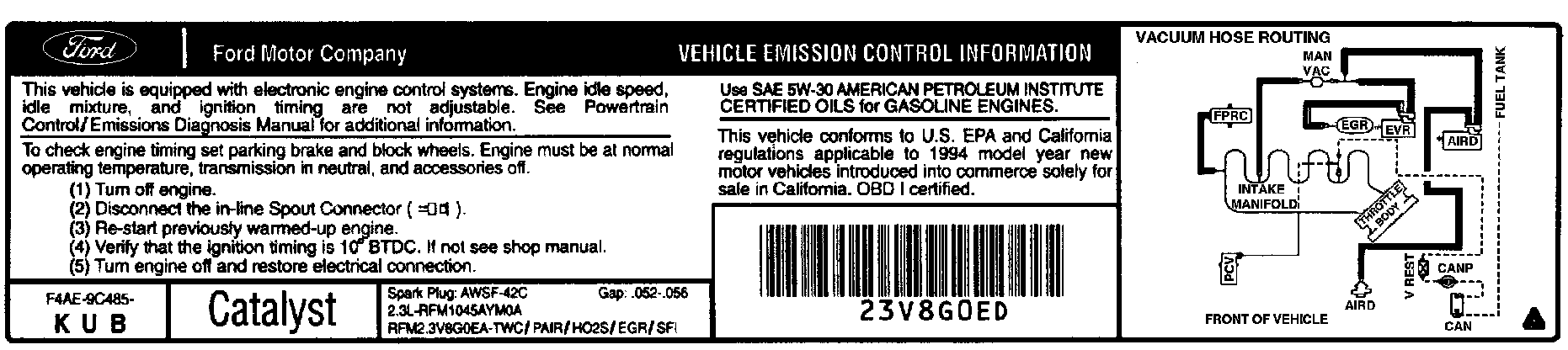

Calibration - 2-26E-R12




Calibration - 2-26R-R11
