Home >> Mercury >> 1994 >> Topaz L4-140 2.3L HSC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> A: Speed Control Inoperative

A: Speed Control Inoperative

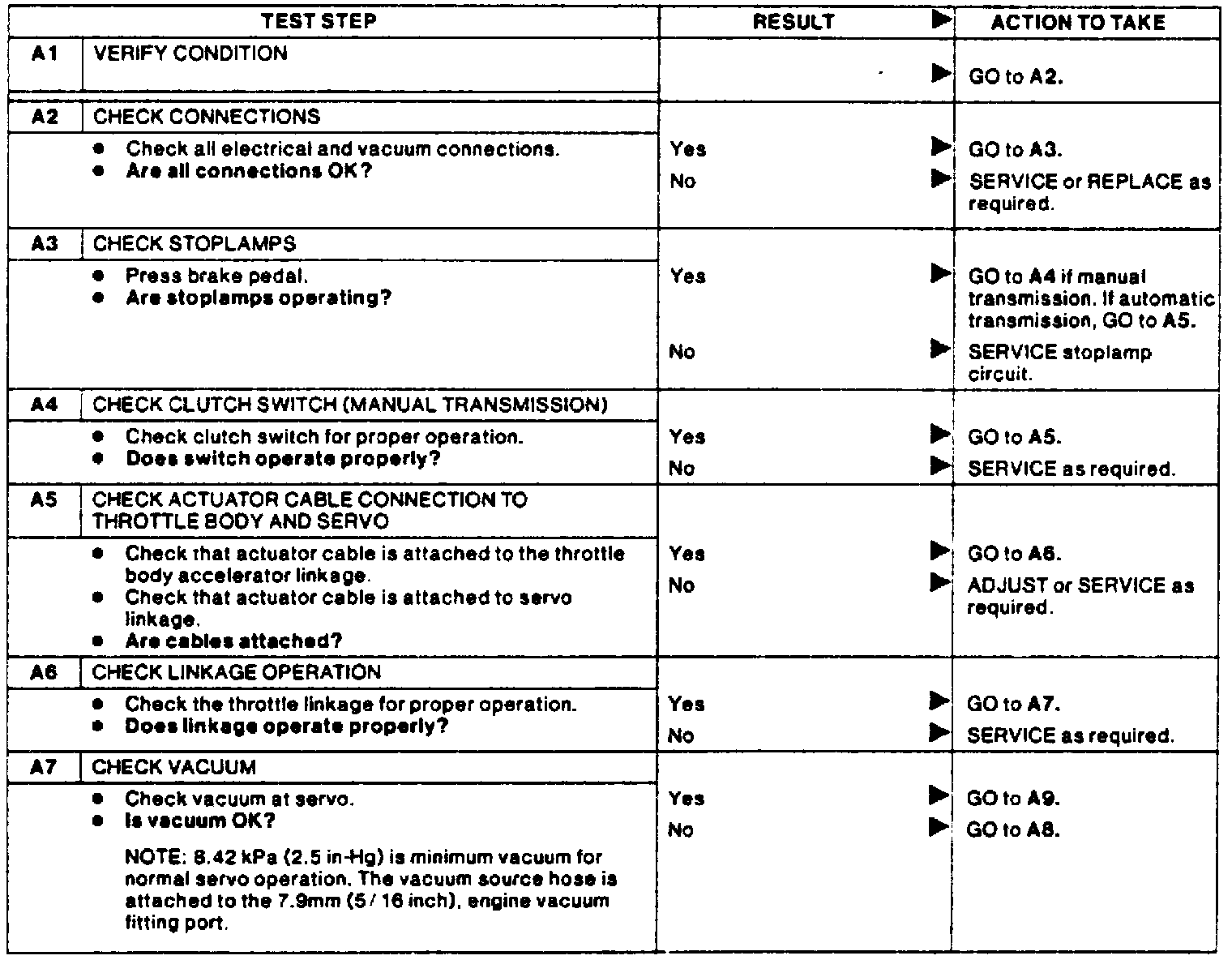

Test A: Speed Control Inoperative.:





Test A1-A7

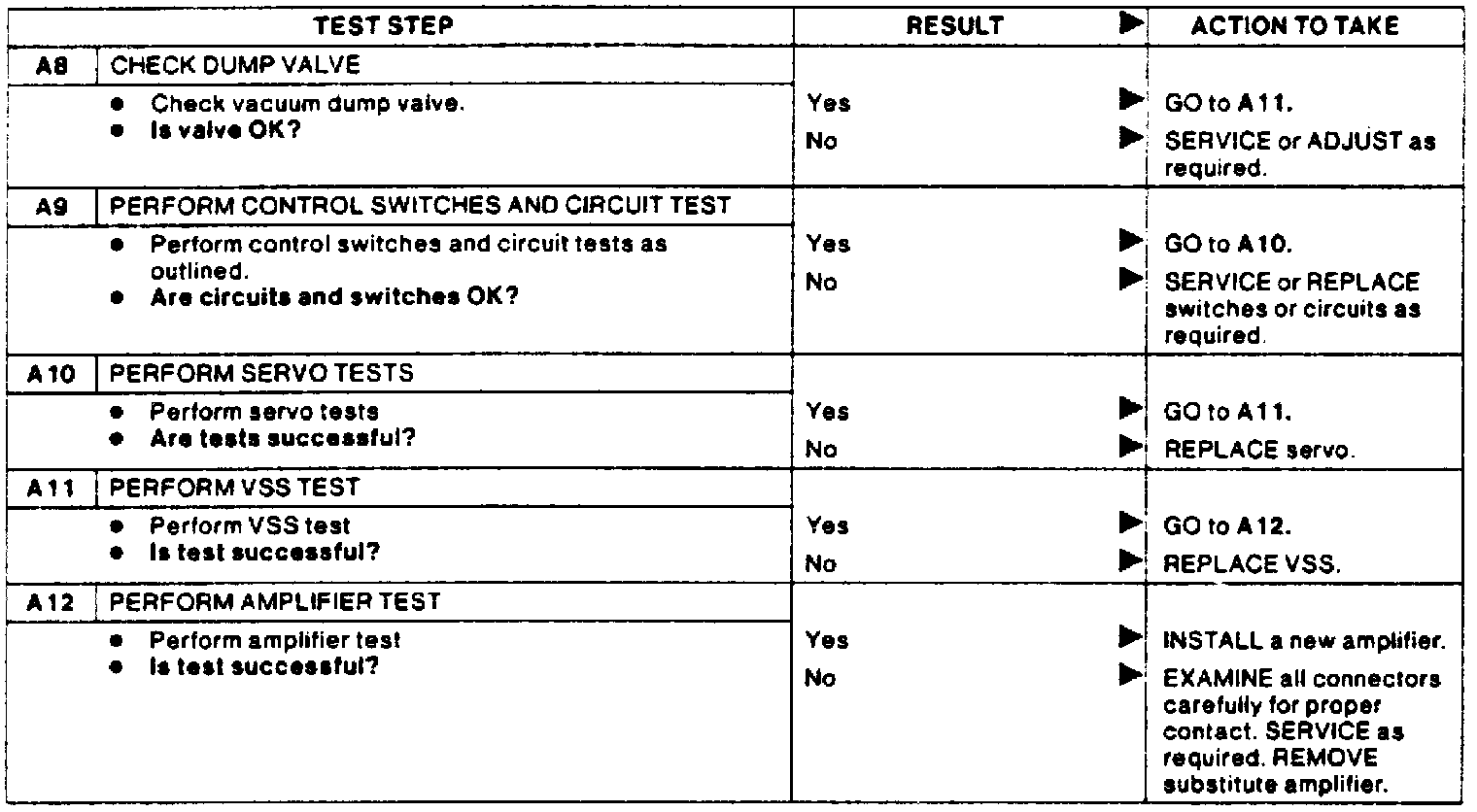

Test A: Speed Control Inoperative.:





Test A8-A12
