Schematic and Connector Views Used With Pinpoint Tests

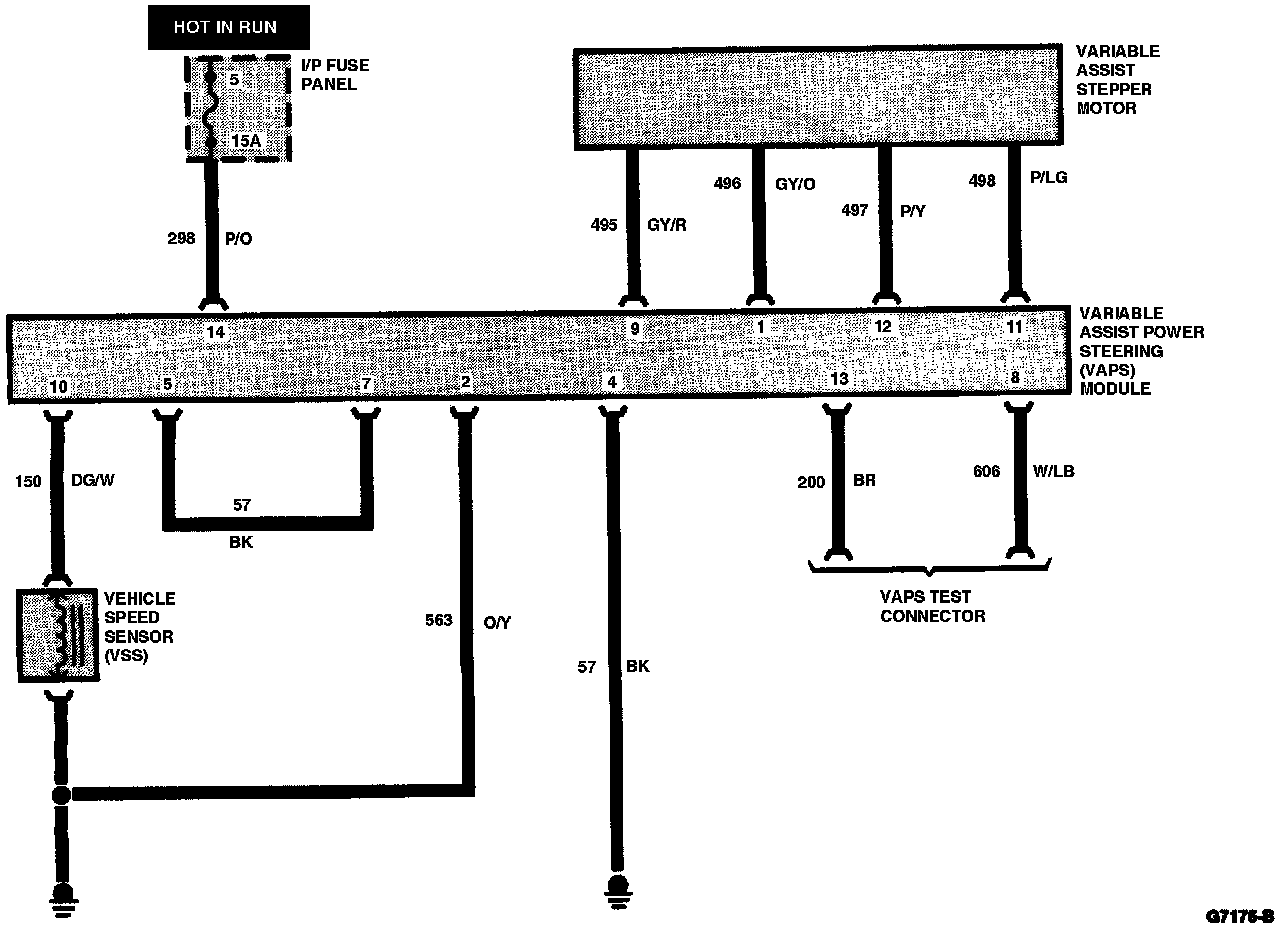

VAPS Schematic:

VAPS Connector View:

Connector: C1042 is at the Variable Assist Stepper Motor.

There is no connector view for C1042 given. Refer to the wiring diagram.

There is an inline connector between the actuator and the control module:

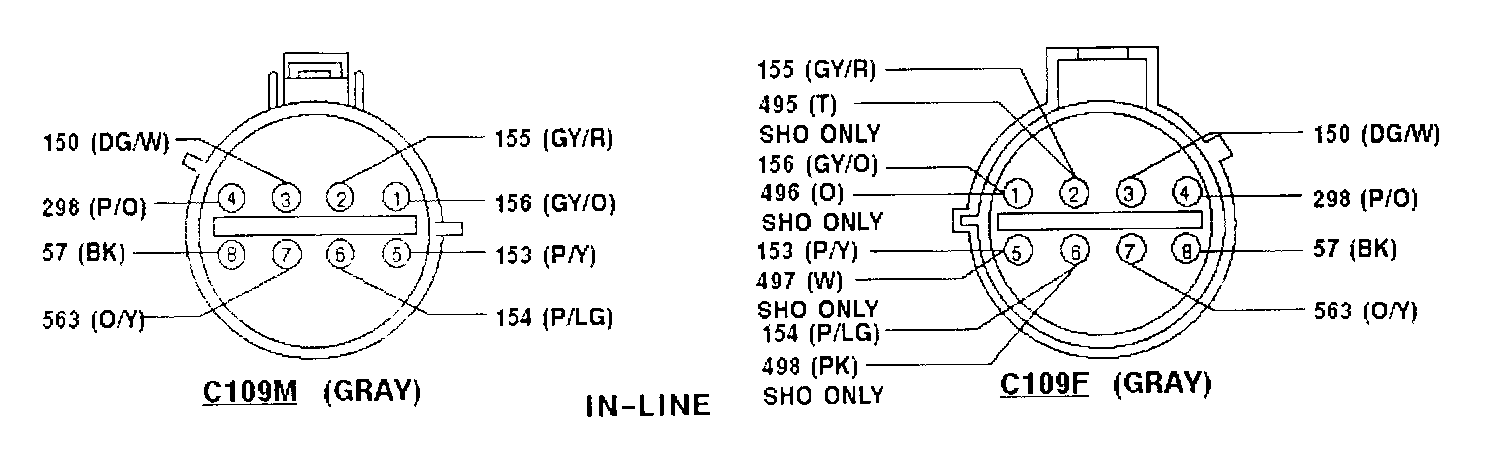

Connector View C109 Male And C109 Female:

Connector: C109, Color = 'GY', Terminals= '8'
