Power Distribution Relay: Locations

Component Locations:

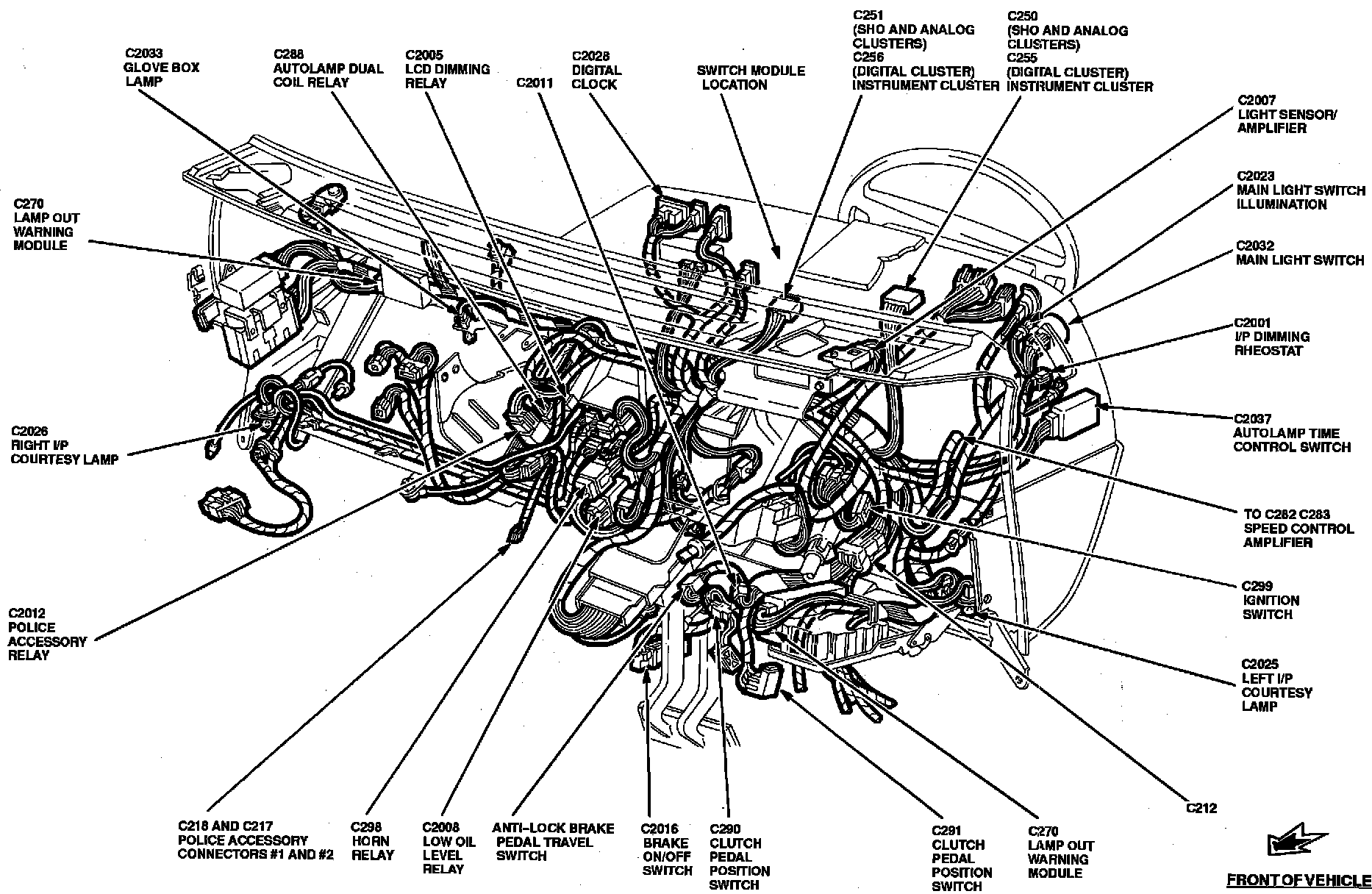

The Police Accessory Relay is located behind the center of the instrument panel, on the RH instrument panel vertical brace.
