2 - Hard Start/Long Crank/Erratic Start/Erratic Crank
2 - Hard Start/Long Crank/Erratic Start/Erratic Crank

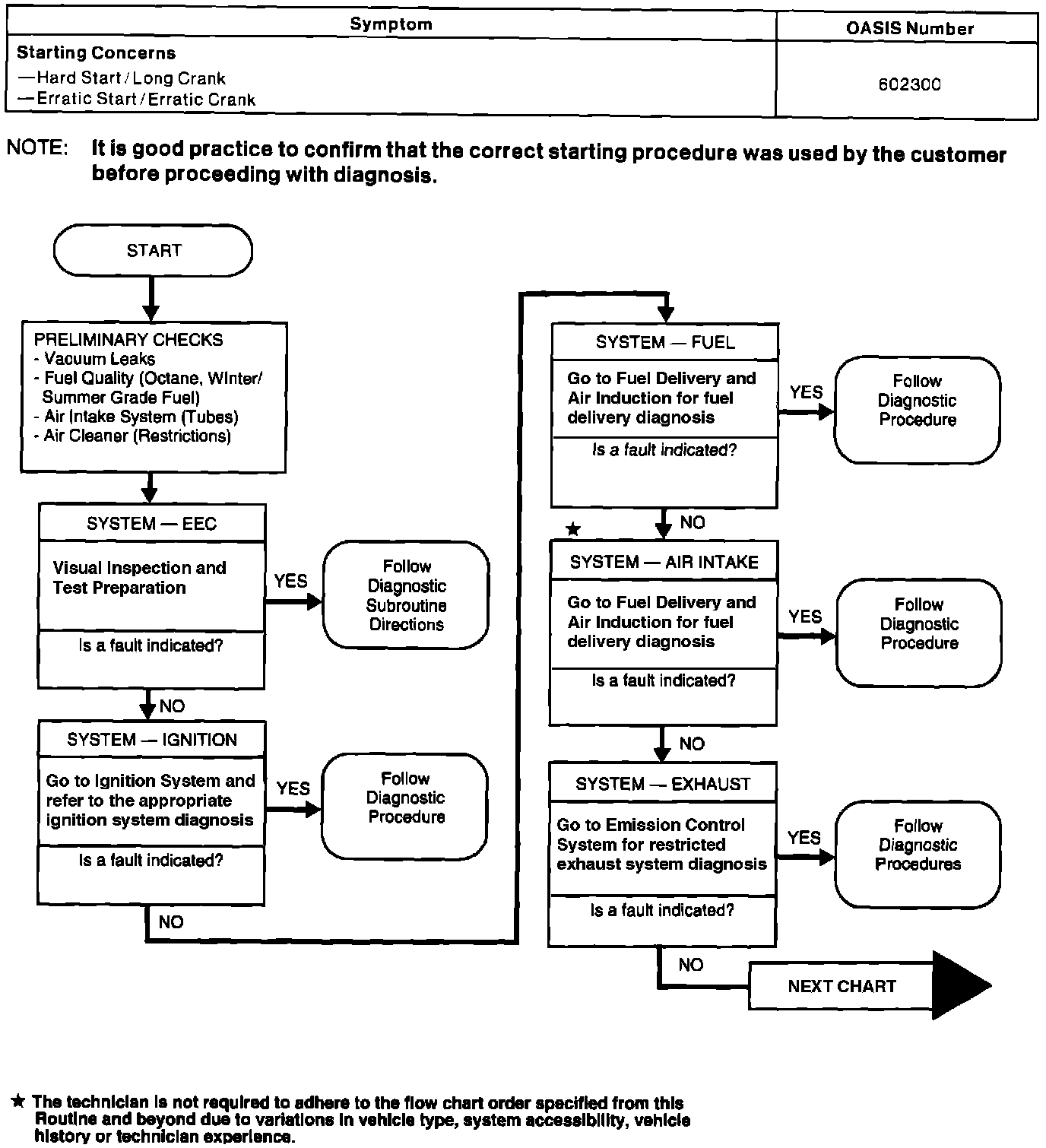

Chart 2 (Part 1 of 2):

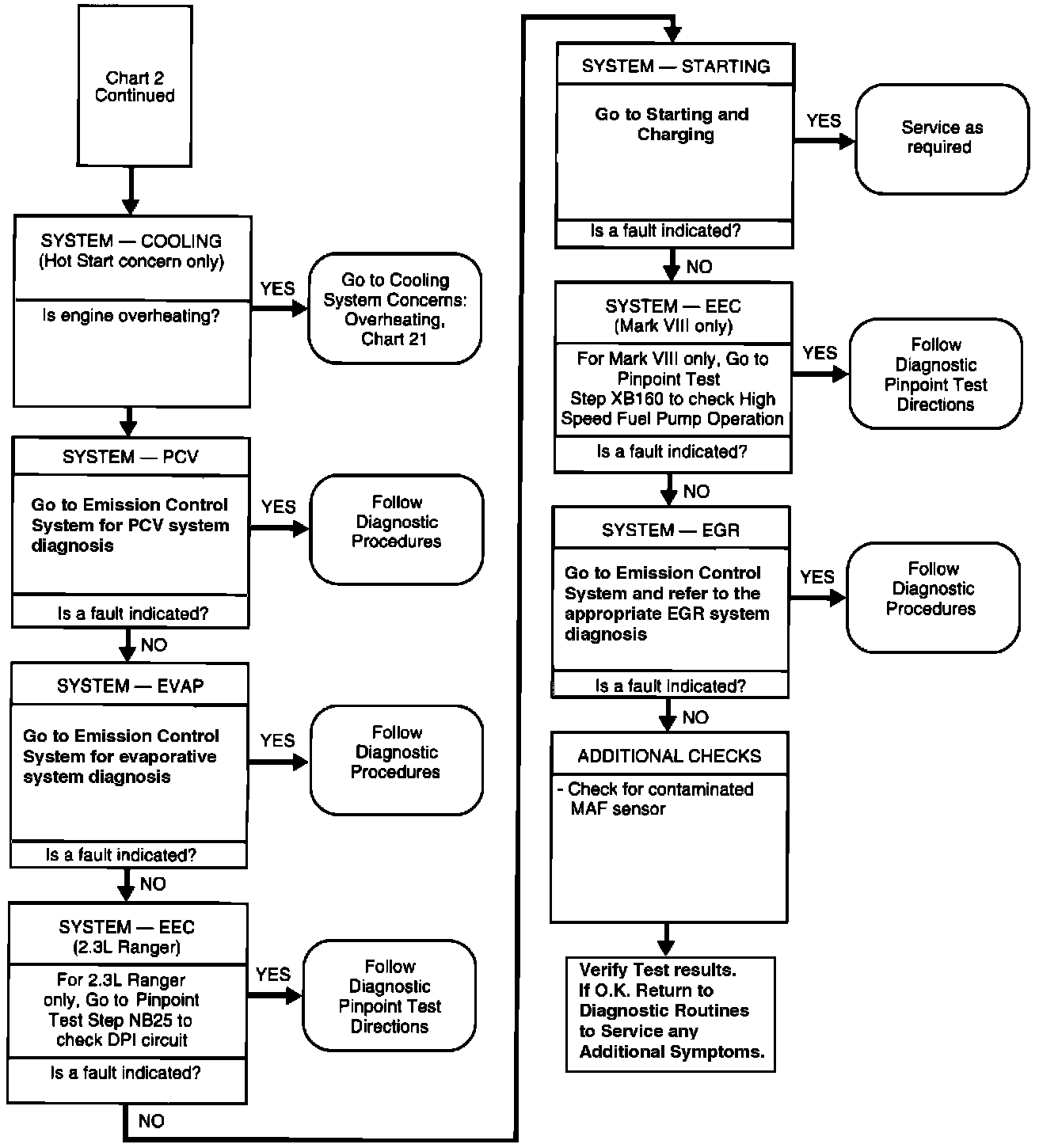

Chart 2 (Part 2 of 2):
