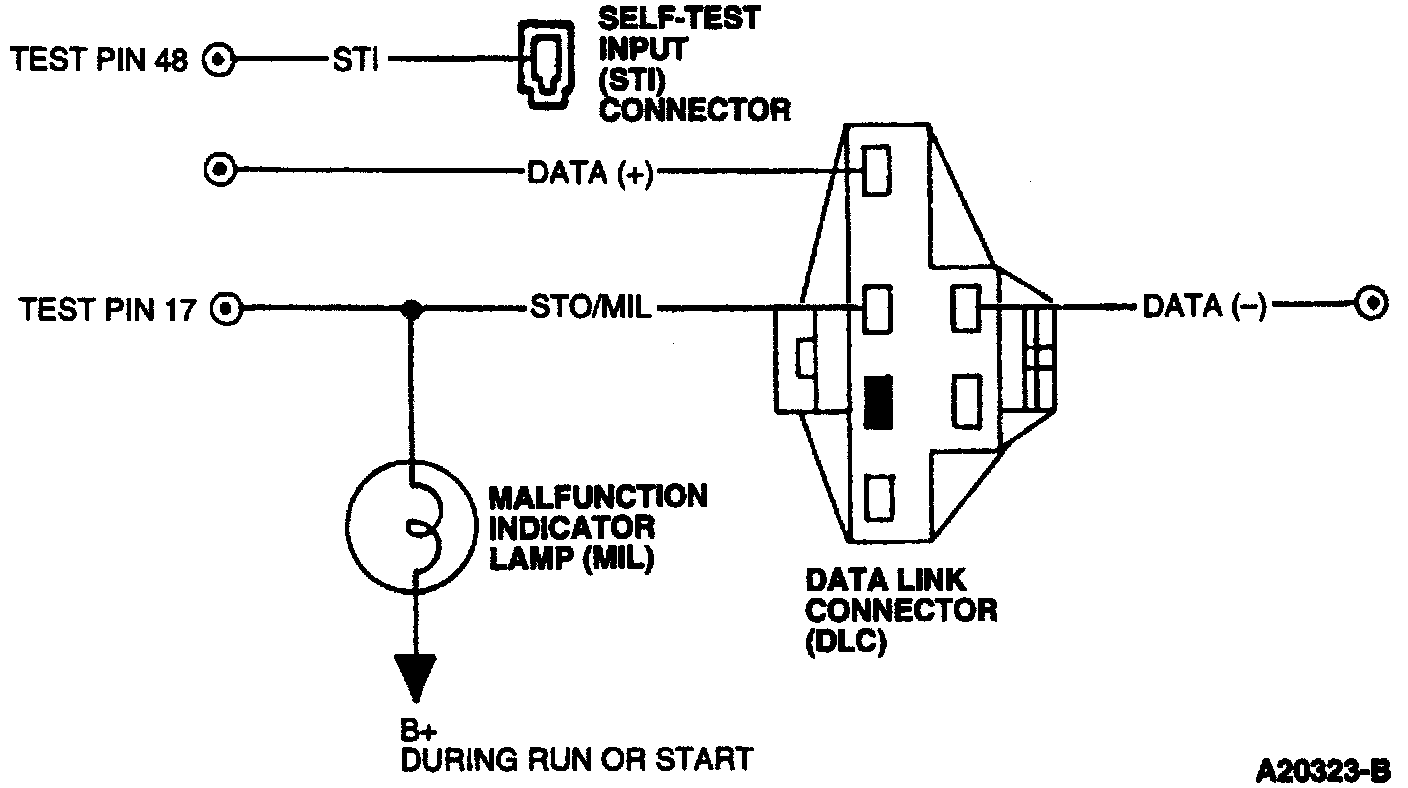

ML - Testing Schematic
Data Link Connector:
CIRCUIT / PIN / WIRE COLOR
STO/MIL / 17 / tan/red
STI / 48 / brown
DATA (+) / 18 / tan/orange
DATA (-) / 19 / pink/light blue
CIRCUIT / PIN / WIRE COLOR
STO/MIL / 17 / tan/red
STI / 48 / brown
DATA (+) / 18 / tan/orange
DATA (-) / 19 / pink/light blue
