Home >> Mercury >> 1994 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Component Tests

Component Tests

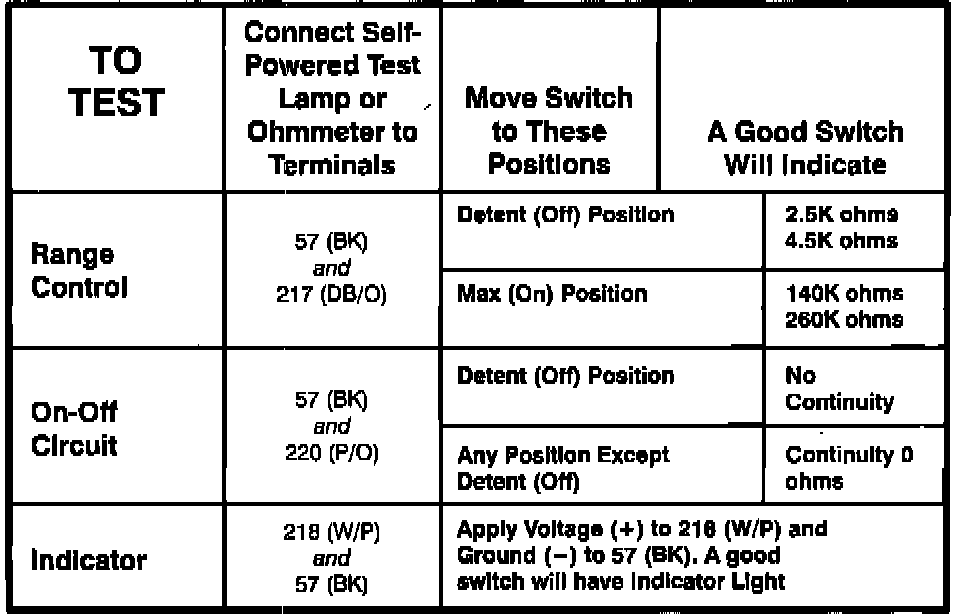

Component Testing Procedure:

COMPONENT TESTING PROCEDURE

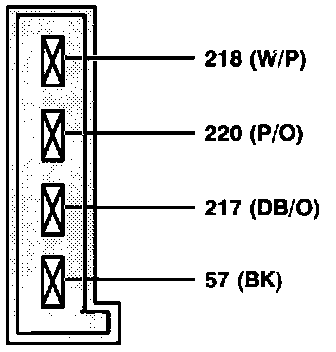

Autolamp Time Control Switch - Terminal Locations:

TERMINAL IDENTIFICATION

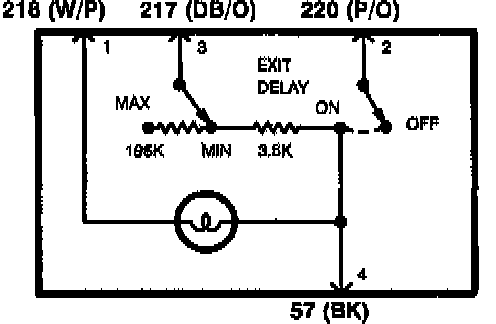

Schematic:

SCHEMATIC
