Home >> Mercury >> 1994 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Manual A/C-Heater >> F: Insufficient or No A/C Cooling >> F3-F7

F3-F7

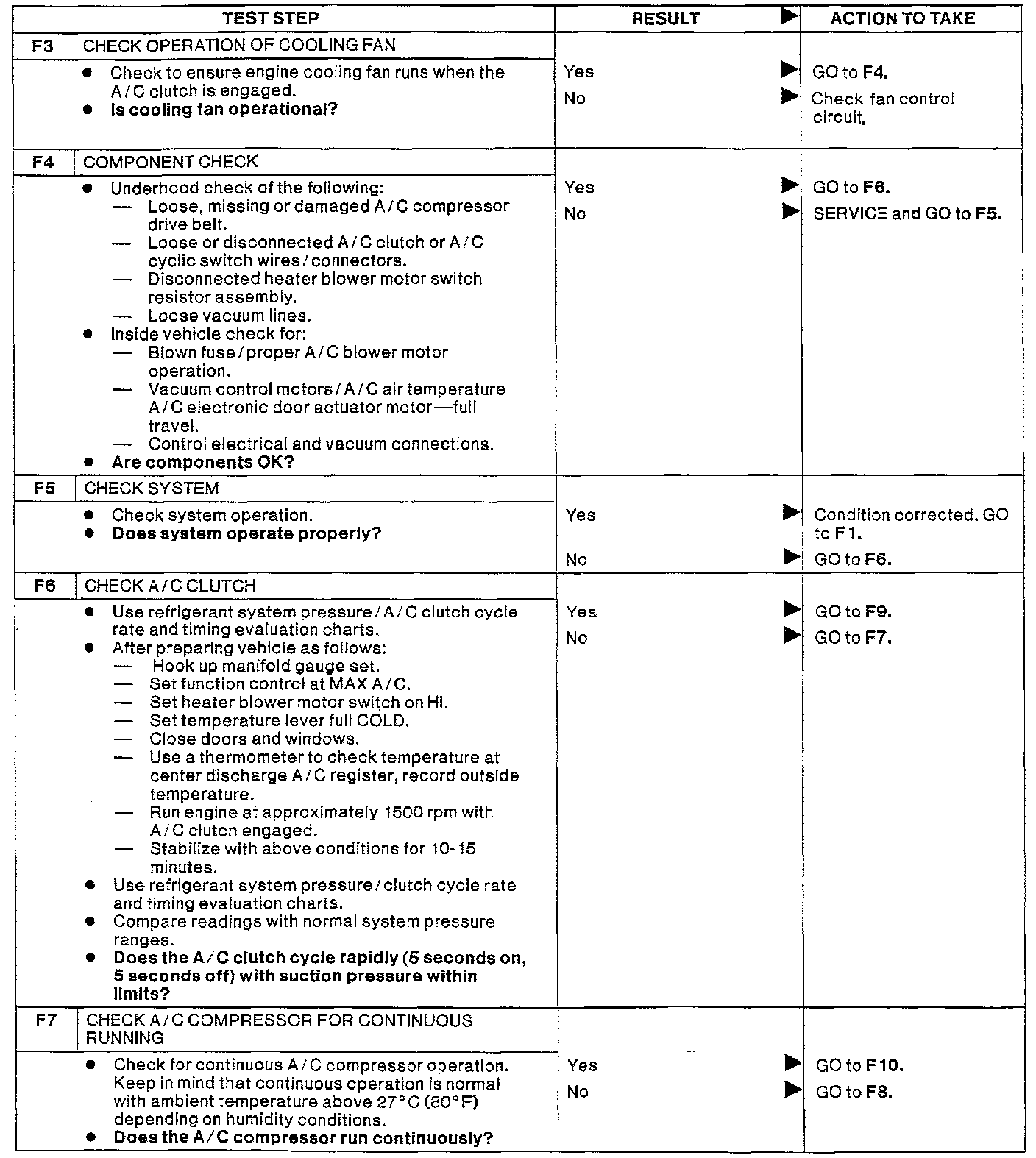

Pinpoint Test F3 - F7 - Insufficient or No A/C Cooling:
