E: Magnetic A/C Clutch Circuit Diagnosis


Electrical Schematics:

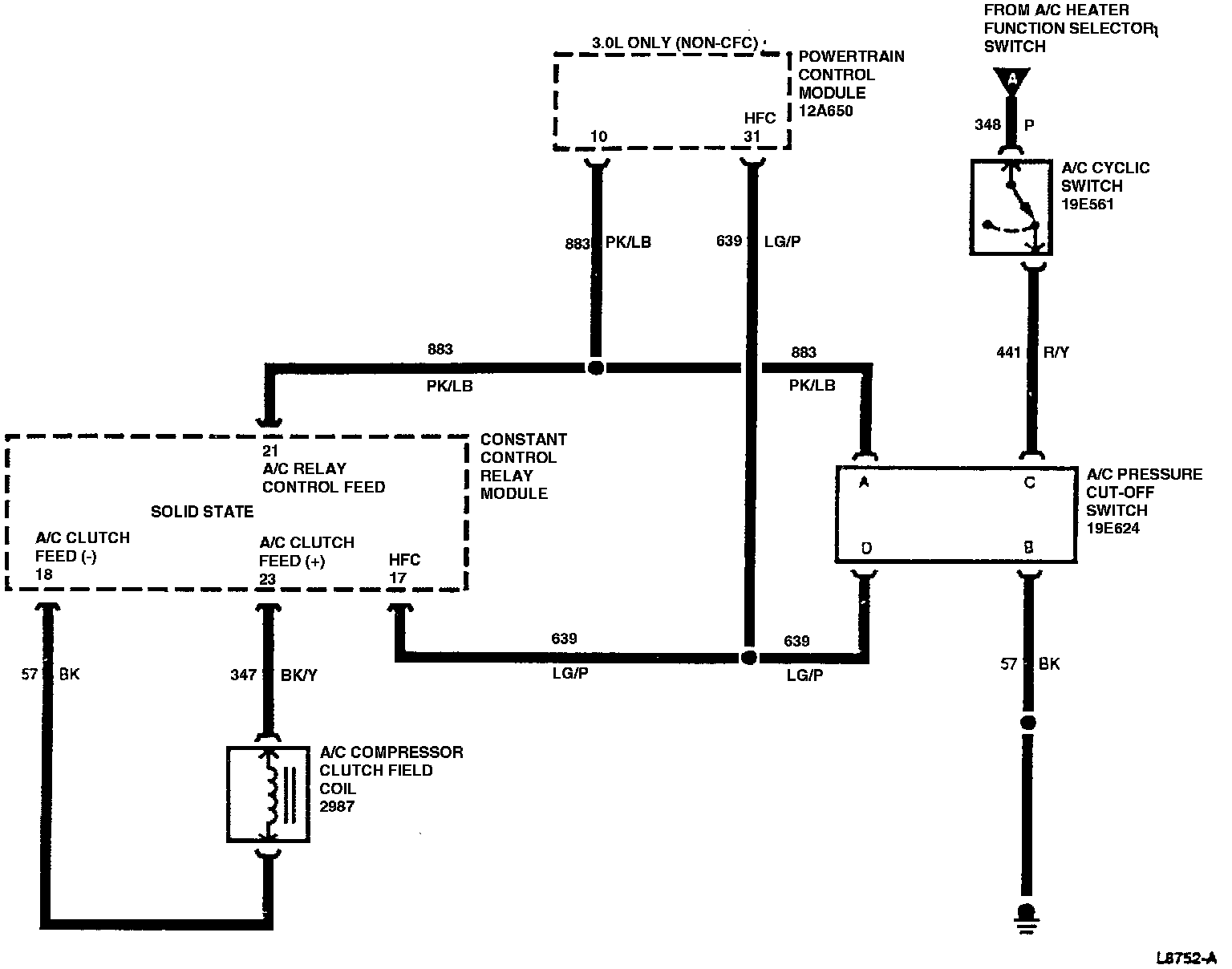

EATC Control System (Part 1):

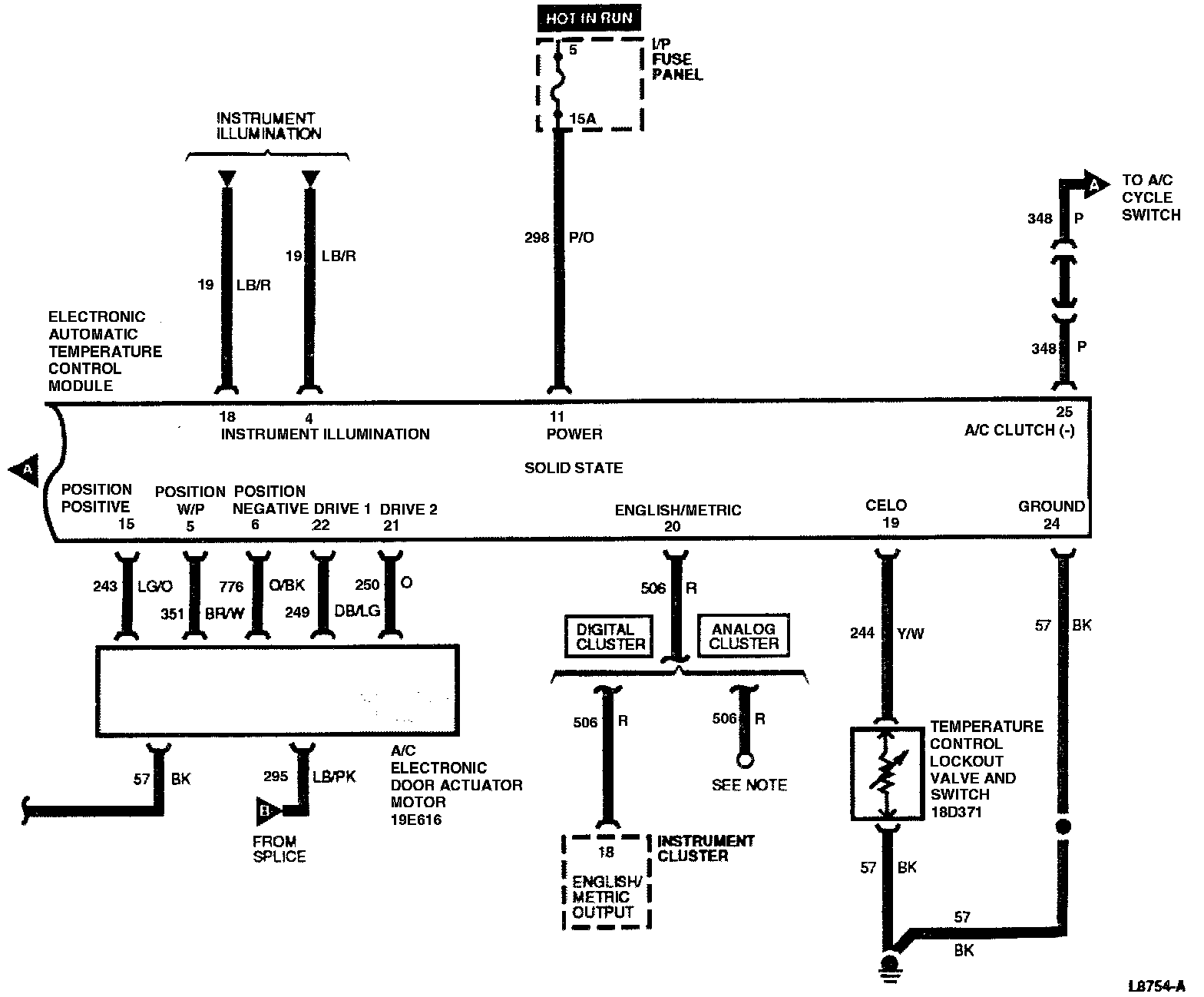

EATC Control System (Part 2):

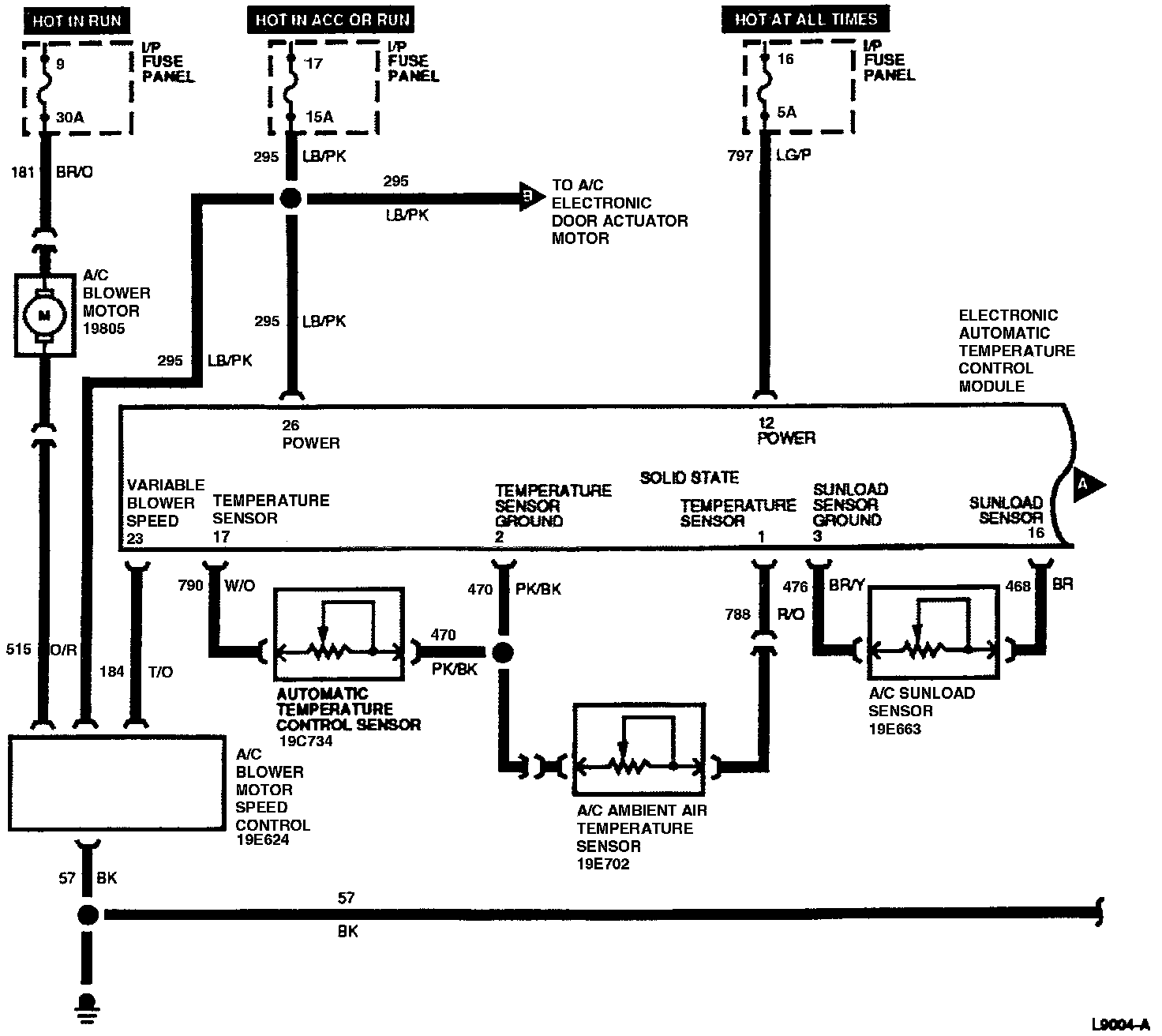

EATC Control System (Part 3):







Pinpoint Tests:

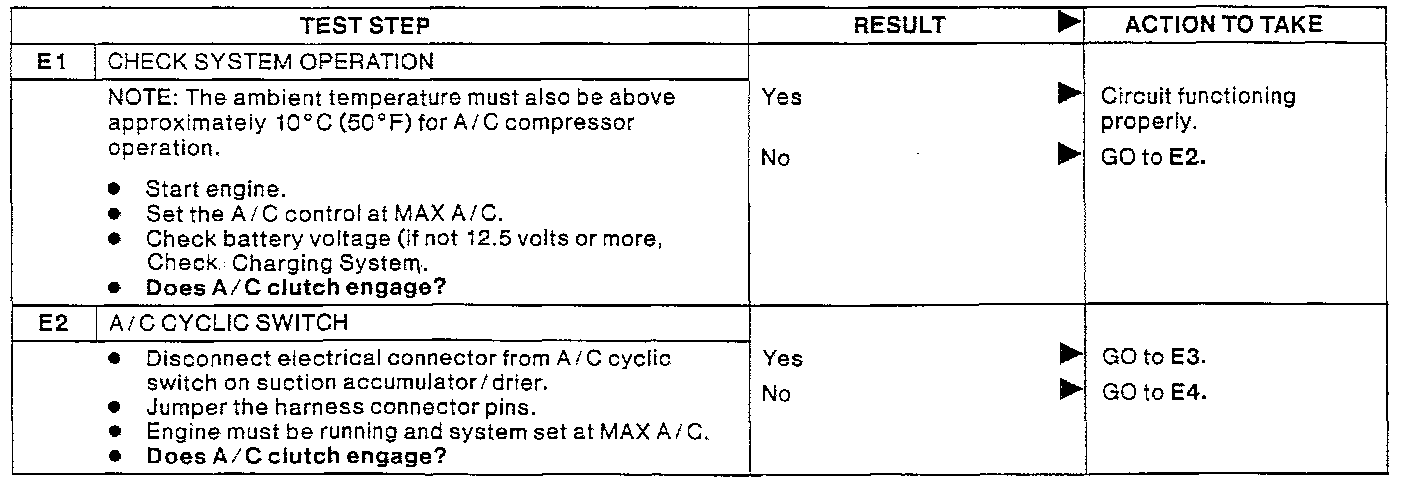

Pinpoint Test E1 - E2:





Pinpoint Test E3 - E9:





Pinpoint Test E10 - E13:





Pinpoint Test E14:
