Home >> Mercury >> 1994 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> With Column Shift

With Column Shift

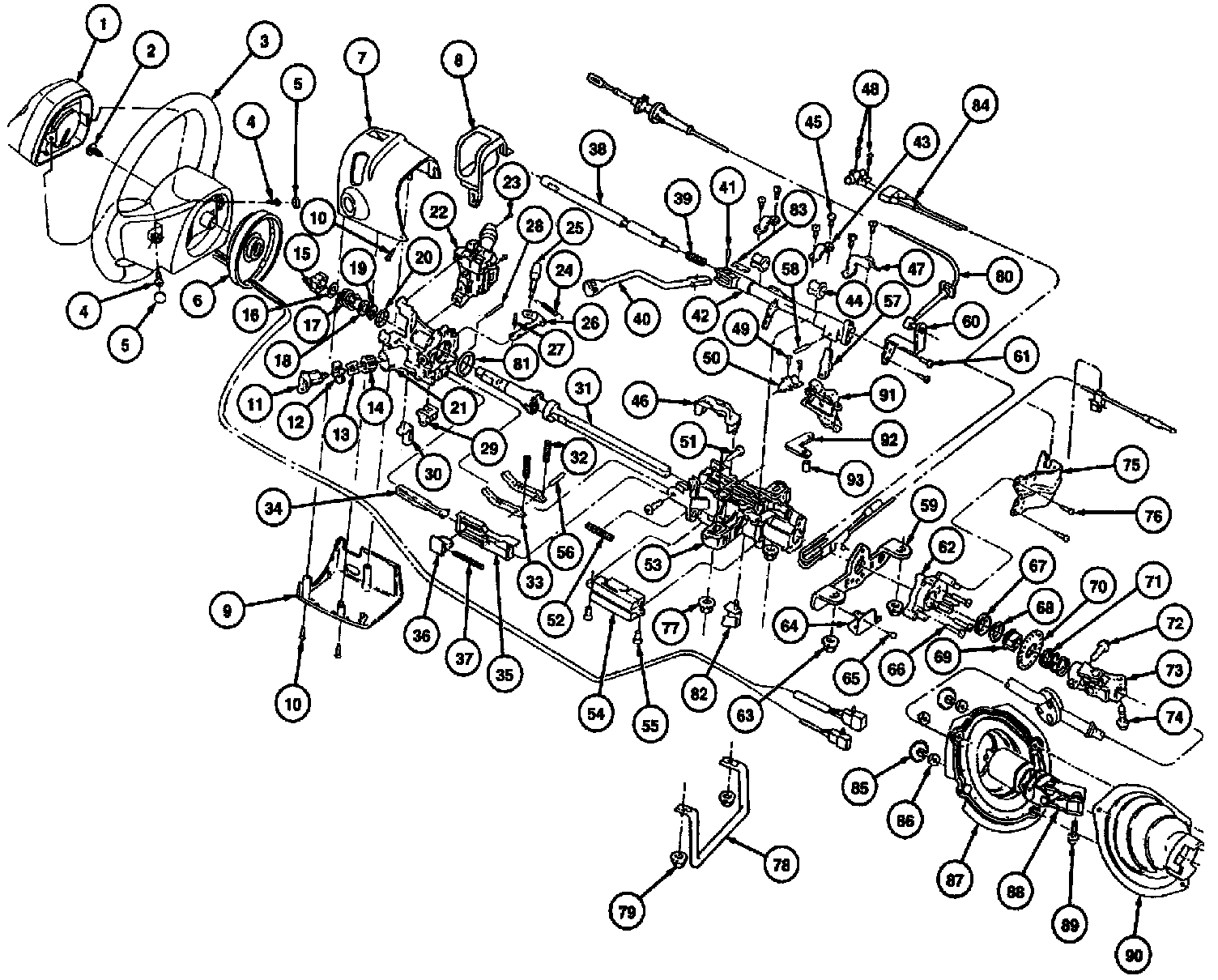

Steering Column (Part 1 Of 2):

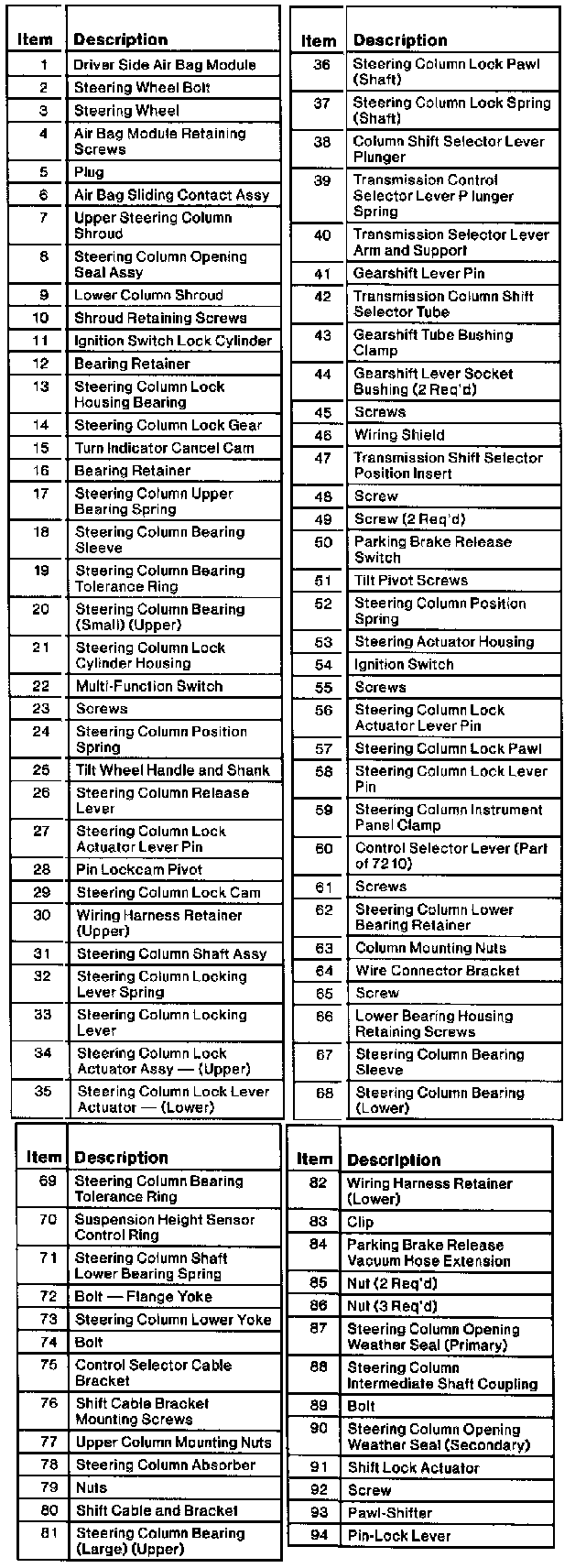

Steering Column (Part 2 Of 2):
