Fuse 4 (COOLING FAN)

Fuse 4 (COOLING FAN) - protects the following circuits:
- Constant Control Relay Module
- Fan Dropping Resister

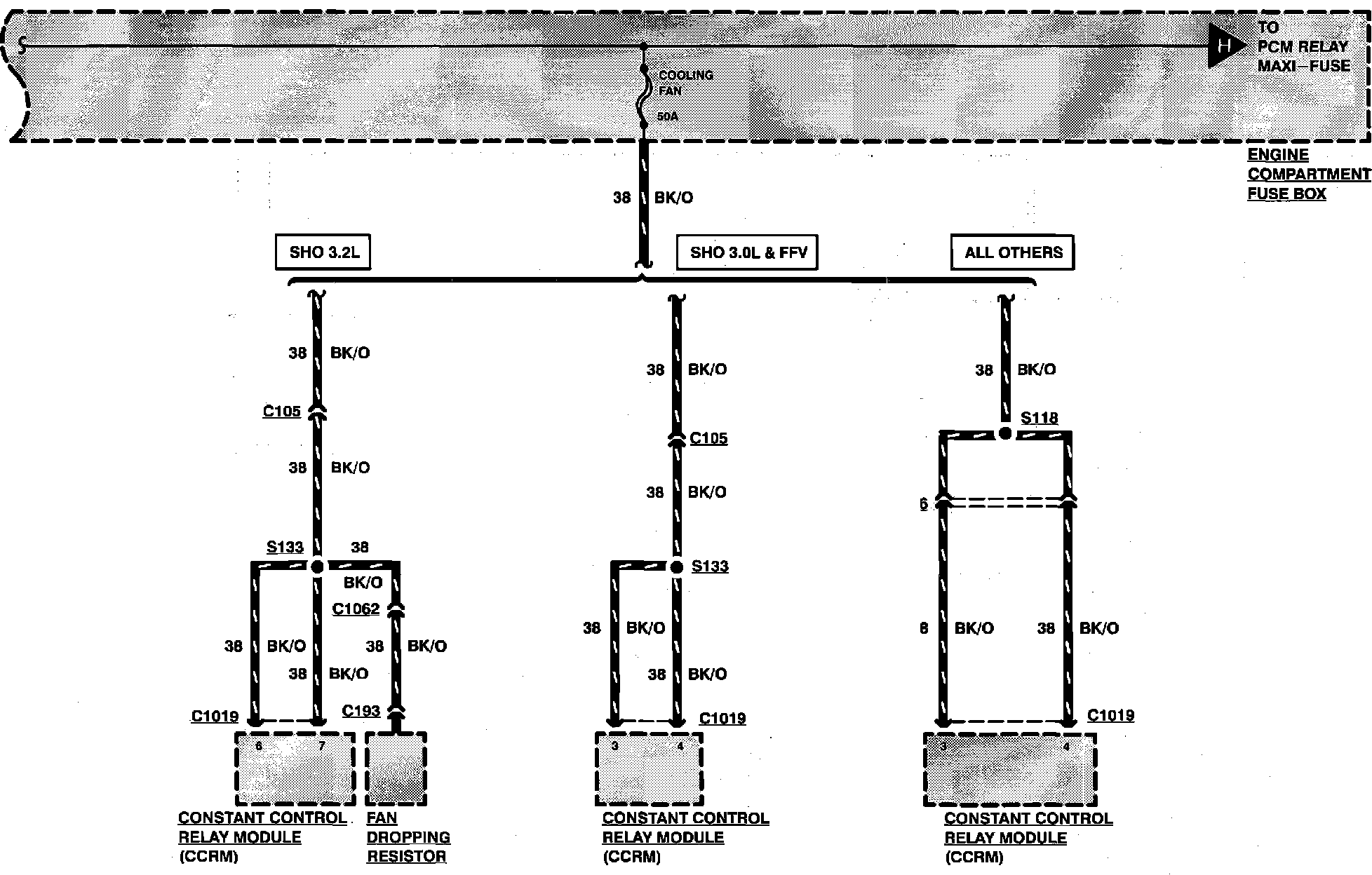

Power Distribution:
