Center Radiator Sensor

WARNING: THE ELECTRICAL CIRCUIT NECESSARY FOR SYSTEM DEPLOYMENT IS POWERED DIRECTLY FROM THE BATTERY. TO AVOID ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY, THE POSITIVE BATTERY CABLE MUST BE DISCONNECTED PRIOR TO SERVICING OR REPLACING ANY SYSTEM COMPONENTS.

REMOVAL

NOTE: To service stripped center radiator primary crash sensor retaining screw at center radiator primary crash front air bag sensor and bracket, use screw. Tighten to 13-17 Nm (10-12 lb ft).

1. Disconnect negative battery cable.
2. Disconnect battery positive cable and wait one minute for back-up power supply energy to be depleted.
3. Remove radiator upper sight shield.
4. Disconnect center radiator primary crash sensor electrical connector.

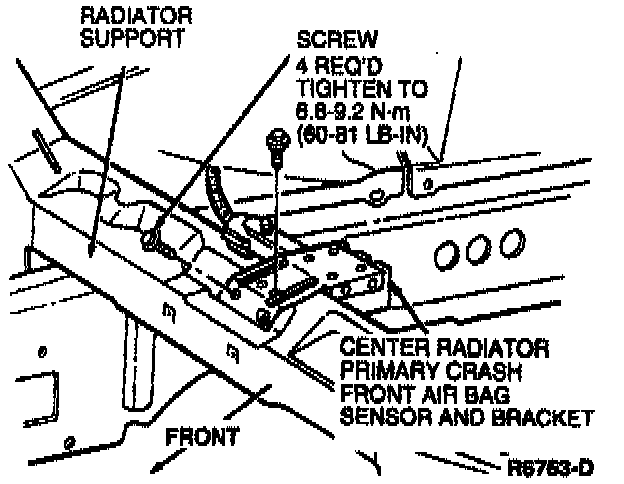

5. Remove four screws retaining center radiator primary crash front air bag sensor and bracket to radiator support. Remove center radiator primary crash front air bag sensor and bracket from vehicle.

INSTALLATION
1. Position center radiator primary crash front air bag sensor and bracket with arrow on top pointing toward front of vehicle and secure to radiator support with four screws. Tighten screws to 6.8-9.2 Nm (60-81 lb in).
