Turn Signal and Windshield Wiper Switch Continuity Test

Turn Signal and Windshield Wiper Switch Continuity Test

Test for electrical malfunctions with continuity tester and an ohmmeter, such as Rotunda Digital Multimeter 007-00001 or equivalent.

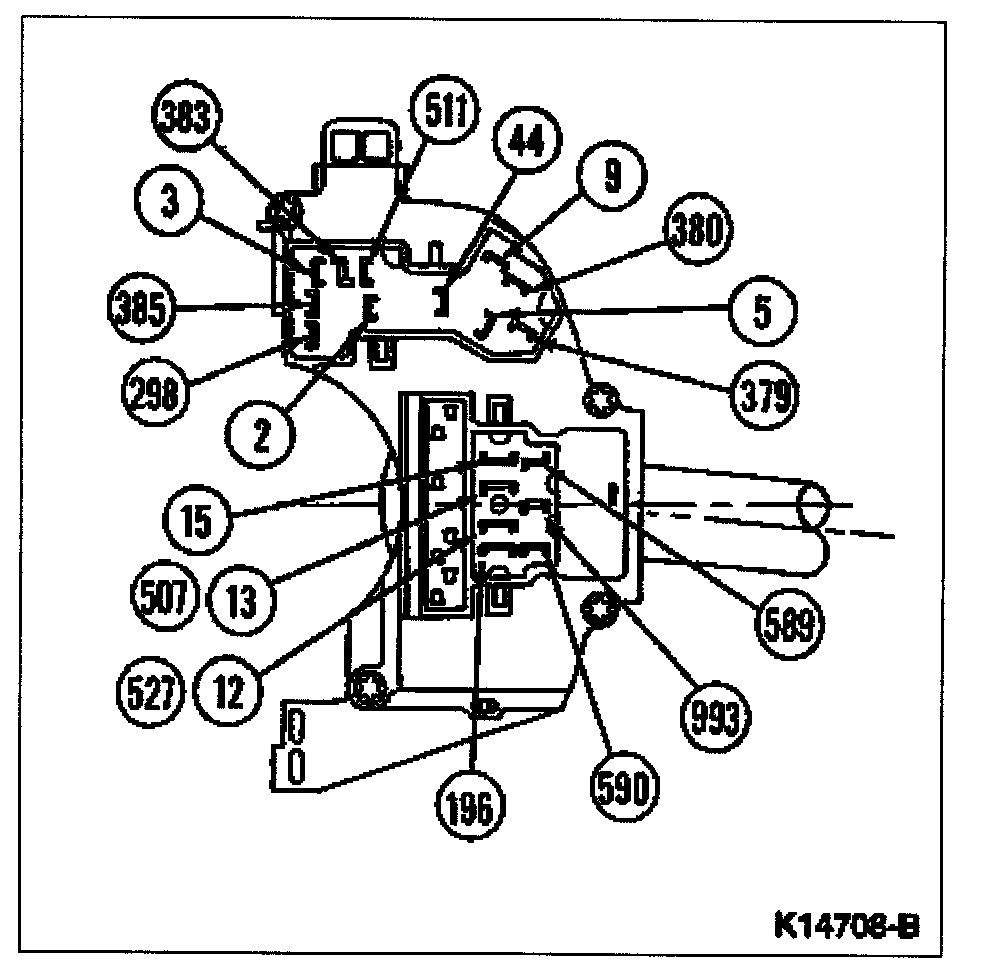

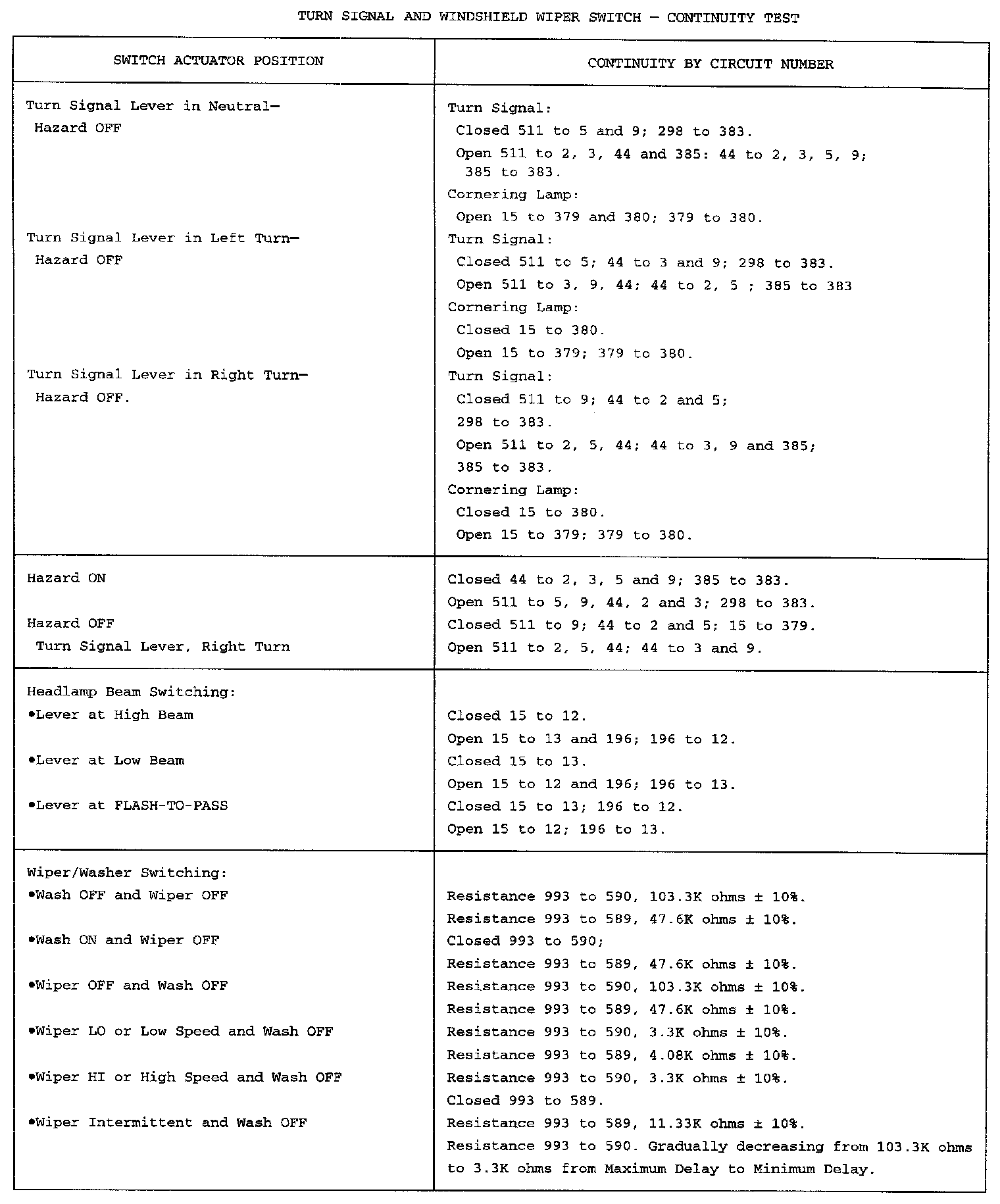

Refer to the diagnostic charts and the illustration to resolve concerns with the turn signal and windshield wiper switch.
