Multi-Function Switch Component Testing Procedures




COMPONENT TESTING PROCEDURES

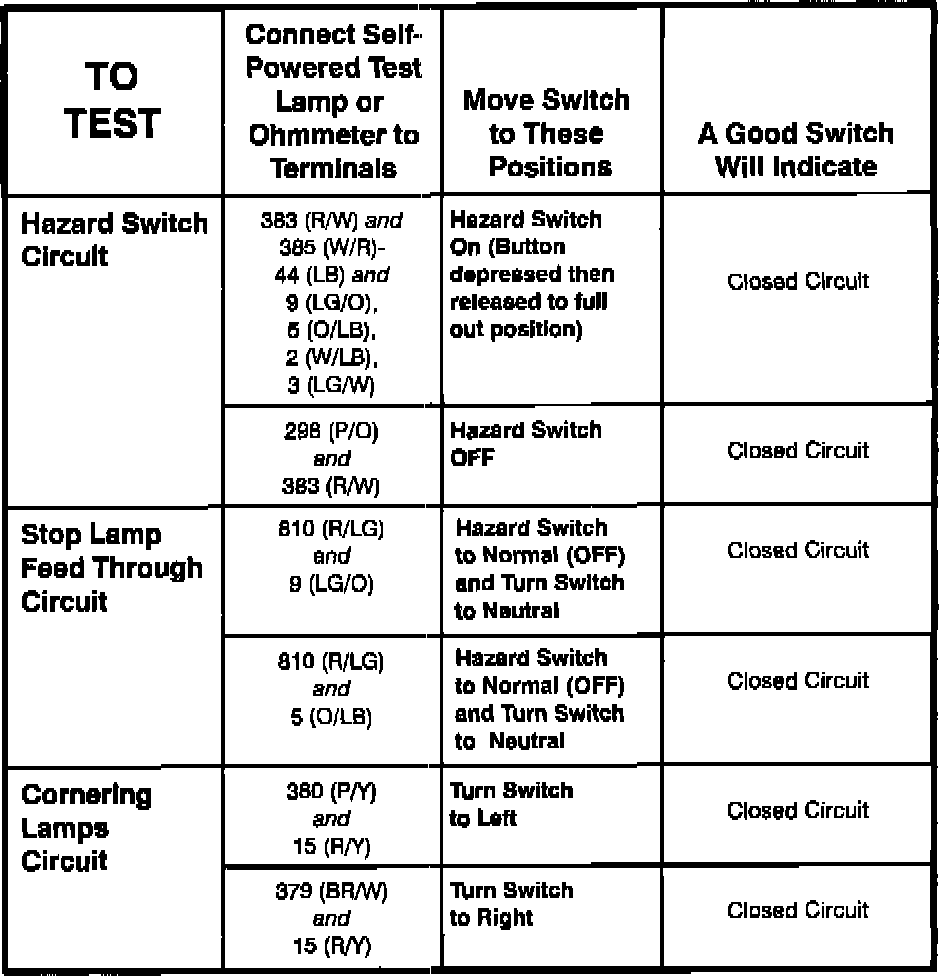

Component Testing Procedure:

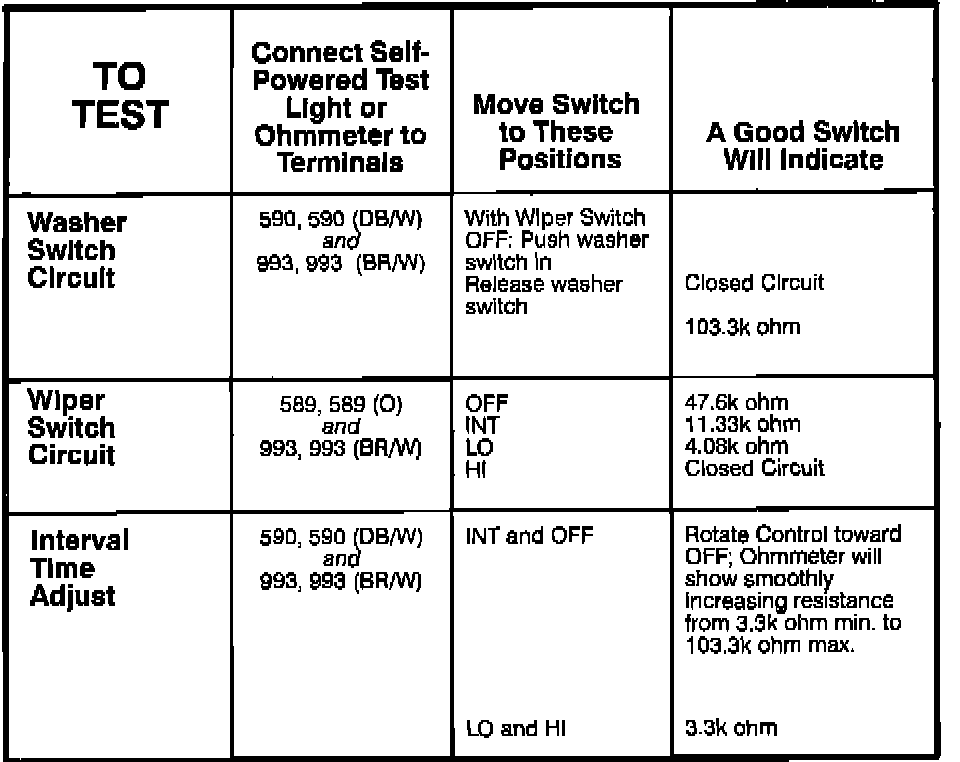

Component Testing Procedure:

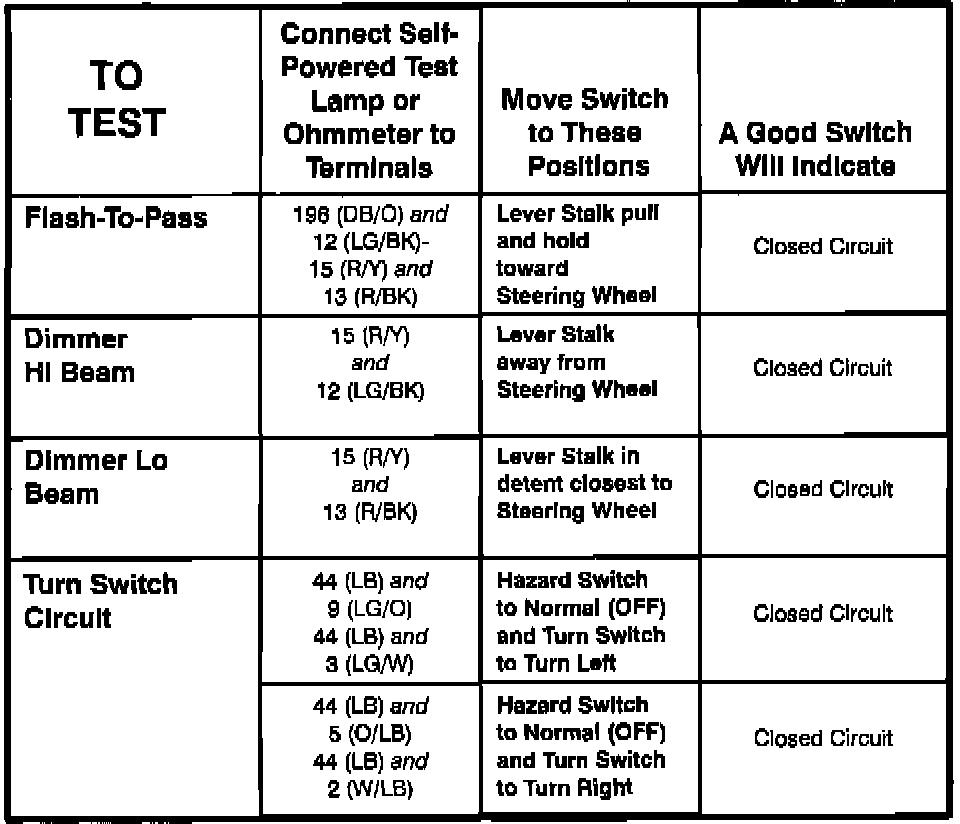

Component Testing Procedure:






TERMINAL IDENTIFICATION

Terminal ID:






SCHEMATIC

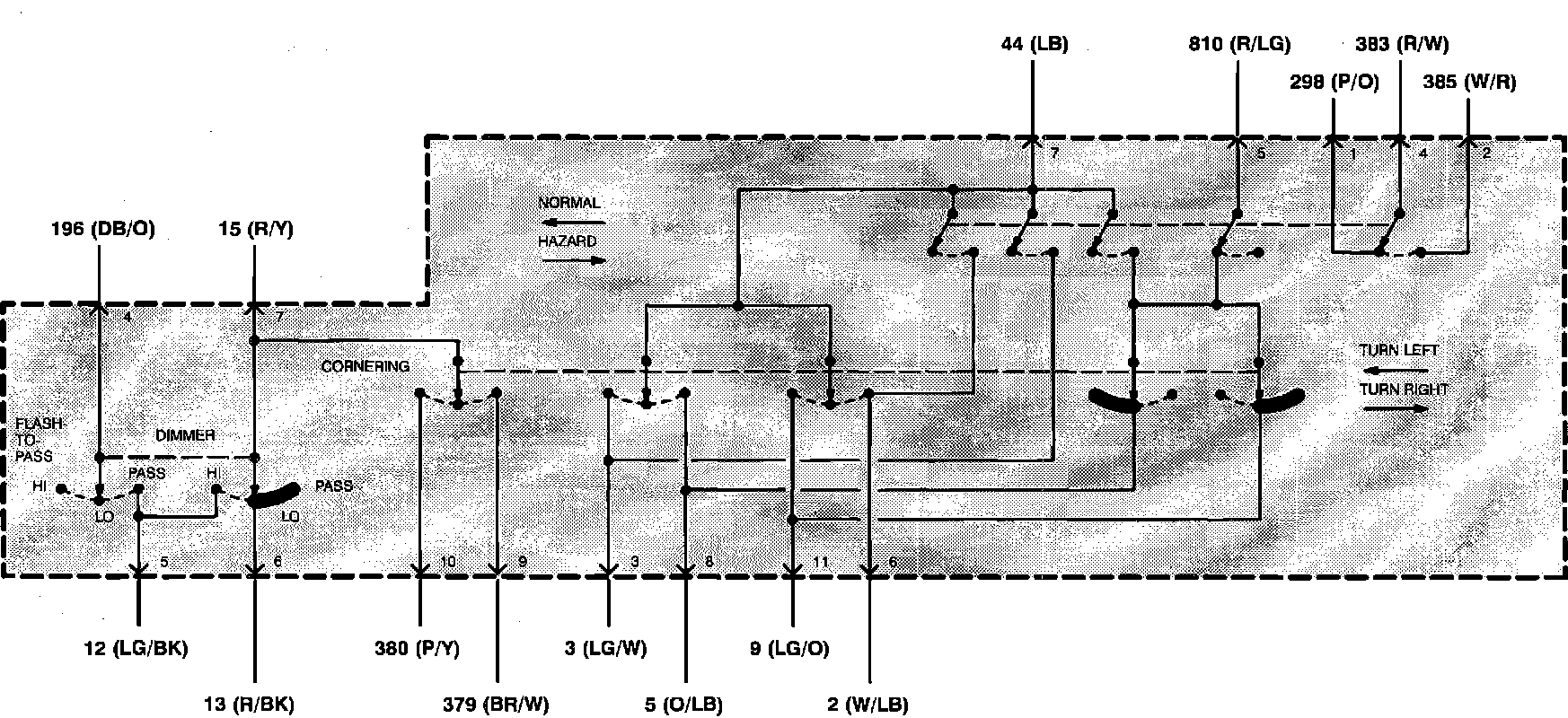

Schematic:





Schematic:
