Ambient Temperature Sensor / Switch HVAC: Description and Operation

A/C Ambient Air Temperature Sensor:

A/C AMBIENT AIR TEMPERATURE SENSOR

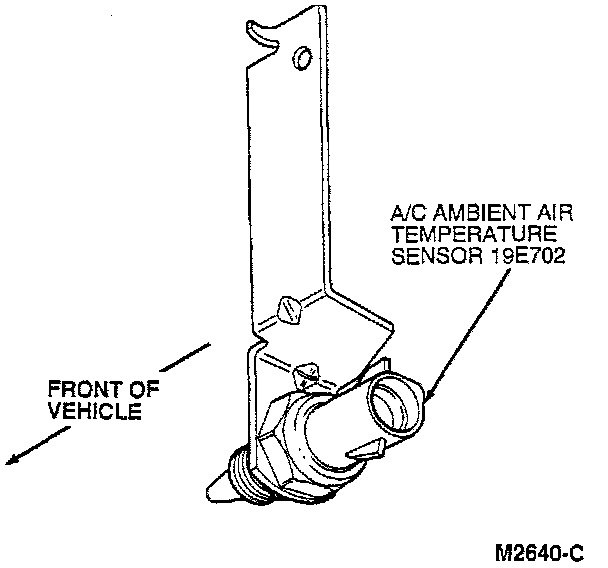

The A/C ambient air temperature sensor and bracket:
^ Is located in front of the A/C condenser core on the LH side of the vehicle.
^ Contains a thermistor which measures the temperature of the outside air.
^ Sends the temperature reading to the control assembly.
