Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> 42: Center Radiator Primary Crash Sensor Feed Circuit Open >> Electrical Schematic

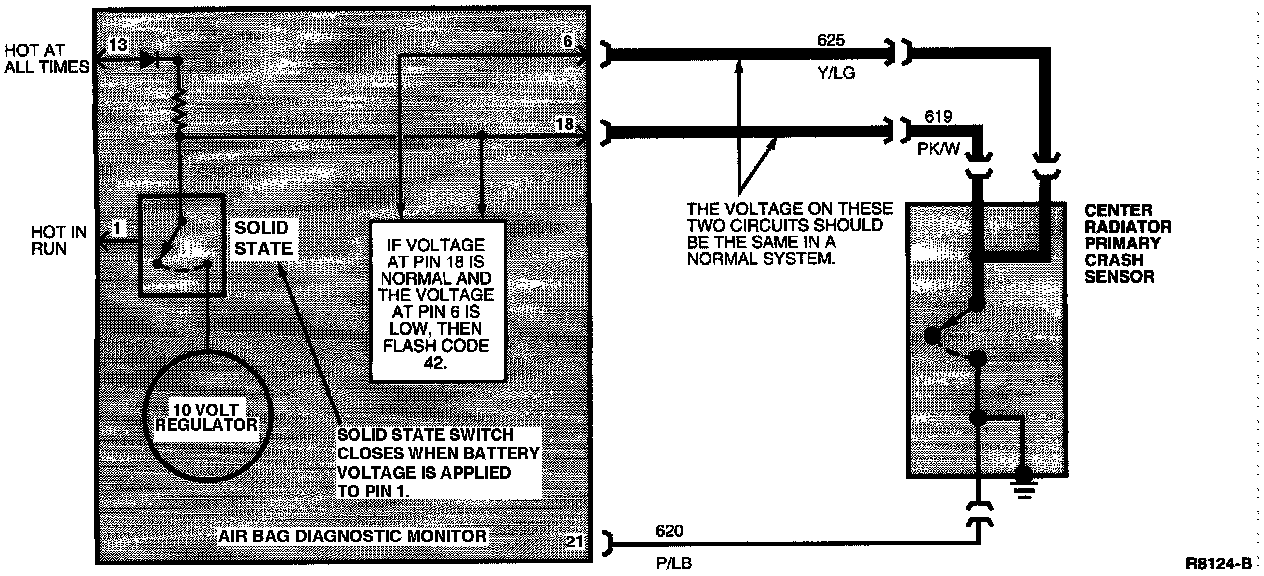

Electrical Schematic
