Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

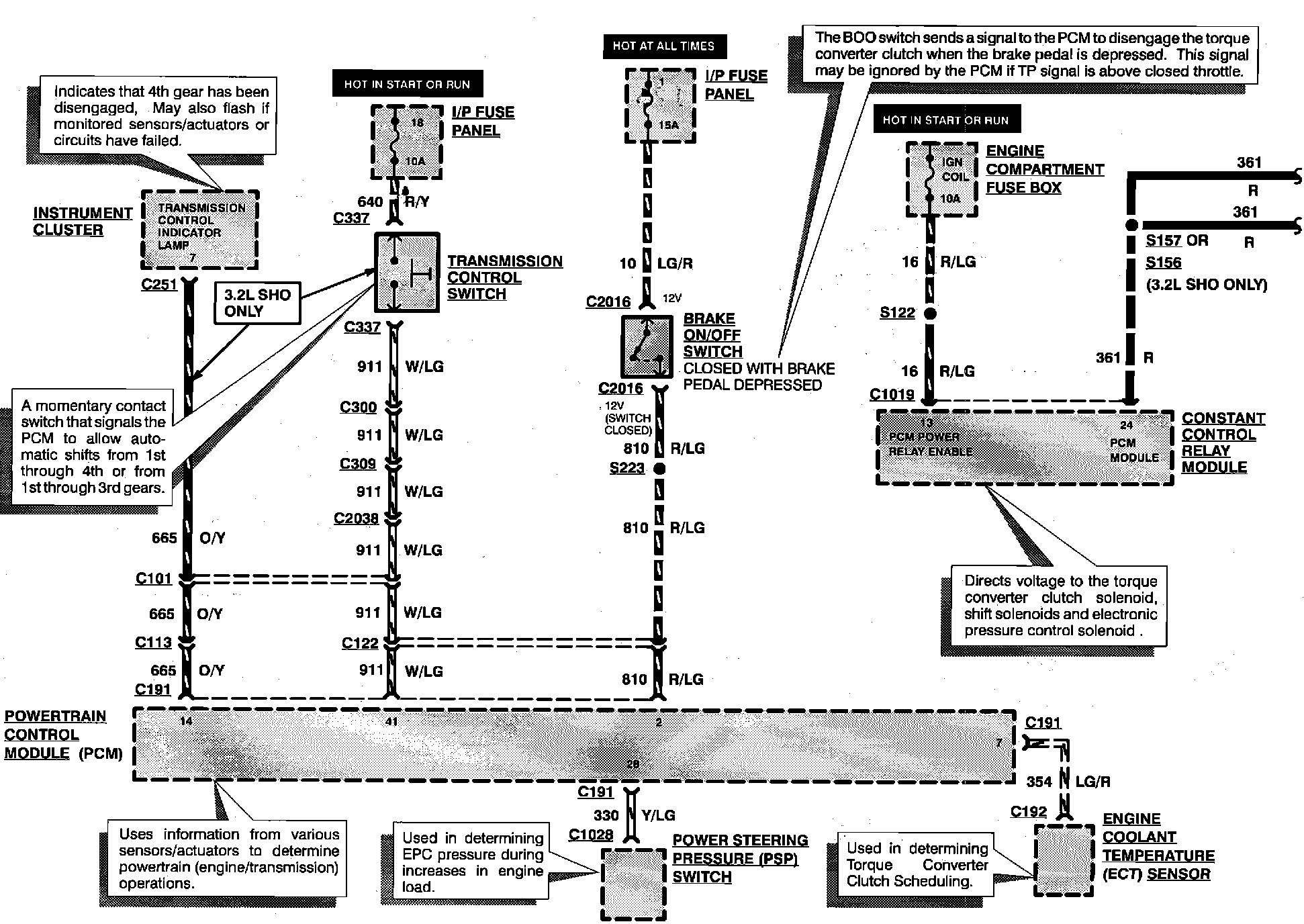

AX4N/AX4S Transaxle:

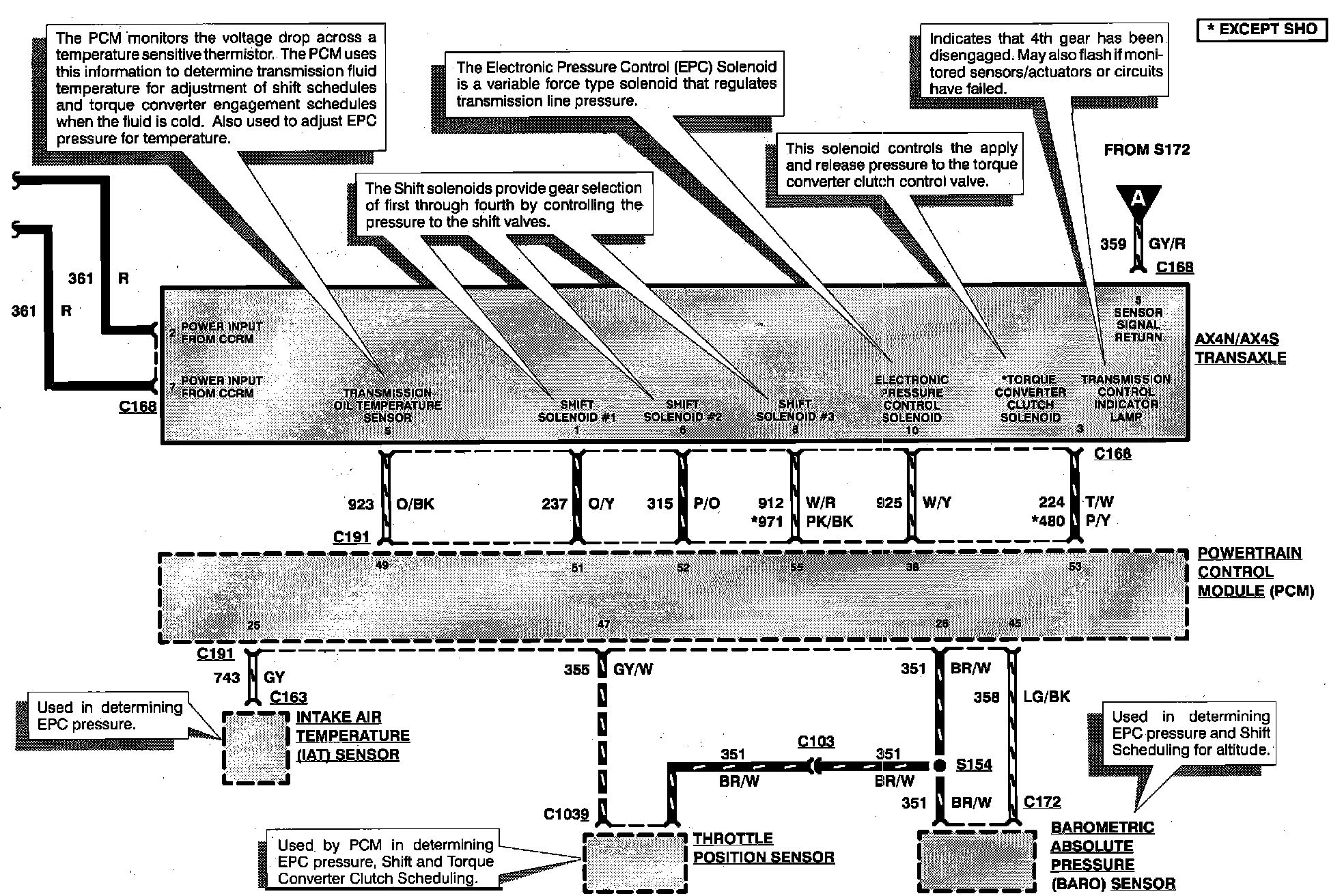

AX4N/AX4S Transaxle:

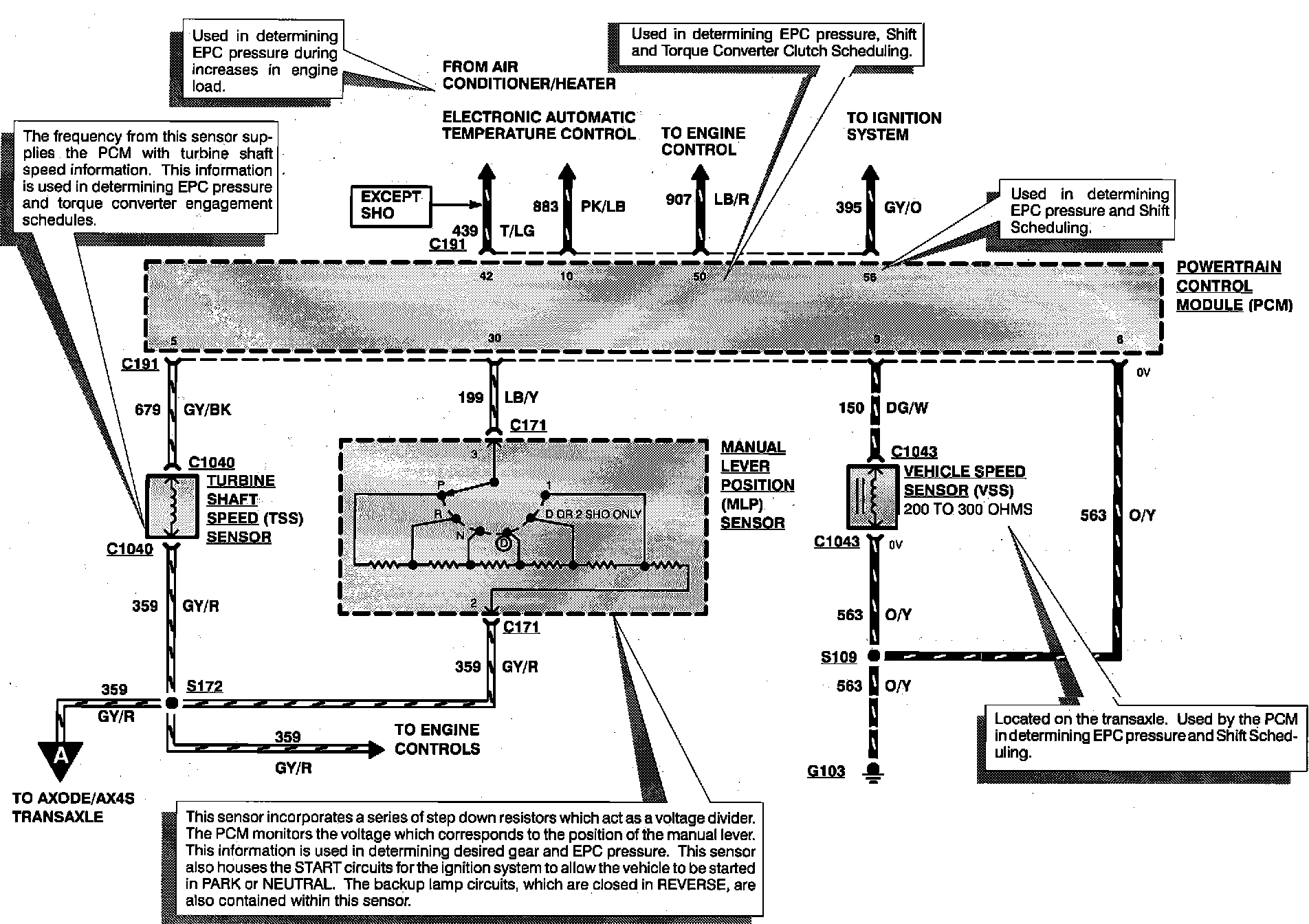

AX4N/AX4S Transaxle:
