DI (Distributor Ignition) Waveforms

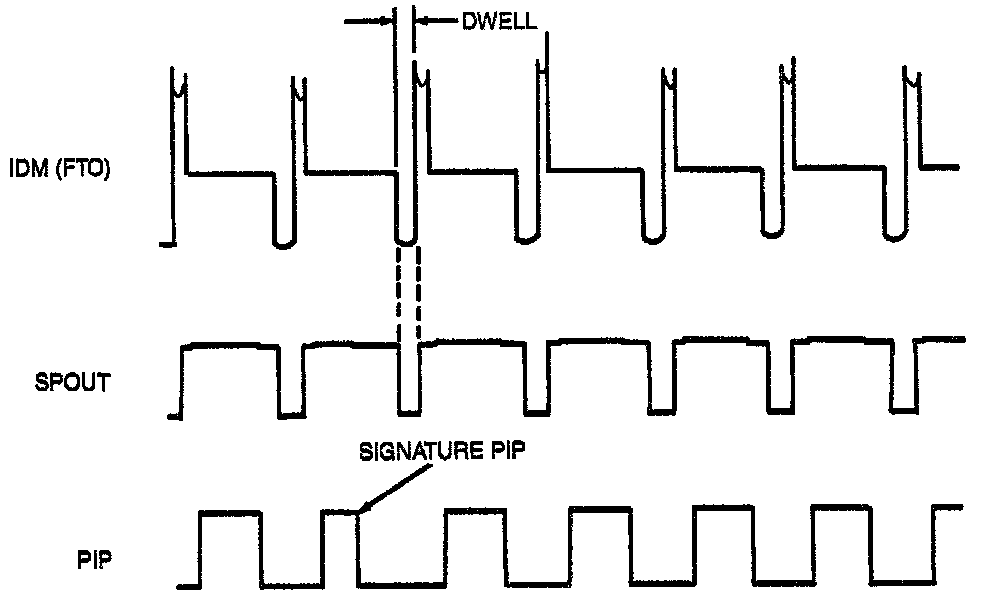

Push Start ICM Waveforms:

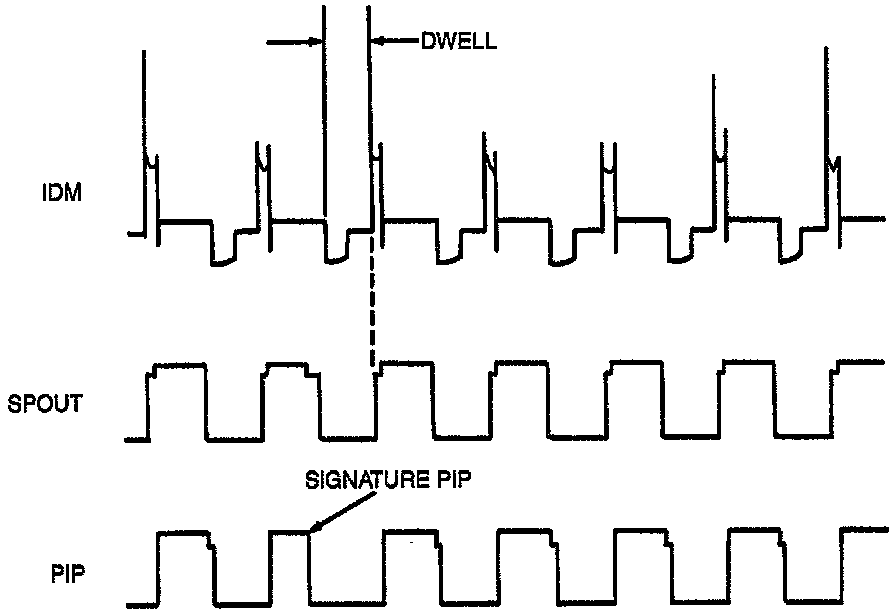

Computer Controlled Dwell ICM Waveforms:
