Evaporative Emission Control Canister: Description and Operation

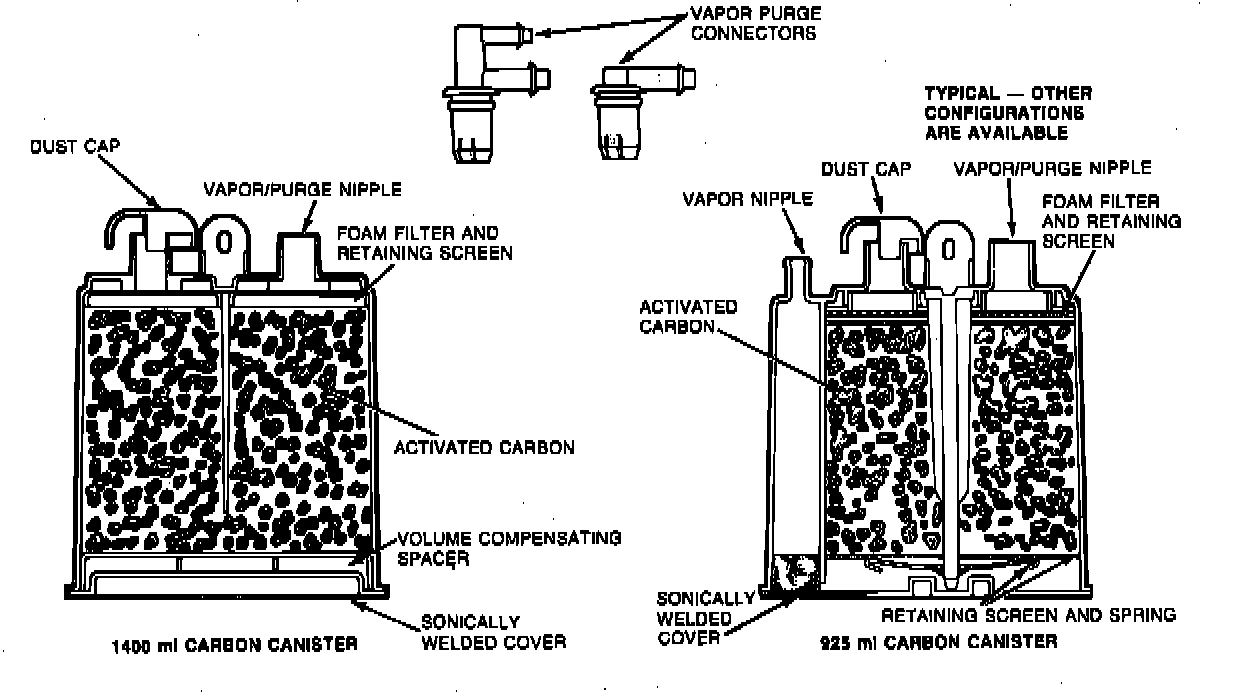

Carbon Canisters, Typical:

PURPOSE
Fuel vapors from the fuel tank and air cleaner assembly are stored in the carbon canister.

OPERATION
When the vehicle is operated, the vapors will purge from the canister into the engine for consumption.
