NA - Testing Schematic

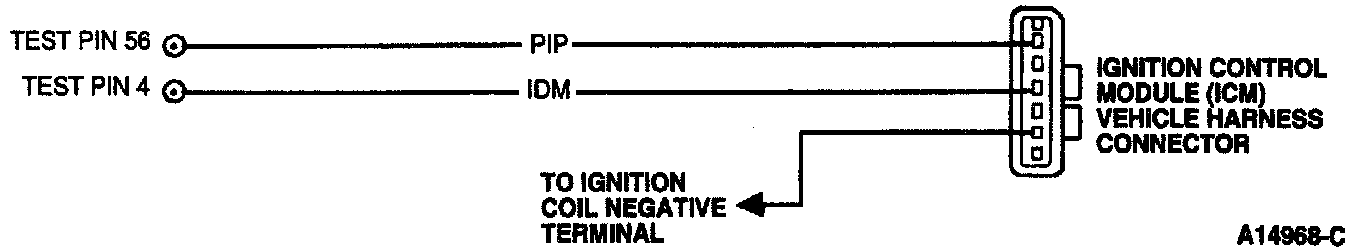

Ignition Diagnostic Monitor Diagram:






CALIFORNIA MODELS

Circuit / Pin number / Wire Color

IDM / 4 / white/pink

49 STATE (FEDERAL) MODELS

Circuit / Pin number / Wire Color

IDM / 4 / dark green/yellow
