KE - Idle Air Control Control Solenoid
>>

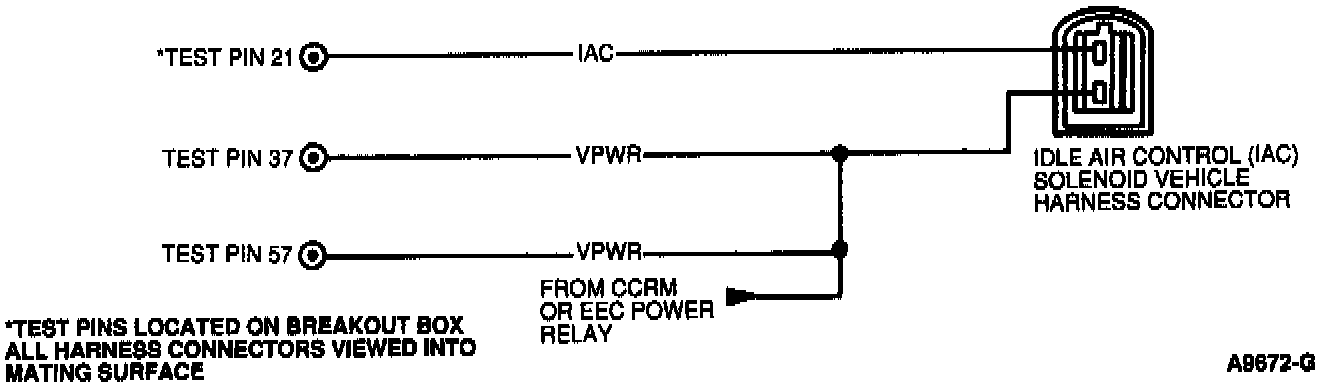

KE - Testing Schematic
KE - Testing Schematic
IAC Connector View:
CIRCUIT / PIN / WIRE COLOR
IAC
/
21
/
brown/white
VPWR
/
37/57
/
red
