PFE Sensor

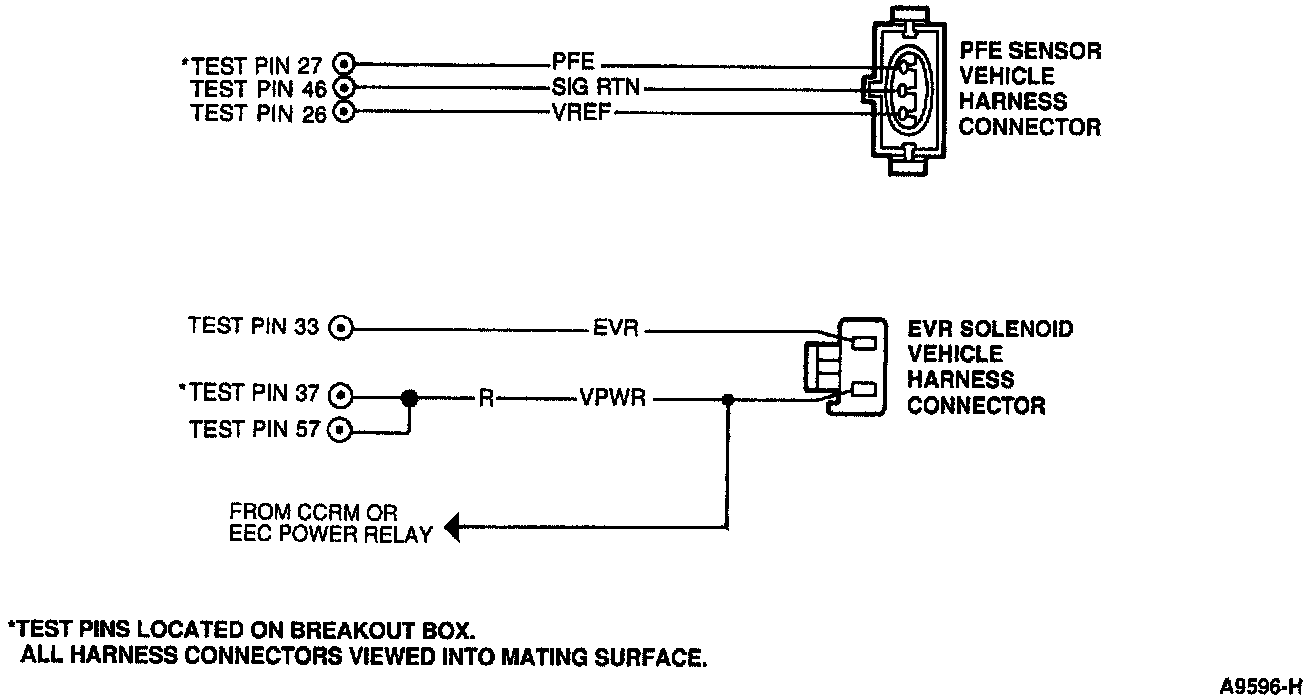

PFE and EVR Connector View:








CIRCUIT / PIN / WIRE COLOR

VREF / 26 / brown/white

EVR / 33 / brown/pink

PFE / 27 / brown/light green

SIG RTN / 46 / gray/red
