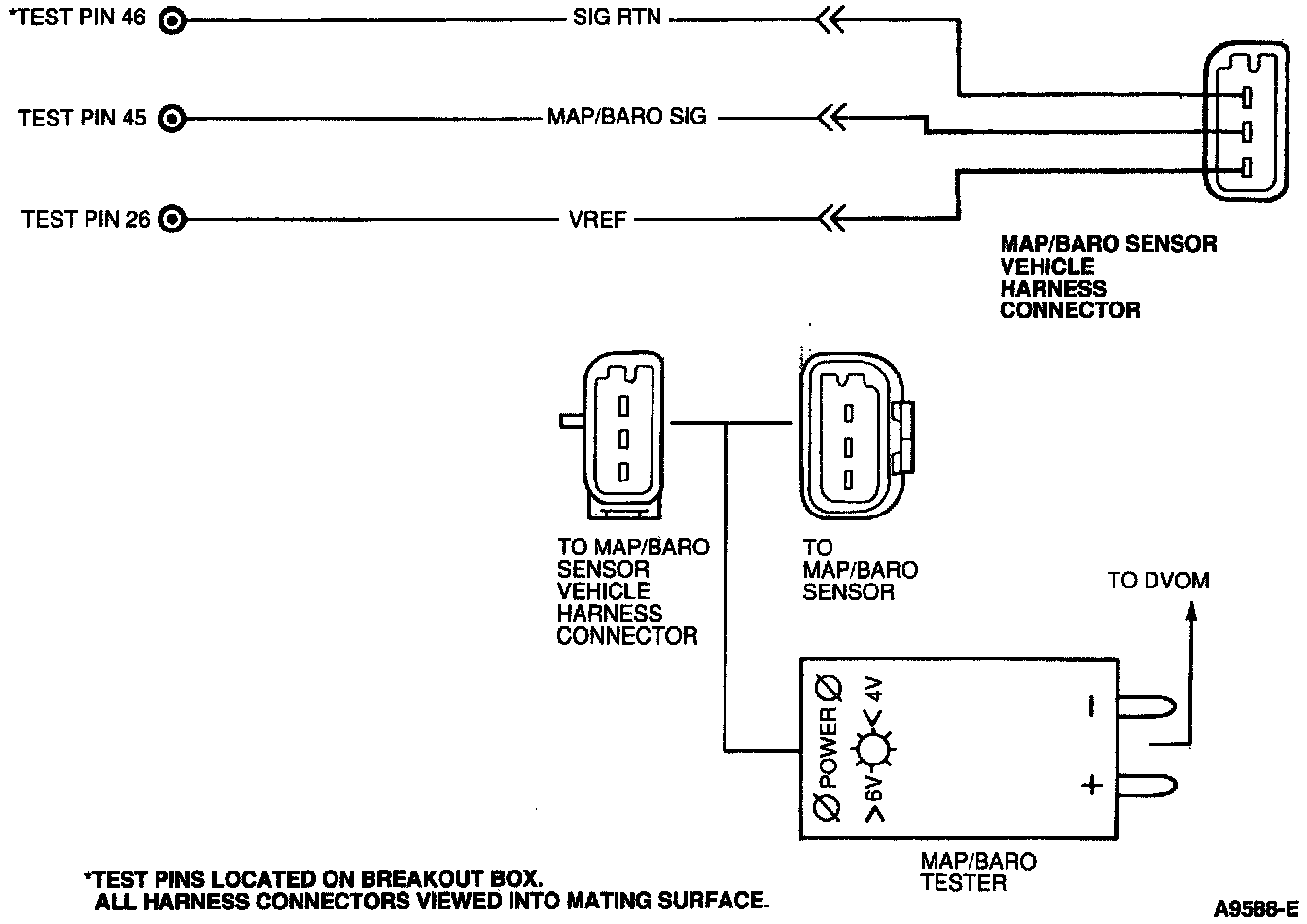

DF - Test Schematic
MAP Sensor Connector View:
CIRCUIT / PIN / WIRE COLOR
MAP/BARO SIG / 45 / light green/black
SIG RTN / 46 / gray/red
VREF / 26 / brown/white
CIRCUIT / PIN / WIRE COLOR
MAP/BARO SIG / 45 / light green/black
SIG RTN / 46 / gray/red
VREF / 26 / brown/white
