Idle Speed/Throttle Actuator - Electronic: Diagrams

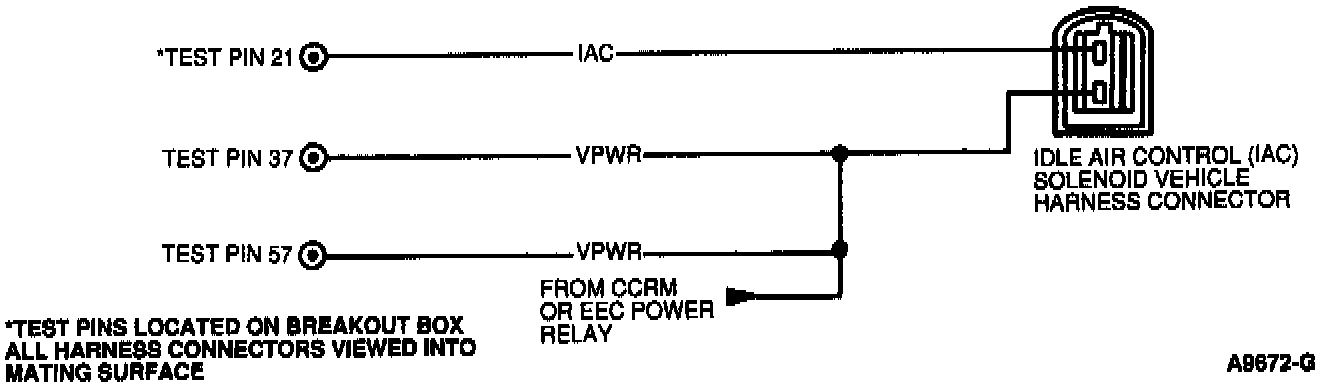

IAC Solenoid:






CIRCUIT / WIRE COLOR

IAC / orange/black

VPWR / red
