Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Locations >> Component Locations >> Vehicle Hoisting and Jacking Points

Vehicle Hoisting and Jacking Points

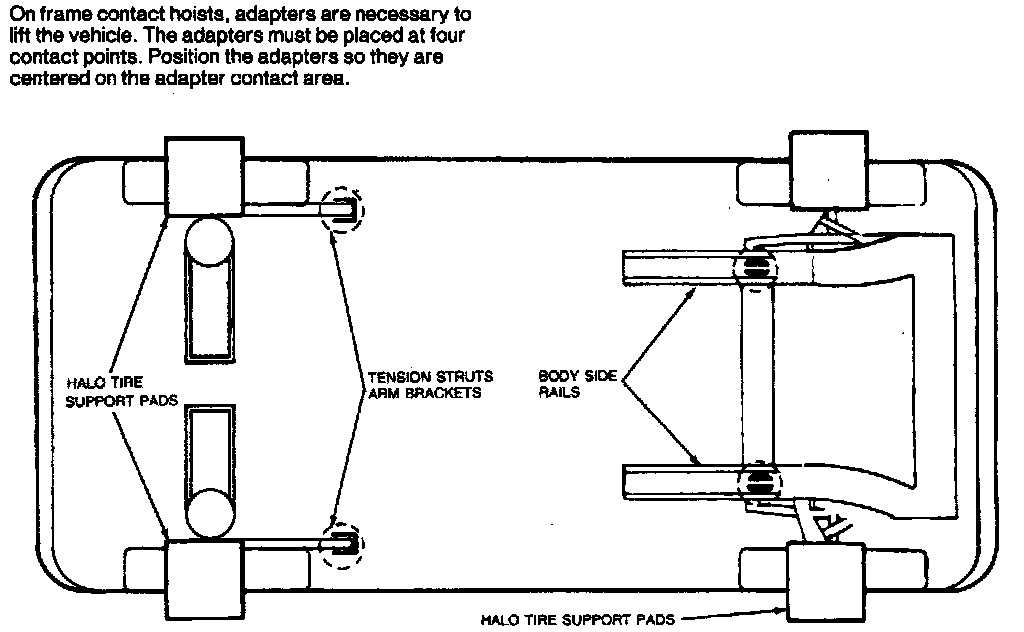

Vehicle Lift Points:
