Speedometer Head: Testing and Inspection
Test D: Speedometer Reads Inaccurately.:

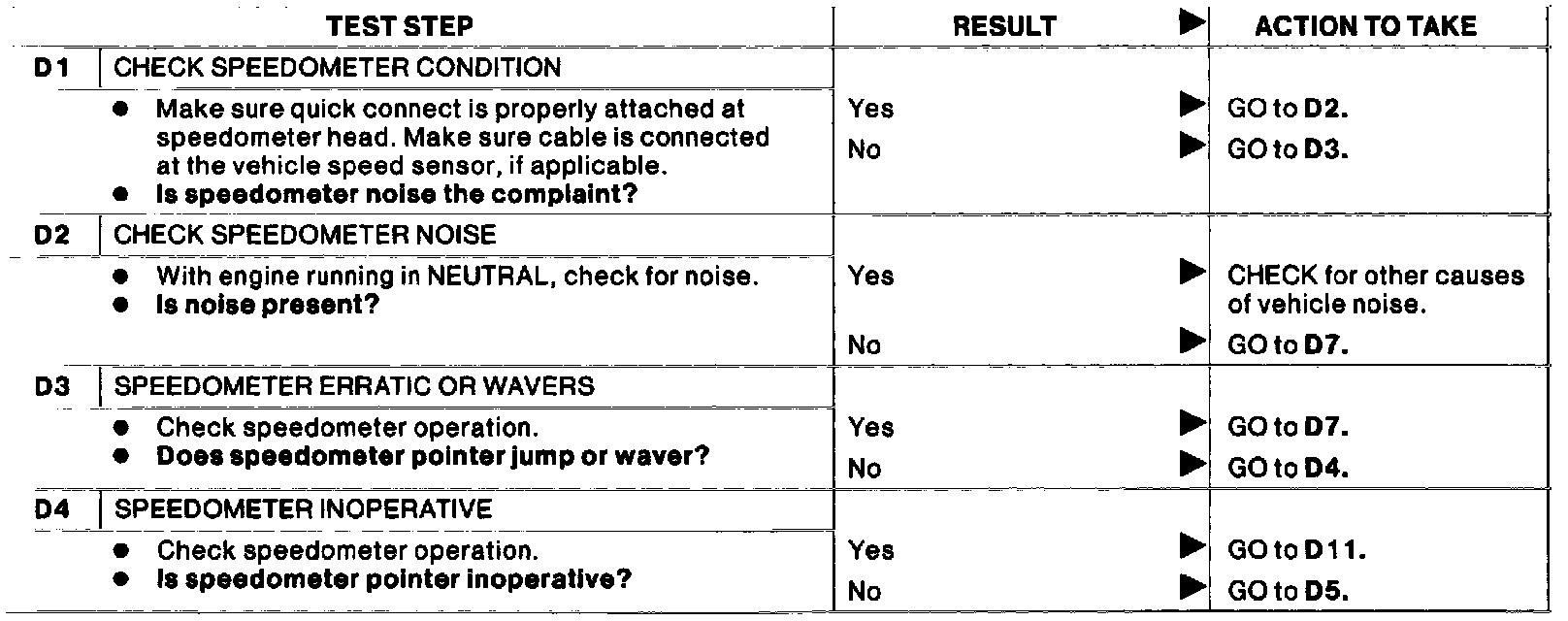

Test D1-D4
Test D: Speedometer Reads Inaccurately.:

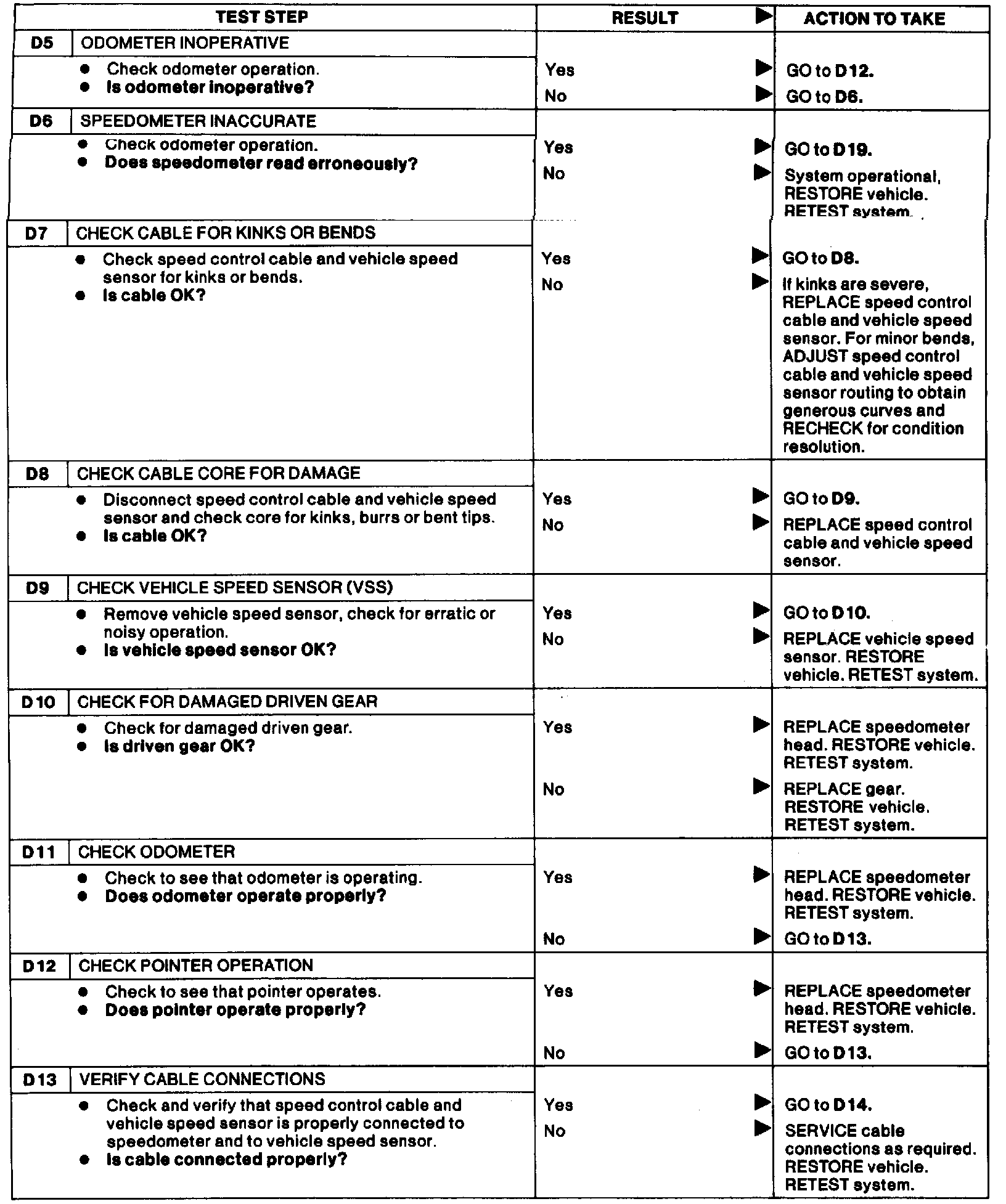

Test D5-D13
Test D: Speedometer Reads Inaccurately.:

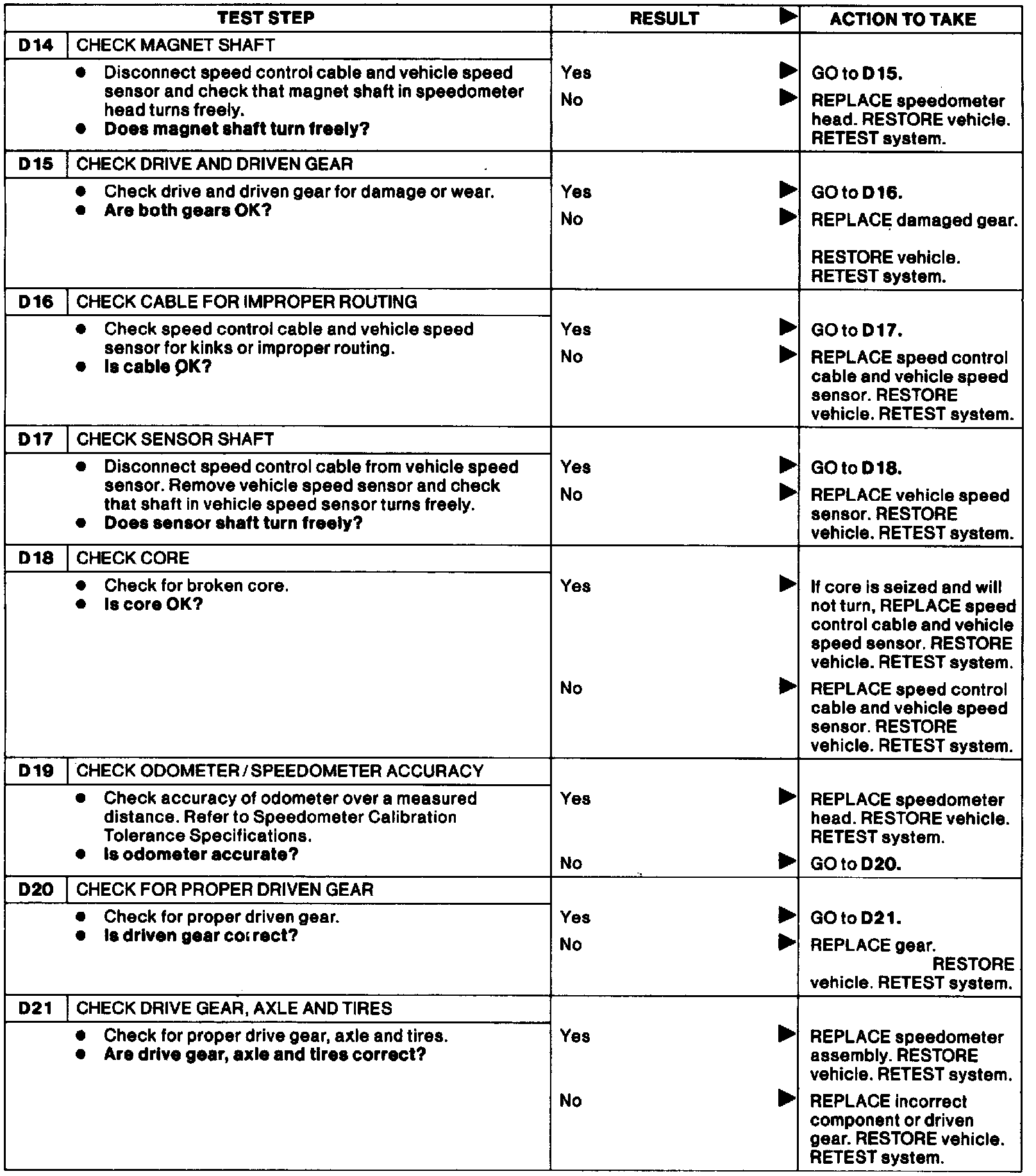

Test D14-D21
