Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Analog Instrument Cluster >> All Warning Indicators Inoperative

All Warning Indicators Inoperative

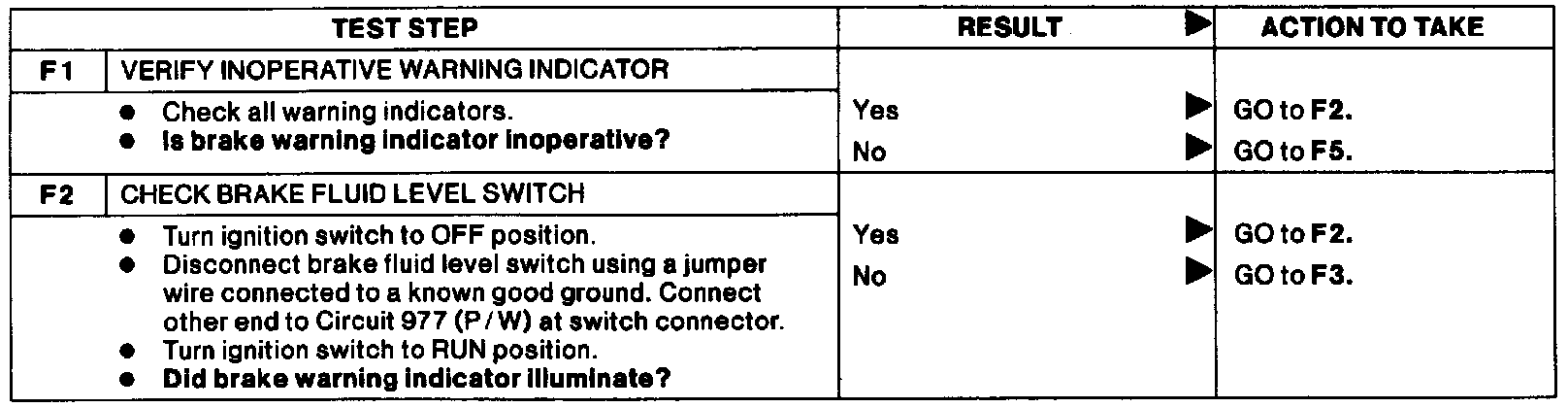

Test F: All Warning Indicators Inoperative:





Test F1-F2

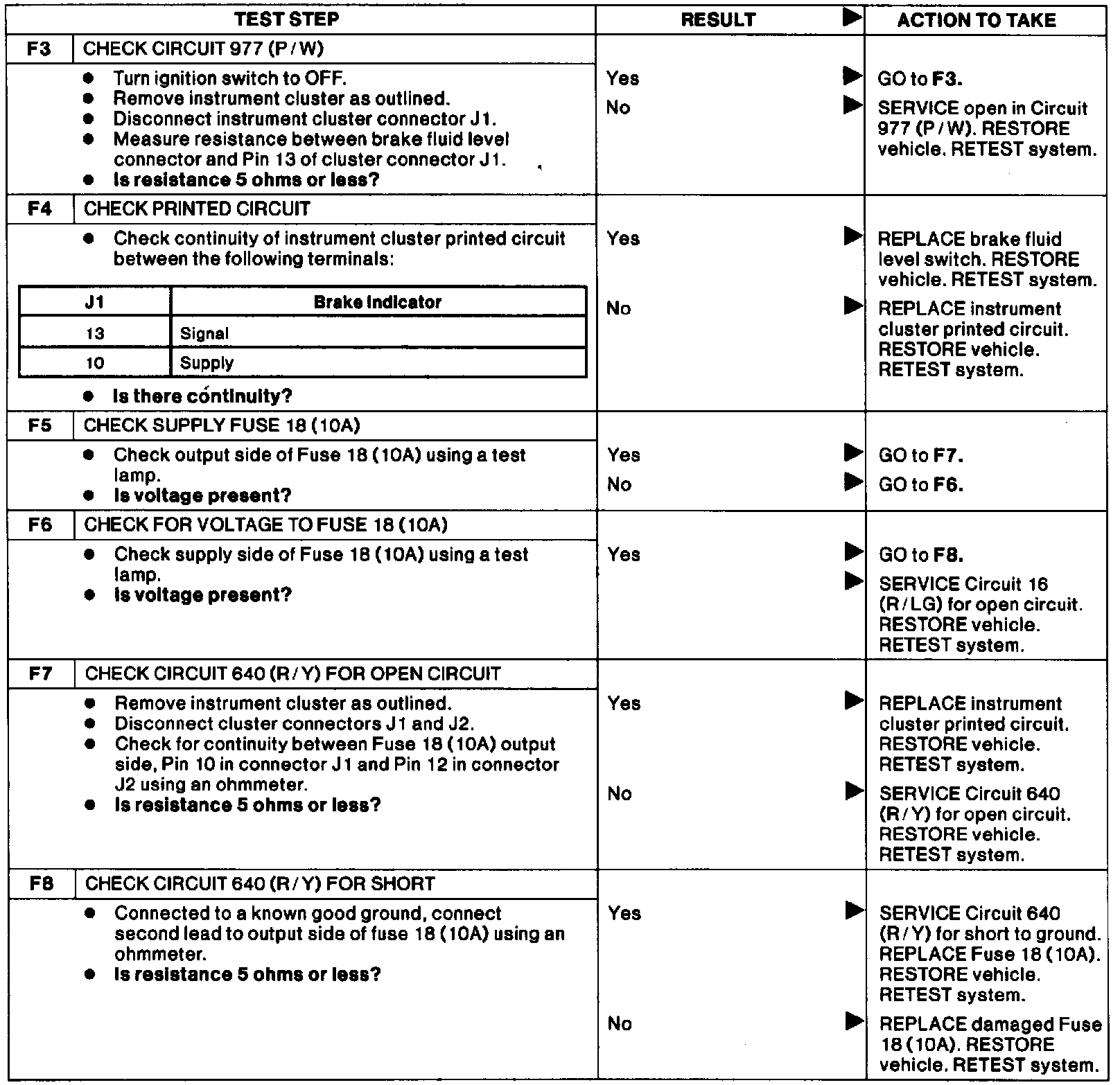

Test F: All Warning Indicators Inoperative:





Test F3-F8
