Electronic Climate Control
>>
EATC System Functional Test Charts
>>
A1-A5
A1-A5

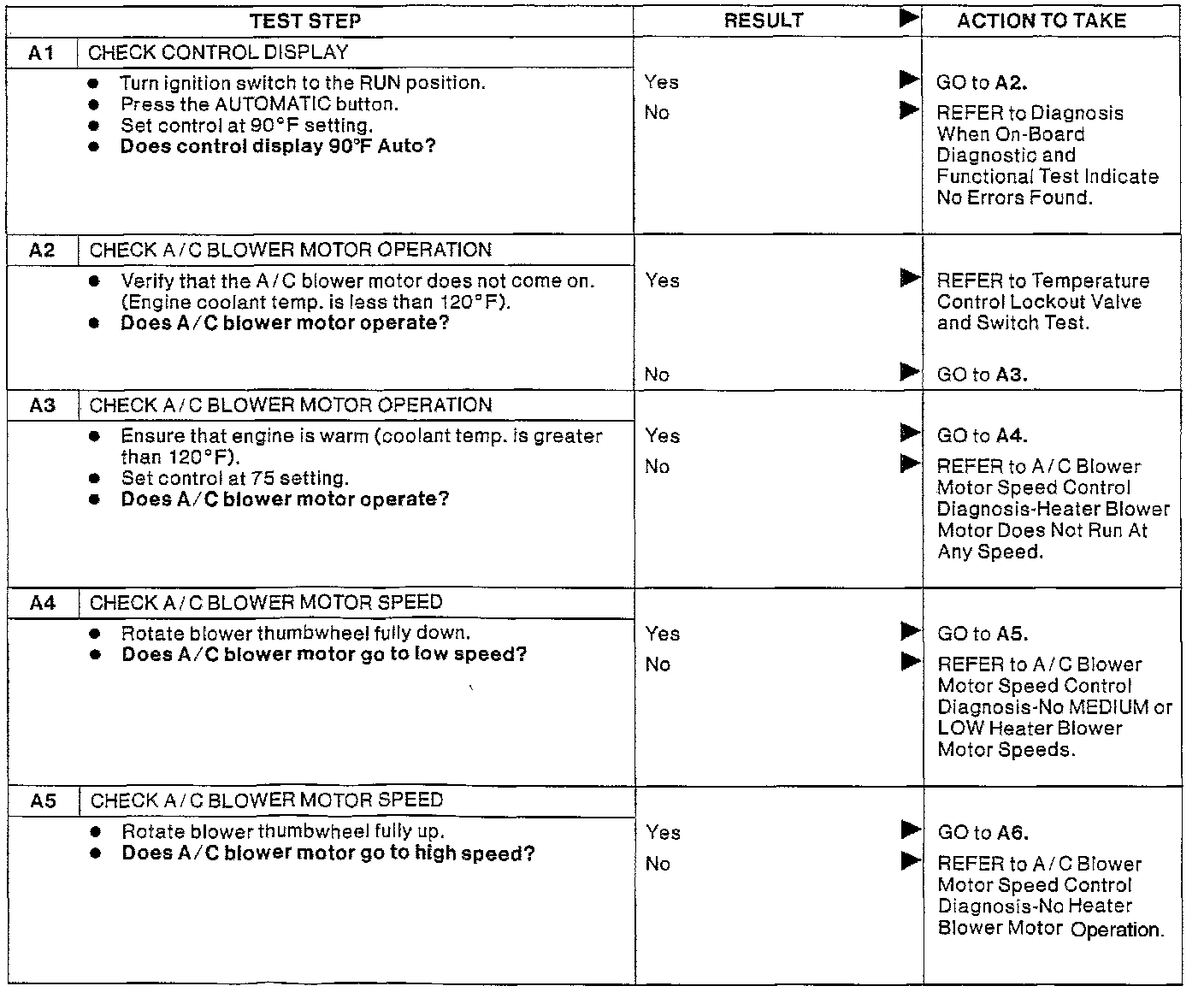

Pinpoint Test A: EATC System Functional Test (A1-A5):
