Identifying R-12 and R-134A Systems

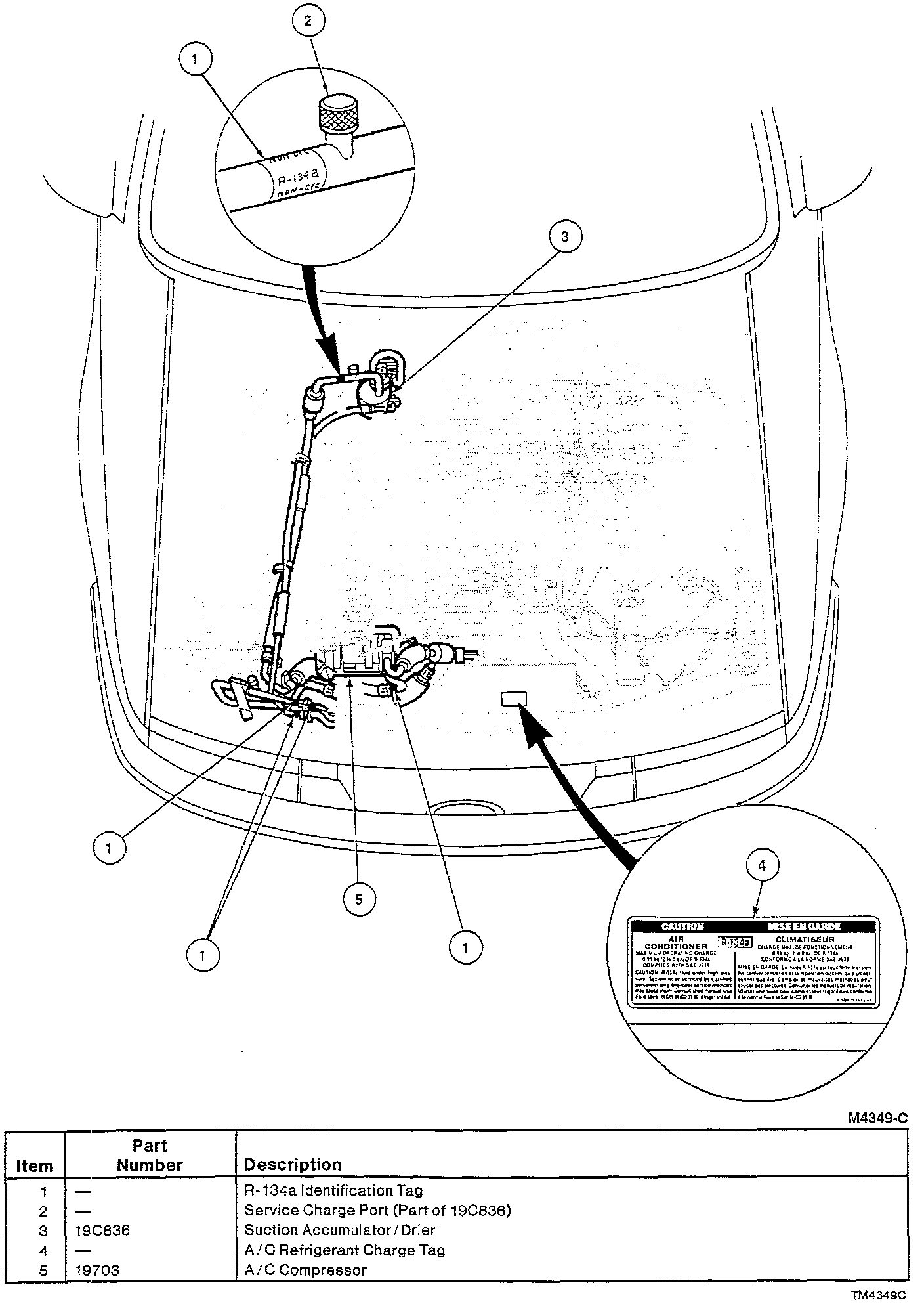

R-134a A/C System Identification And Refrigerant Charge Tag Locations:

This vehicle uses an A/C system that requires the use of R-134a refrigerant.

Note: R-134a requires YN-12 Refrigerant oil.
