Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Expansion Block/Orifice Tube >> Locations

Expansion Block/Orifice Tube: Locations

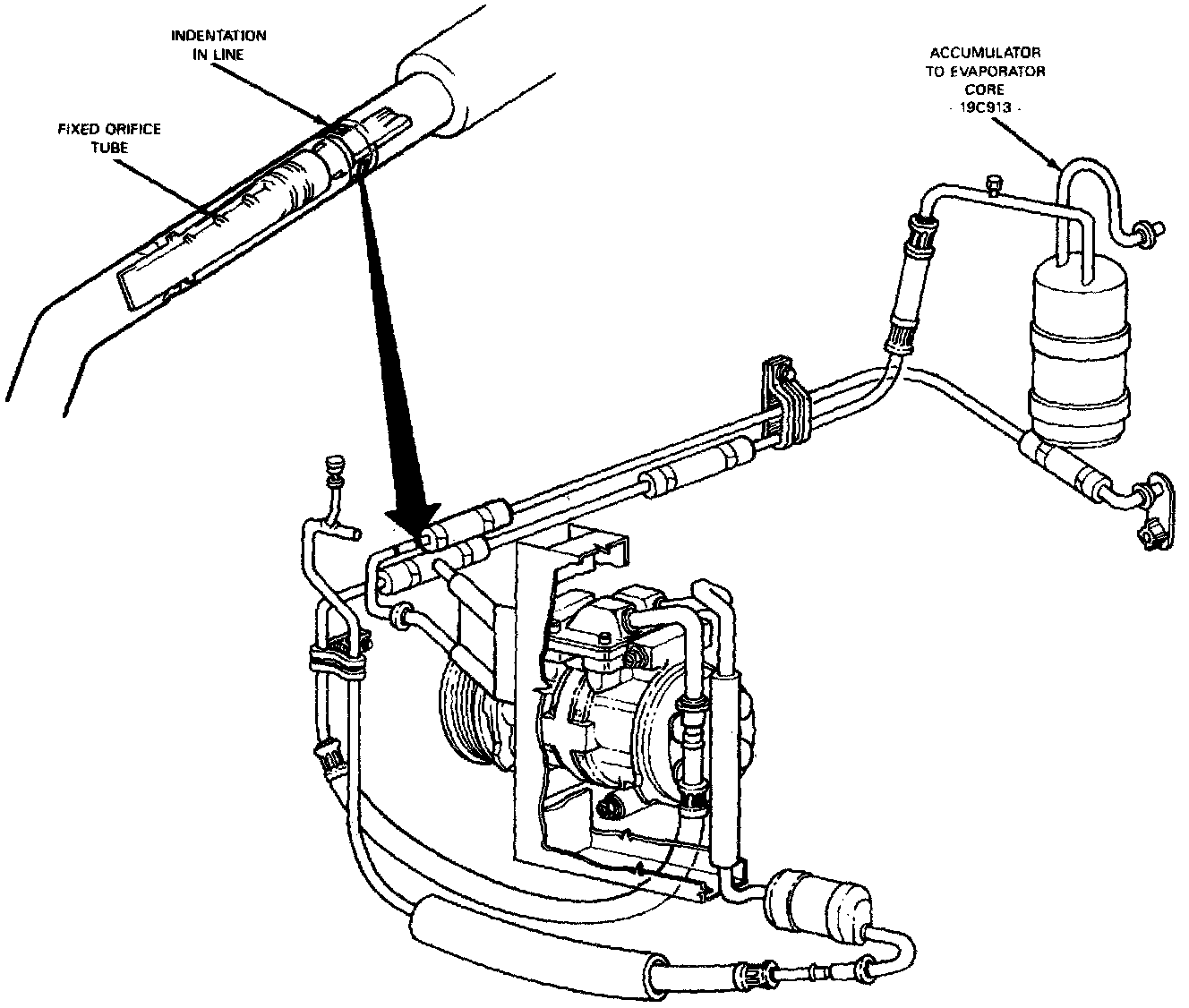

The Evaporator Core Orifice is located in the Condenser to Evaporator line and is integral.
