Analog Instrument Cluster Connector View

Instrument Cluster 14 - Pin Connector:

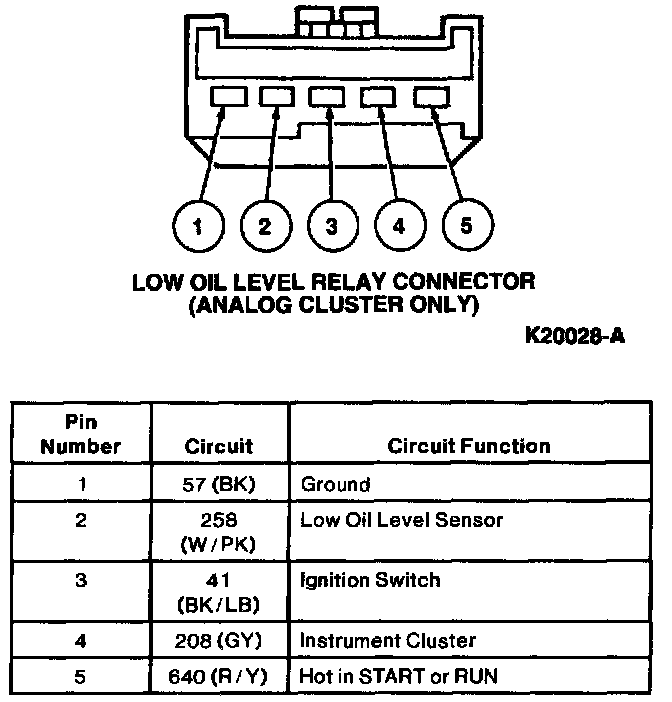

Low Oil Level Relay Connector:
