Engine Torque Strut: Service and Repair

RIGHT SIDE

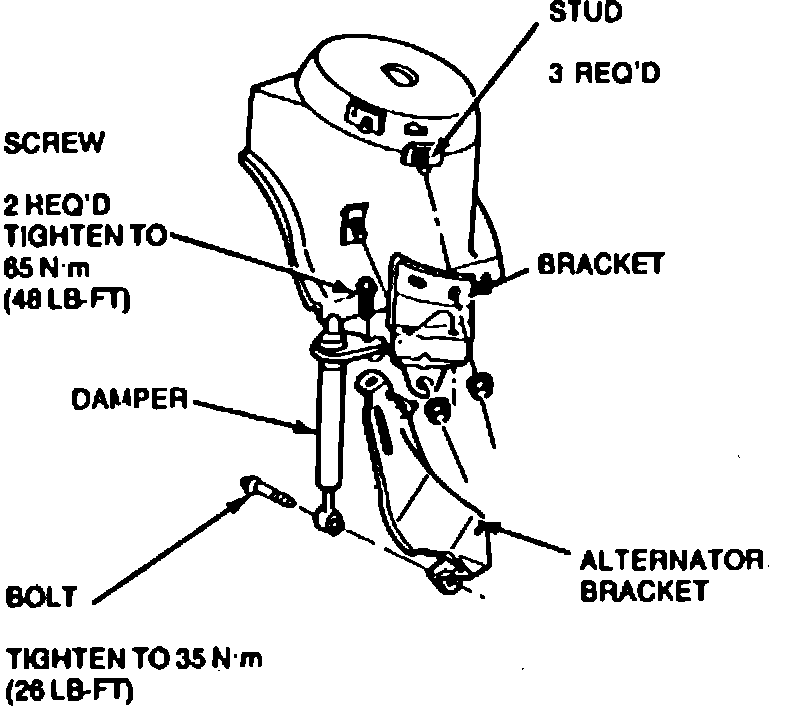

Fig. 5 RH Engine Damper Assembly:

CAUTION: Do not clamp damper tube or piston rod.

1. Remove bolt attaching lower end of damper to engine bracket.
2. Remove upper end of damper to engine bracket attaching bolt.
3. Remove engine damper.
4. Reverse procedure to install.

LEFT SIDE

Fig. 6 LH Engine Damper Assembly:

CAUTION: Do not clamp damper tube or piston rod.

1. Remove speed control servo and bracket assembly.
2. Remove bolt and flag nut attaching lower end of damper to engine mount attaching bracket.
3. Remove bolts attaching upper damper bracket to side rail bracket.
4. Remove engine damper.
5. Reverse procedure to install.
