Connecting Rod: Service and Repair

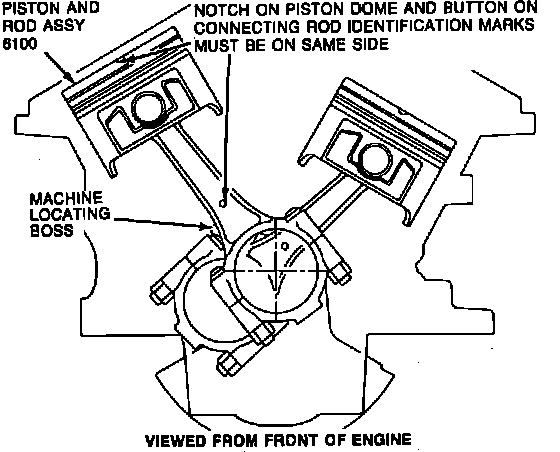

Assemble the rod to the piston with the notch on the piston dome on the same side as the button on the connecting rod identification marks.

Piston & Rod Assembly:

Assemble piston and rod assembly in engine with notch in dome facing front of engine. After installation, inspect connecting rod big end side clearance. Clearance should be 0.006-0.014 inch.
