Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Emission Control Systems >> System Diagram >> Vacuum and Vapor Hose Routing

Vacuum and Vapor Hose Routing

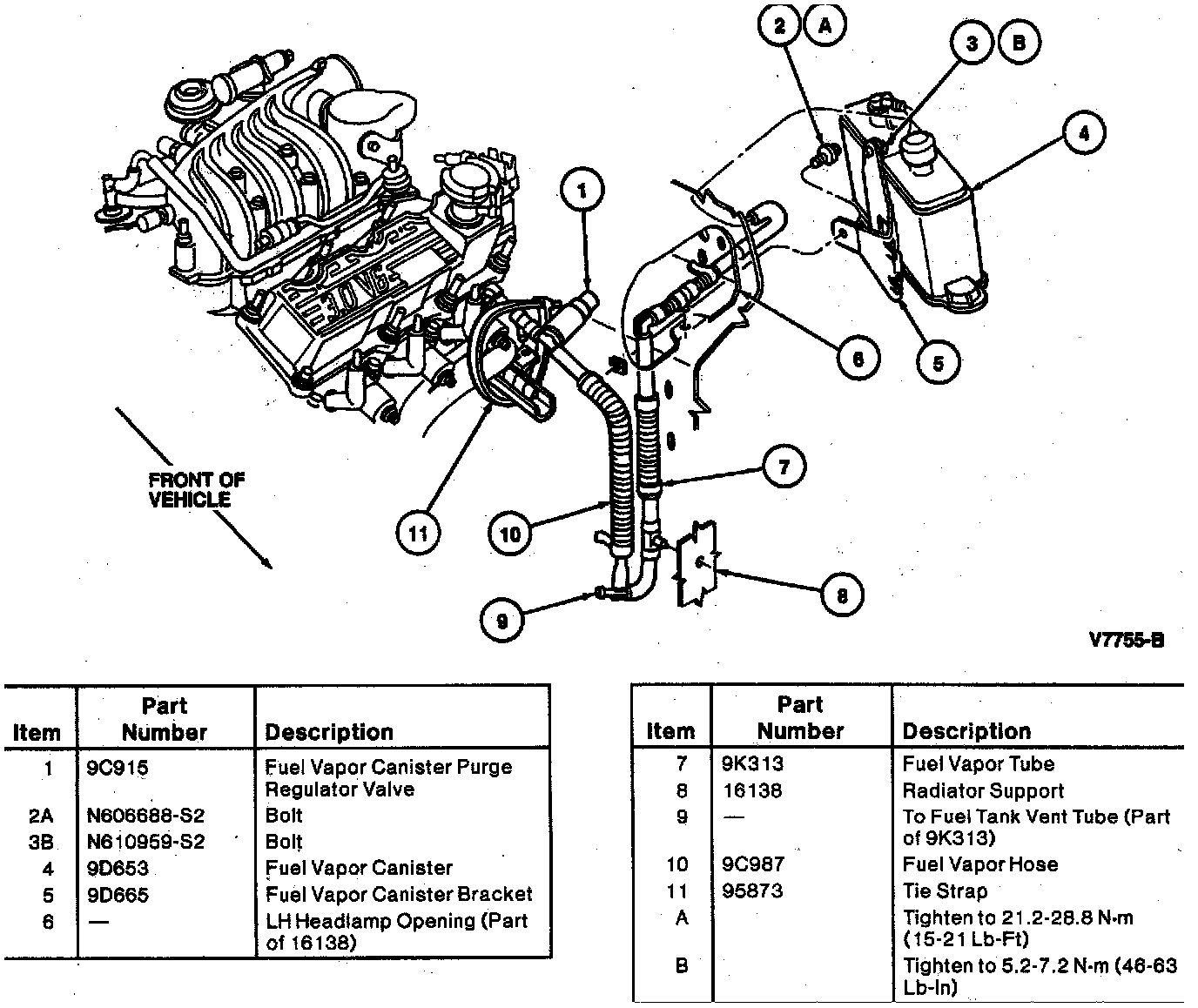

Vapor Canister Venting:
