Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column >> With Console Shift

With Console Shift

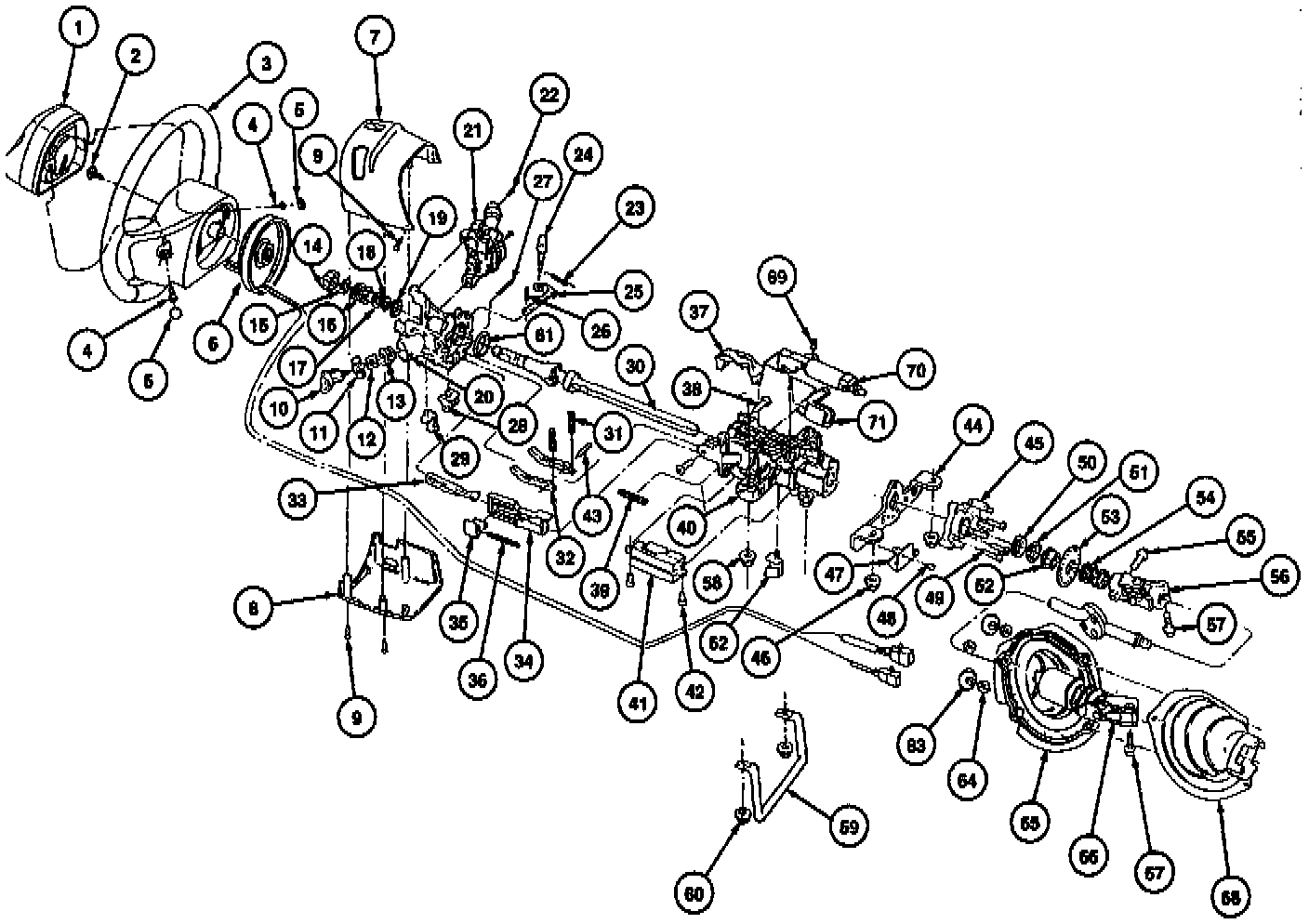

Steering Column (Part 1 Of 2):




Steering Column (Part 2 Of 2):
