Home >> Mercury >> 1994 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> JBL

JBL

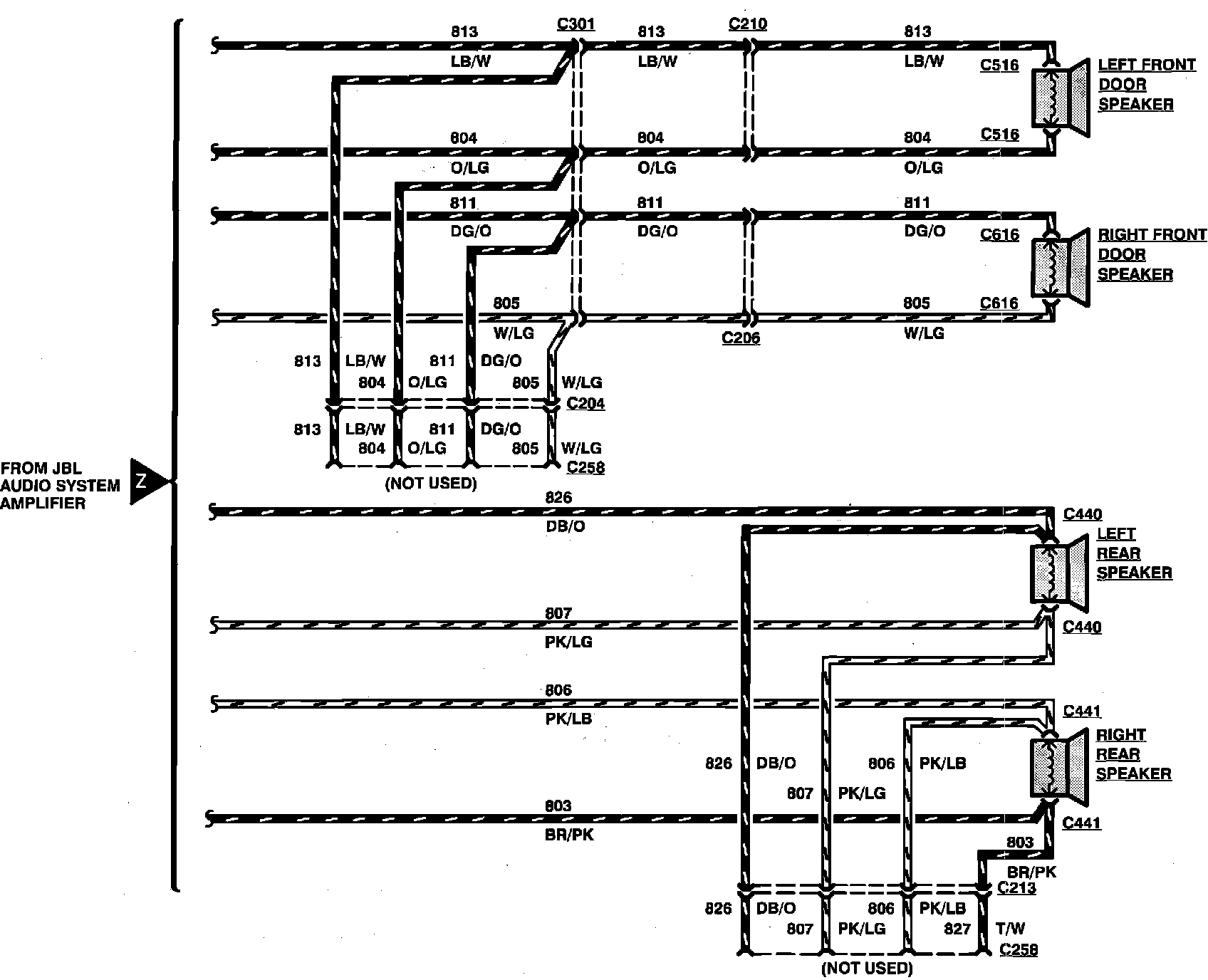

Radio:

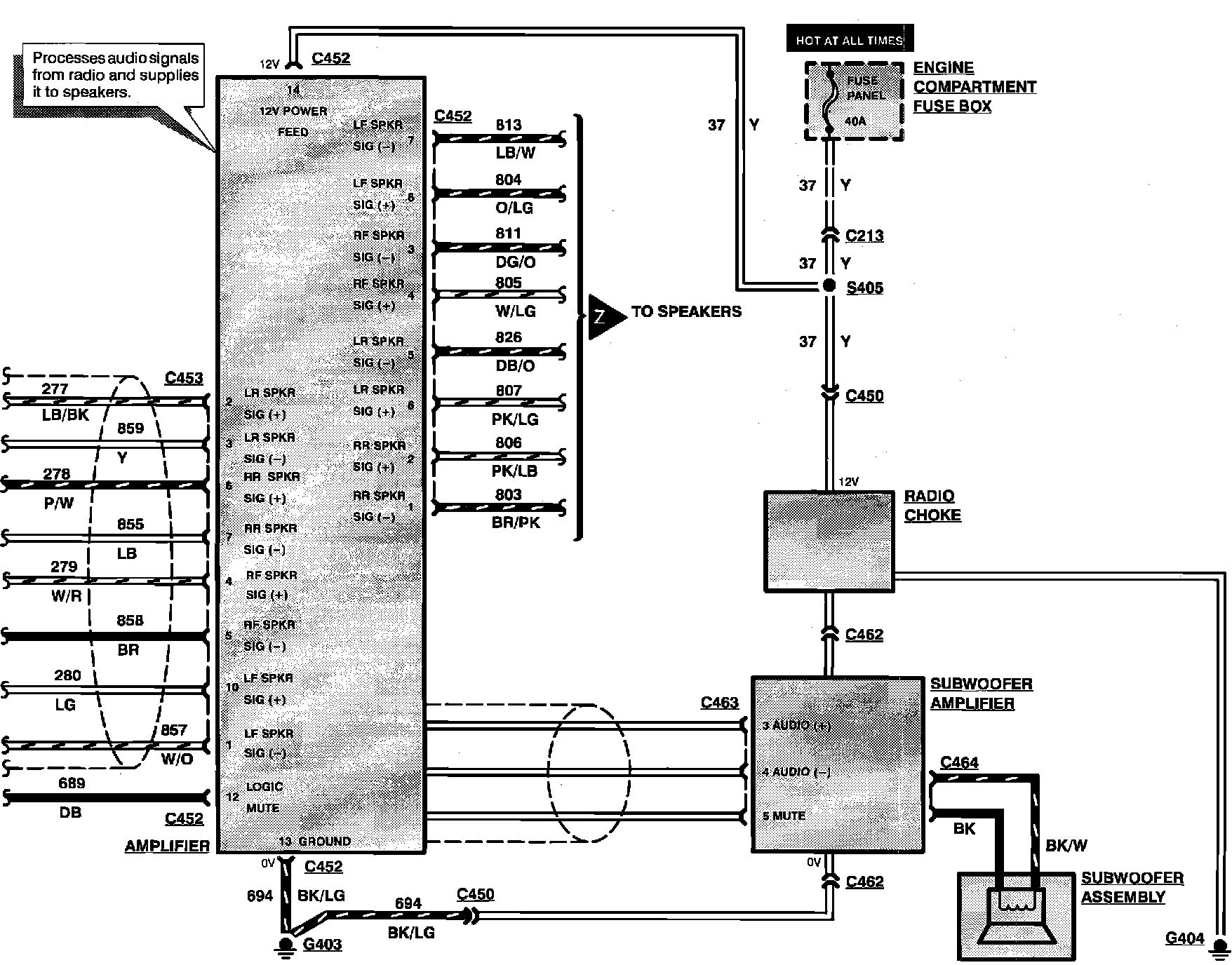

Radio:

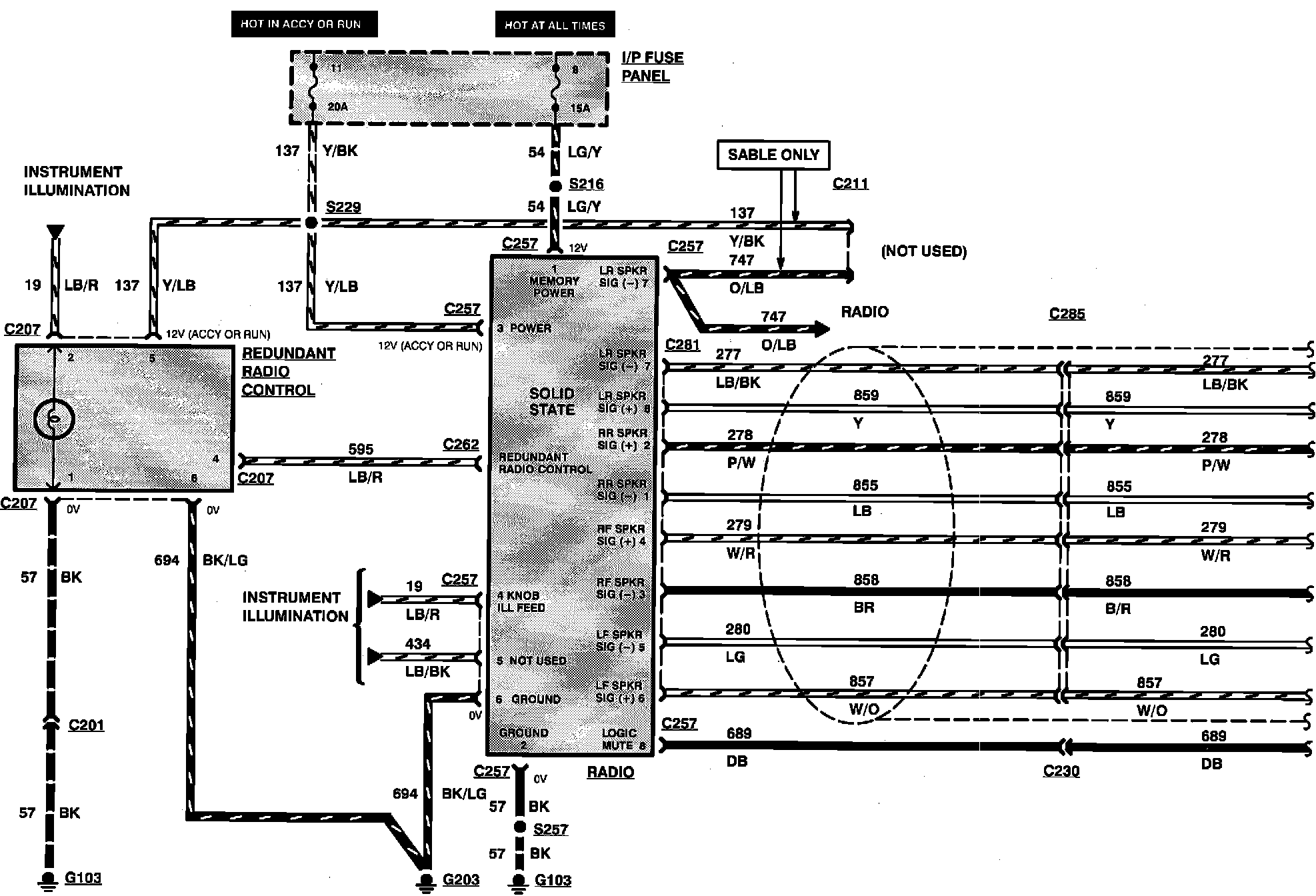

Radio:
