Fuse 10 (PWR LK/SEAT)

Fuse 10 (PWR LK/SEAT) - protects the following circuits:
- Liftgate Release
- Power Door Locks
- Power Seats

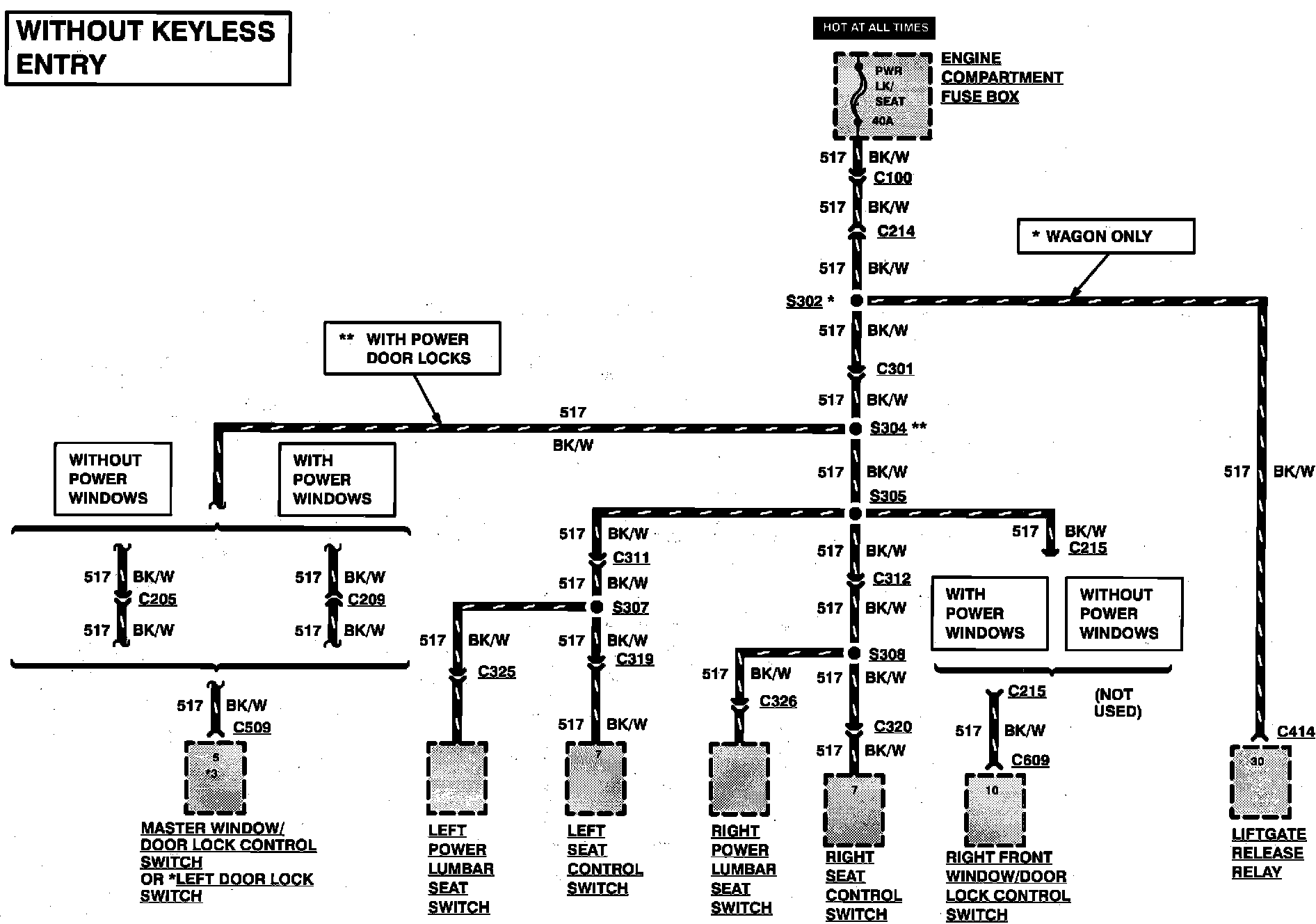

Power Distribution:

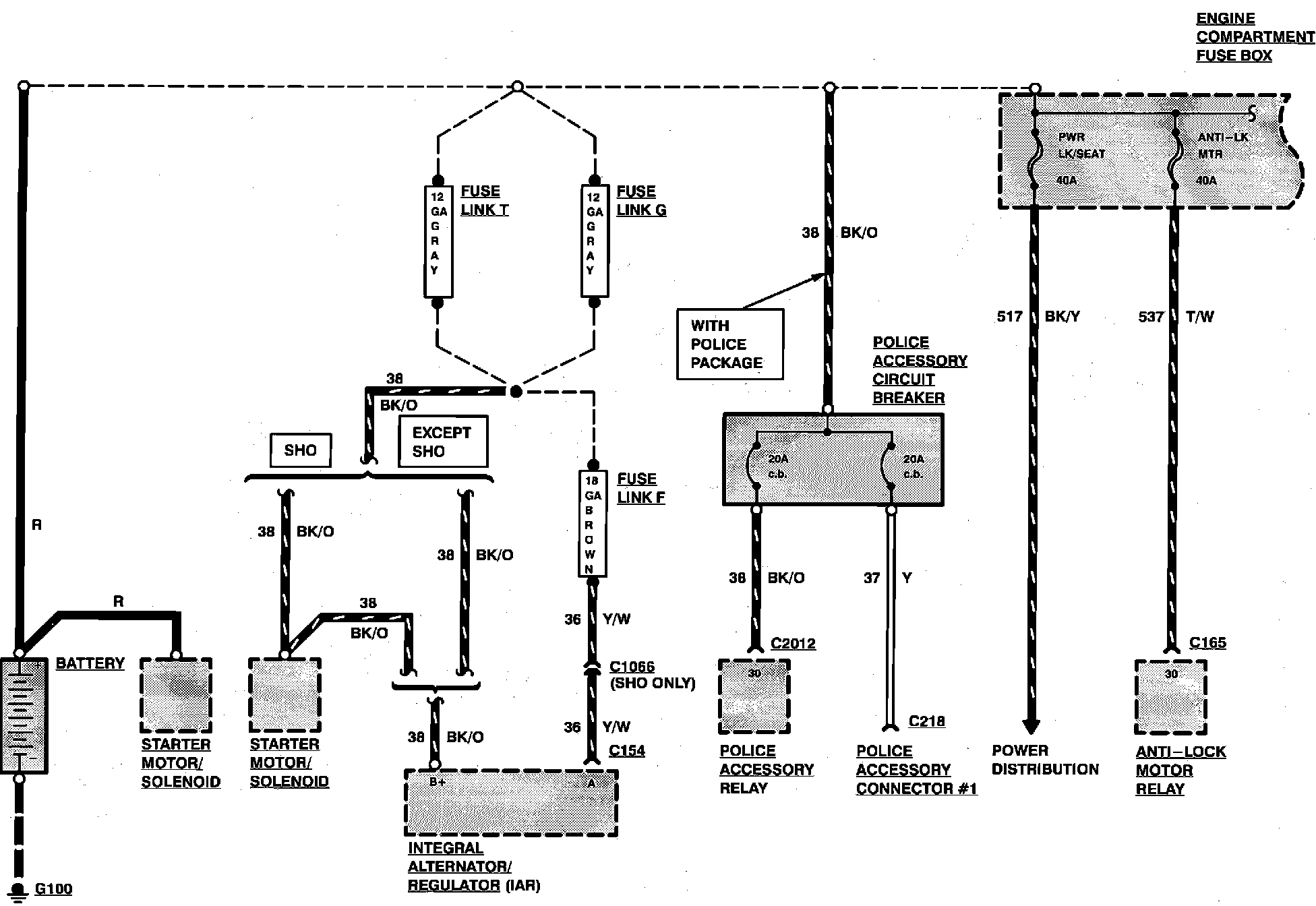

Power Distribution:

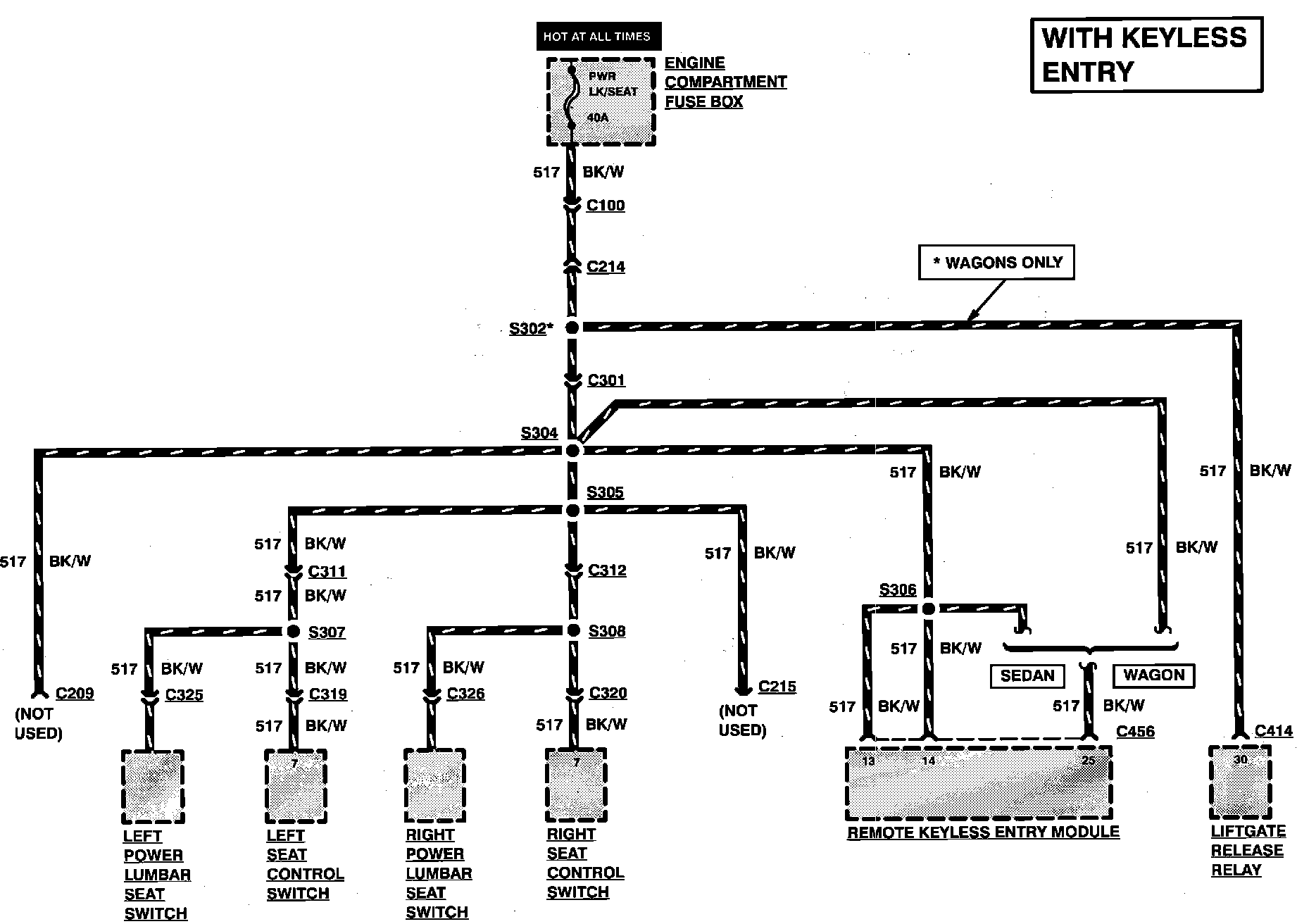

Power Distribution:
